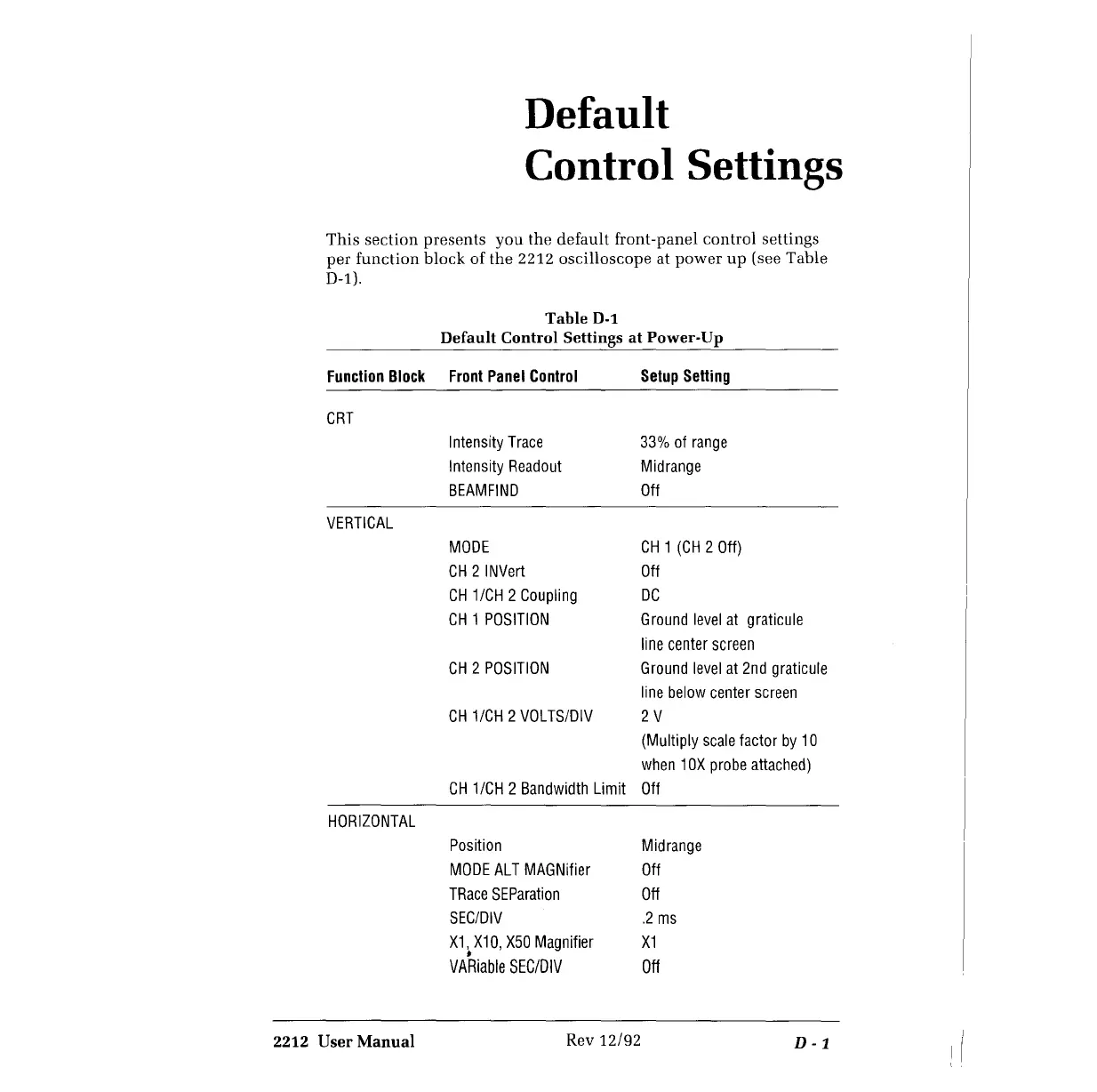

Default
Control
Settings
This
section
presents
you
the
default
front-panel
control
settings
per
function
block
of
the
2212
oscilloscope
at
power
up
(see
Table
D-1).
Table
D-1
Default
Control
Settings
at
Power-Up
Function
Block
Front
Panel
Control
Setup
Setting
CRT
Intensity
Trace
33%
of
range
Intensity
Readout
Midrange
BEAMFIND
Off
VERTICAL
MODE
CH
1
(CH
2
Off)
CH
2
INVert
Off
CH
1/CH
2
Coupling
DC
CH
1
POSITION
Ground
level
at
graticule
line
center
screen
CH
2
POSITION
Ground
level
at
2nd
graticule
line
below
center
screen
CH
1/CH
2
VOLTS/DIV
2V
(Multiply
scale
factor
by
10
when
1
OX
probe
attached)
CH
1/CH
2
Bandwidth
Limit
Off
HORIZONTAL
Position
Midrange
MODE
ALT
MAGNifier
Off
TRace
SEParation
Off
SEC/DIV
.2
ms
X1,
X10,
X50
Magnifier
X1
•
VARiable
SEC/DIV
Off
2212
User
Manual
Rev
12/92
D-1
232
234
