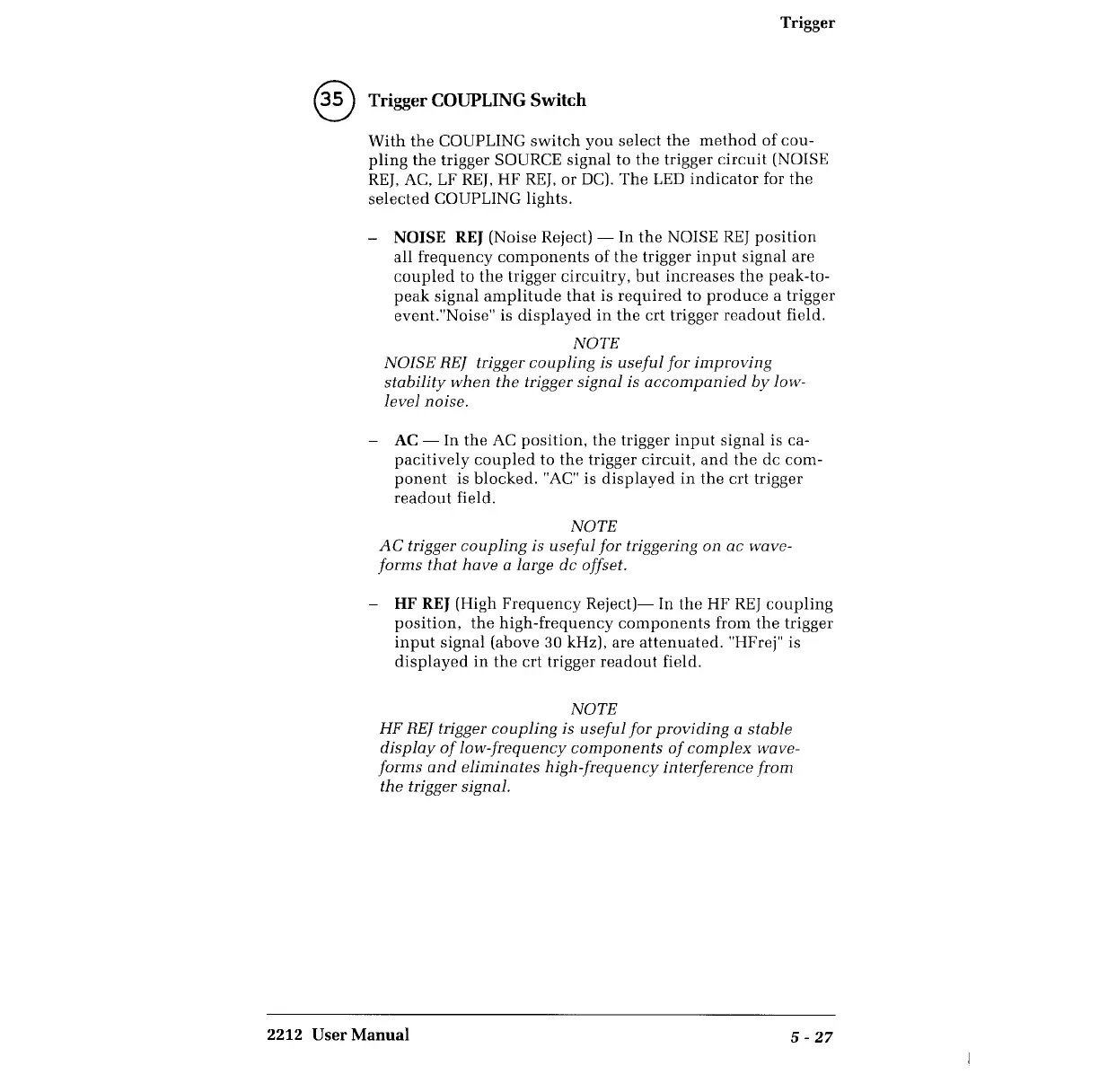

Trigger
® Trigger COUPLING
Switch
With
the
COUPLING
switch
you
select
the
method
of
cou-
pling
the
trigger SOURCE
signal
to
the
trigger
circuit
(NOISE
REJ, AC, LF
REJ,
HF
REJ,
or
DC).
The
LED
indicator
for
the
selected
COUPLING lights.
-
NOISE
REJ
(Noise Reject) -
In
the
NOISE
REJ
position
all
frequency
components
of
the
trigger
input
signal
are
coupled
to
the
trigger
circuitry,
but
increases
the
peak-to-
peak
signal
amplitude
that
is
required
to
produce
a trigger
event."Noise" is
displayed
in
the
crt
trigger
readout
field.
NOTE
NOISE
REJ trigger
coupling
is
useful
for
improving
stability
when
the
trigger signal is
accompanied
by
low-
level
noise.
-
AC
-
In
the
AC
position,
the
trigger
input
signal
is ca-
pacitively
coupled
to
the
trigger
circuit,
and
the
de
com-
ponent
is
blocked.
"AC" is
displayed
in
the
crt
trigger
readout
field.
NOTE
AC
trigger
coupling
is
useful
for triggering
on
ac wave-
forms
that
have
a large de offset.
-
HF
REJ
(High
Frequency
Reject)-
In
the
HF
REJ
coupling
position,
the
high-frequency
components
from
the
trigger
input
signal
(above 30 kHz), are
attenuated.
"HFrej" is
displayed
in
the
crt
trigger
readout
field.
NOTE
HF REJ trigger
coupling
is
useful
for
providing
a stable
display
of
low-frequency
components
of
complex
wave-
forms
and
eliminates
high-frequency
interference from
the
trigger signal.
2212
User Manual
5 -
27
