Tektronix 2212 User Manual

Performance Tests

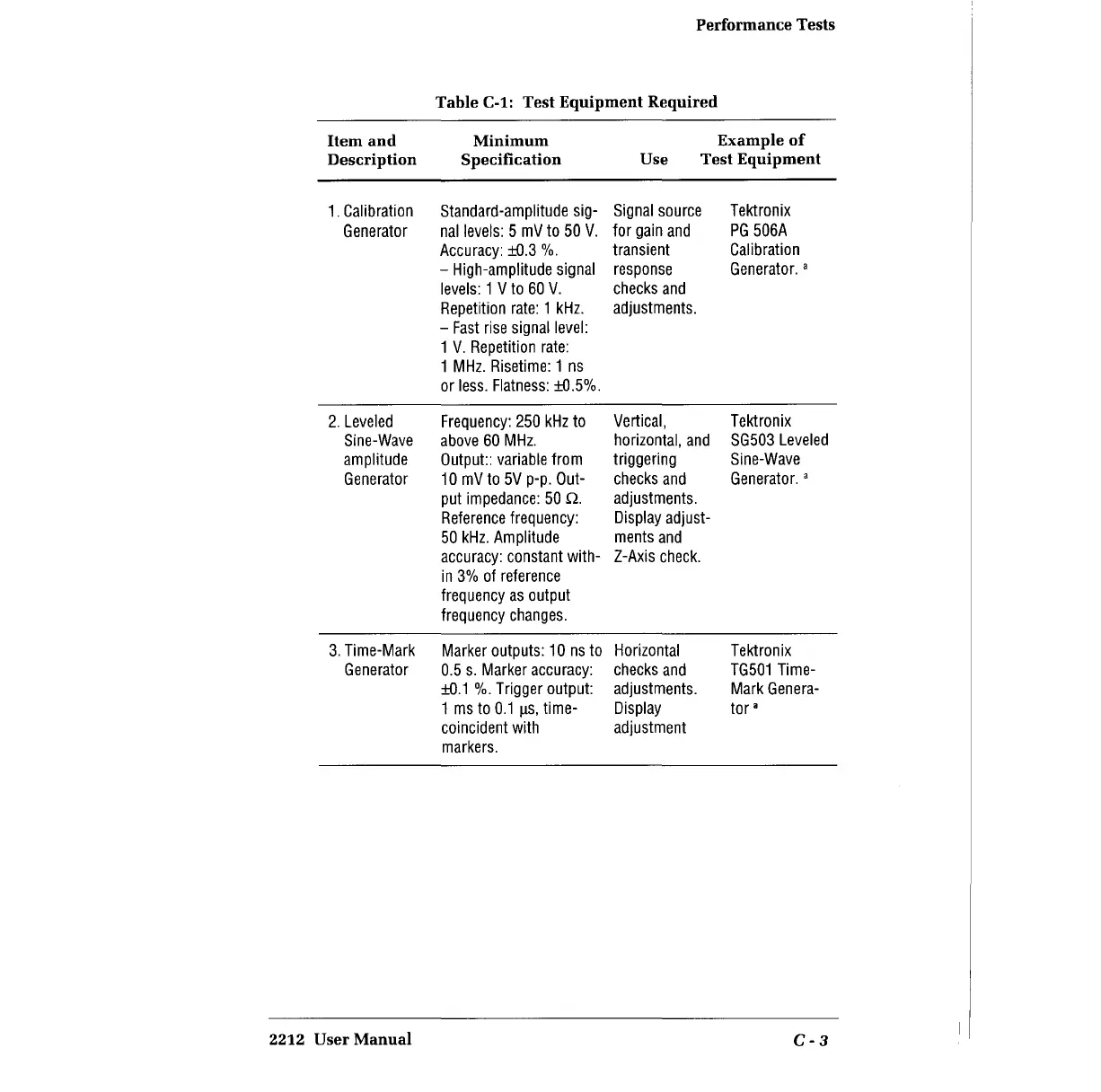

Table C-1: Test Equipment Required
Item and Minimum
Example of
Description Specification
Use Test Equipment
1. Calibration Standard-amplitude sig-
Signal source Tektronix
Generator
nal levels: 5 mV to 50 V.
for gain and PG 506A
Accuracy: ±0.3 %.
transient Calibration
- High-amplitude signal response
Generator. •
levels: 1 V to 60 V. checks and
Repetition rate: 1 kHz. adjustments.
- Fast rise signal level:
1 V. Repetition rate:
1 MHz. Risetime: 1 ns
or less. Flatness: ±0.5%.
2. Leveled Frequency: 250 kHz to
Vertical, Tektronix
Sine-Wave above 60 MHz.
horizontal, and SG503 Leveled
amplitude Output:: variable from
triggering Sine-Wave
Generator 10 mV to 5V p-p. Out- checks and
Generator. •
put impedance: 50 n. adjustments.
Reference frequency:
Display adjust-
50 kHz. Amplitude
ments and
accuracy: constant with- Z-Axis check.
in 3% of reference
frequency as output
frequency changes.
3. Time-Mark Marker outputs: 10 ns to Horizontal Tektronix
Generator 0.5 s. Marker accuracy: checks and TG501 Time-
±0.1 %. Trigger output:
adjustments. Mark Genera-
1 ms to 0.1 µs, time-
Display
tor a
coincident with
adjustment
markers.
2212 User Manual
C-3
