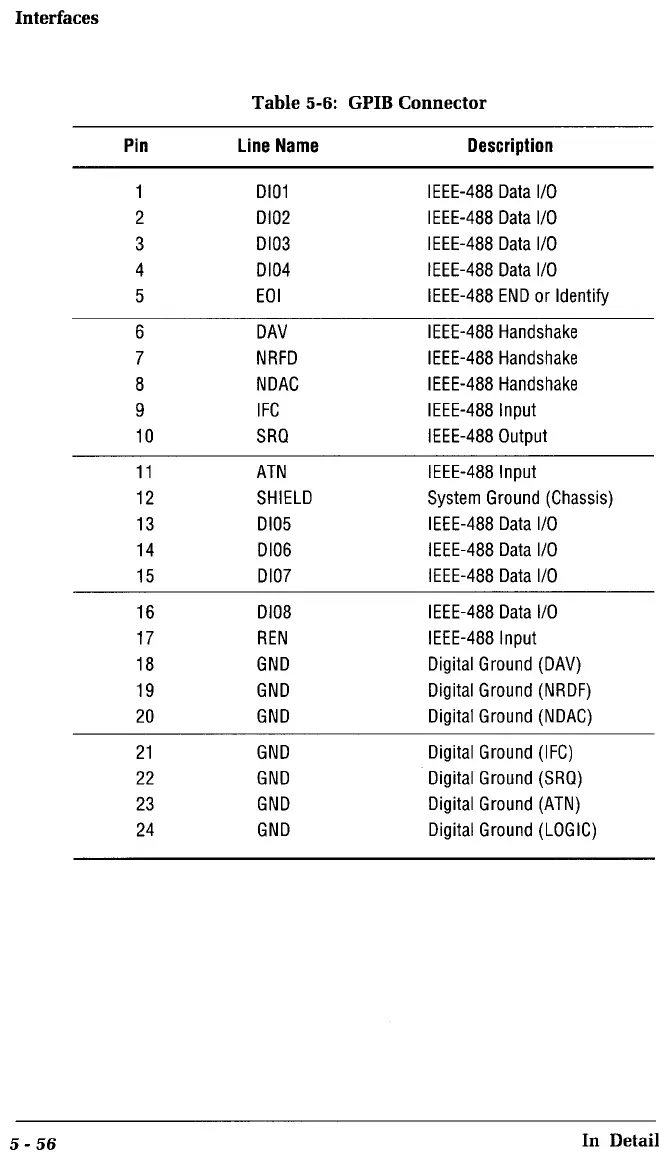

Interfaces
Table
5-6:
GPIB
Connector
Pin
Line
Name
Description
DI01
IEEE-488
Data
1/0
2
DI02
IEEE-488
Data
1/0
3
DI03
IEEE-488
Data
1/0
4
DI04
IEEE-488
Data
1/0
5
EOI
IEEE-488
END
or
Identify
6
DAV
IEEE-488
Handshake
7
NRFD
IEEE-488
Handshake
8
NDAC
IEEE-488
Handshake
9
IFC
IEEE-488
Input
10
SRO
IEEE-488
Output
11
ATN
IEEE-488
Input
12
SHIELD
System
Ground
(Chassis)
13
DI05
IEEE-488
Data
1/0
14
DI06
IEEE-488
Data
1/0
15
Dl07
IEEE-488
Data
1/0
16
DI08
IEEE-488
Data
1/0
17
REN
IEEE-488
Input
18
GND
Digital
Ground
(DAV)
19
GND
Digital
Ground
(NRDF)
20
GND
Digital
Ground
(NDAC)
21
GND
Digital
Ground
(IFC)
22
GND
Digital
Ground
(SRO)
23
GND
Digital
Ground
(ATN)
24
GND
Digital
Ground
(LOGIC)
5-
56
In
Detail
141
143
