Typical Characteristics

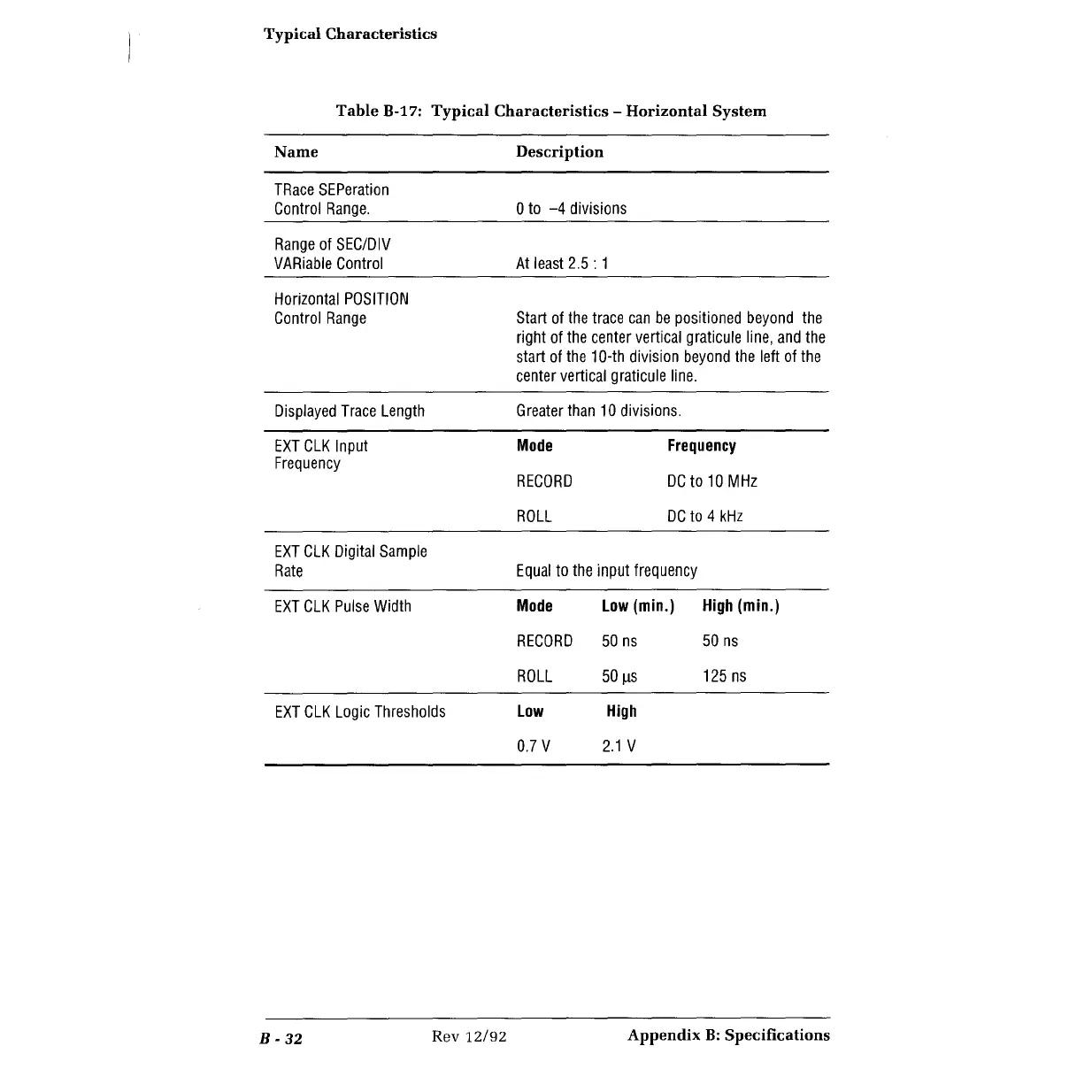

Table B-17: Typical Characteristics - Horizontal System
Name
TRace SEPeration
Control Range.
Range of SEC/DIV
VARiable Control
Horizontal POSITION
Control Range
Displayed Trace Length
EXT CLK Input
Frequency
EXT CLK Digital Sample
Rate
EXT CLK Pulse Width
EXT CLK Logic Thresholds
B-32
Rev 12/92
Description
0 to -4 divisions
At least 2.5 : 1
Start of the trace can be positioned beyond the
right of the center vertical graticule line, and the
start of the 10-th division beyond the left of the
center vertical graticule line.
Greater than 10 divisions.
Mode
RECORD
ROLL
Frequency
DC to 10 MHz
DC to 4 kHz
Equal to the input frequency
Mode
Low (min.) High (min.)
RECORD 50 ns 50 ns
ROLL 50 µs 125 ns
Low
High
0.7 V
2.1 V
Appendix B: Specifications
