Typical Characteristics

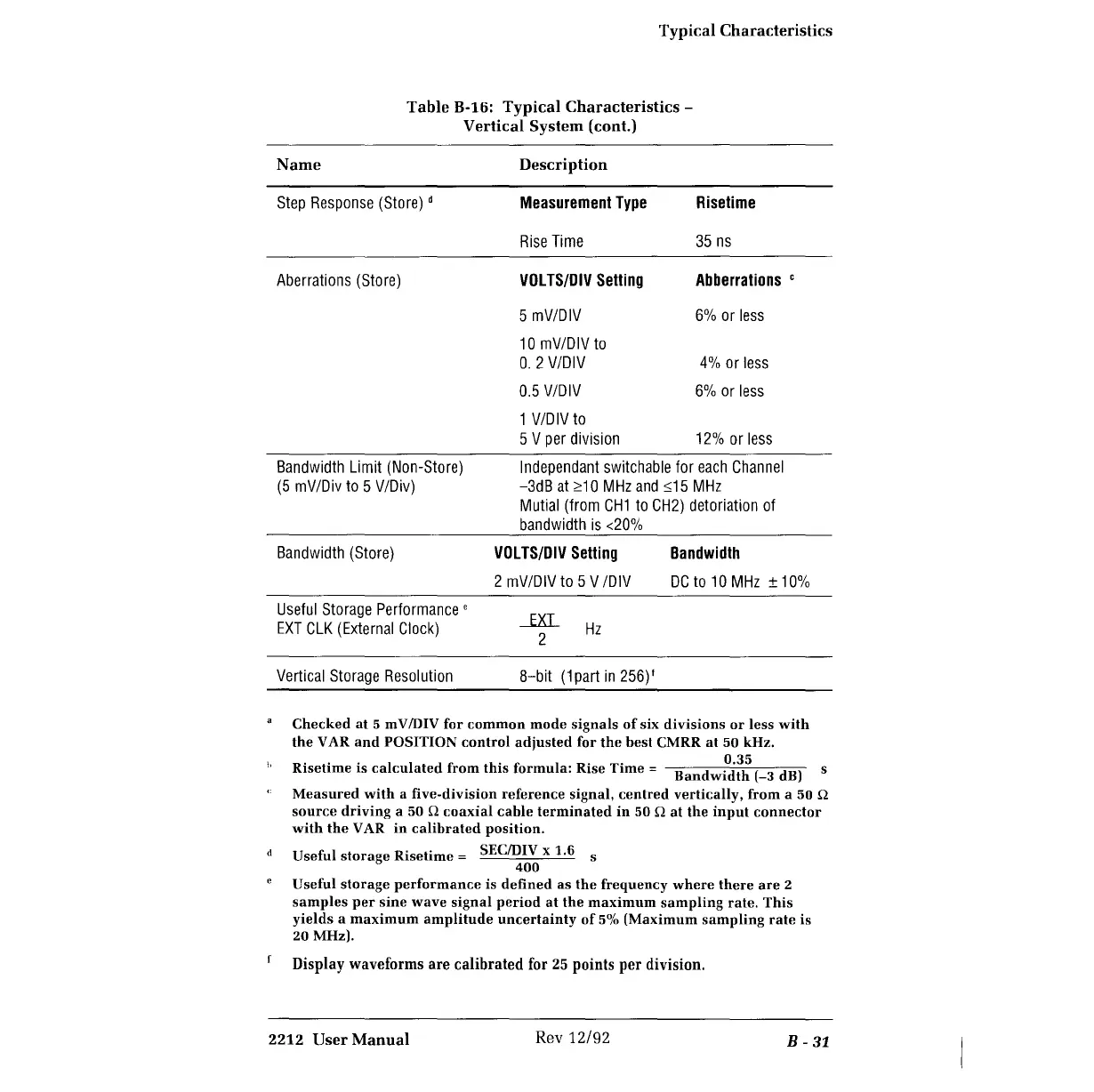

Table B-16: Typical Characteristics -
Vertical System (cont.)
Name
Step Response (Store) d
Aberrations (Store)
Bandwidth Limit (Non-Store)
(5 mV/Div to 5 V/Div)
Bandwidth (Store)
Useful Storage Performance '
EXT CLK (External Clock)
Vertical Storage Resolution
Description
Measurement Type
Risetime
Rise Time
35 ns
VOL TS/DIV Setting Abberrations '
5 mV/DIV
6% or less
10mV/DIVto
0. 2 V/DIV 4% or less
0.5 V/DIV 6% or less
1 V/DIV to
5 V per division 12% or less
lndependant switchable for each Channel
-3dB at ~10 MHz and s15 MHz
Mutial (from CH1 to CH2) detoriation of
bandwidth is <20%
VOLTS/DIV Setting
2 mV/DIV to 5 V /DIV
__EXI..
2
Hz
8-bit (1 part in 256)
1
Bandwidth
DCto10MHz ±10%
Checked at 5 mV/DIV for common mode signals of six divisions or less with
the VAR and POSITION control adjusted for the best CMRR at 50 kHz.
Risetime is calculated from this formula: Rise Time = Bandw~:i (-J dB) s
Measured with a five-division reference signal, centred vertically, from a 50 Q
source driving a 50 Q coaxial cable terminated in 50 Q at the input connector
with the VAR in calibrated position.
Useful storage Risetime = SEC/DIV x 1.6 s
400
Useful storage performance is defined as the frequency where there are 2
samples per sine wave signal period at the maximum sampling rate. This
yields a maximum amplitude uncertainty of 5% (Maximum sampling rate is
20 MHz).
Display waveforms are calibrated for 25 points per division.
2212 User Manual
Rev 12/92
B - 31
