Tektronix 2212 User Manual

Performance Tests

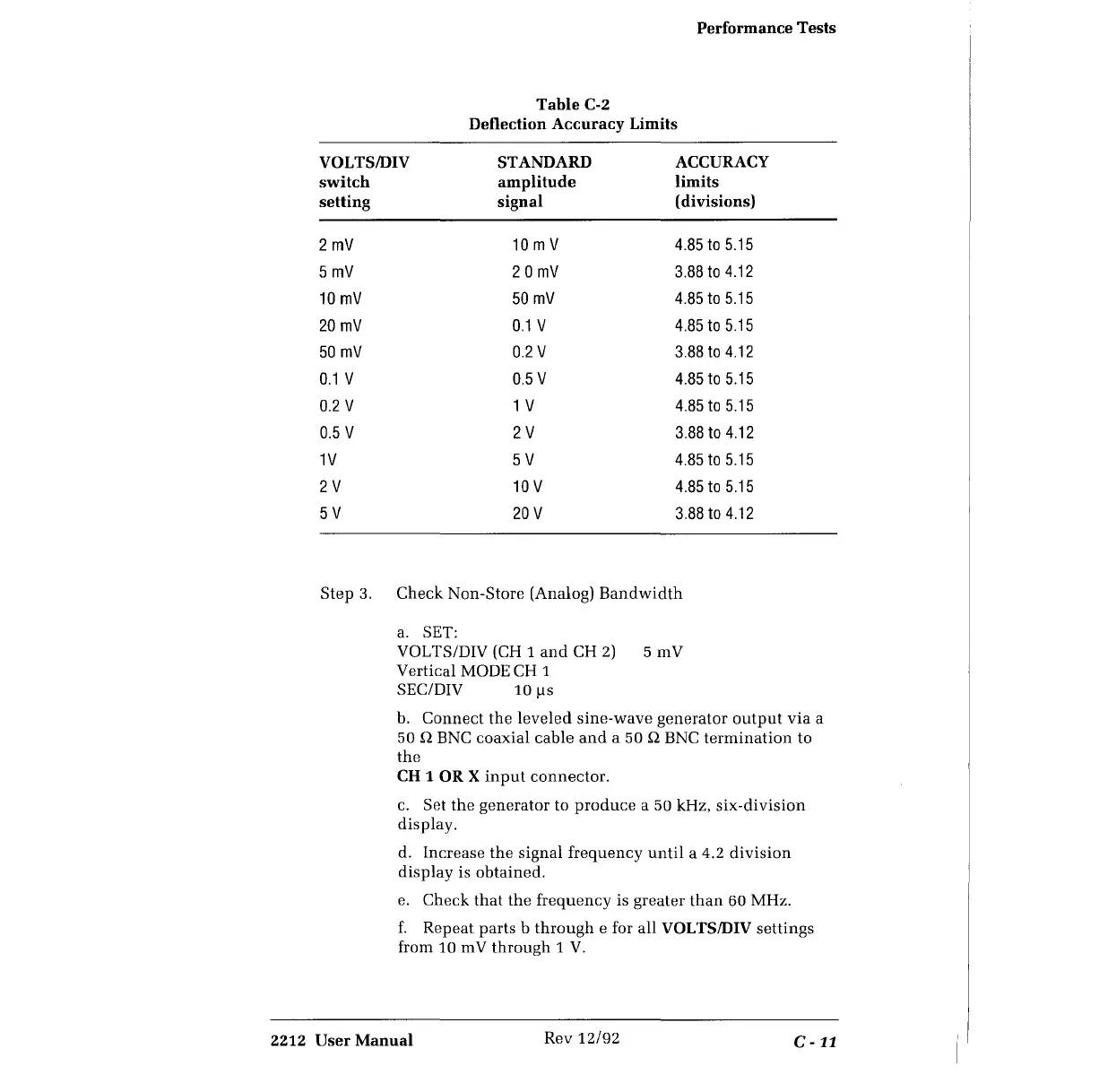

Table C-2
Deflection Accuracy Limits
VOLTS/DIV STANDARD
ACCURACY
switch amplitude
limits
setting signal
(divisions)
2 mV
10 m V 4.85 to 5.15
5 mV 2 0 mV
3.88 to 4.12
10 mV
50 mV 4.85 to 5.15
20 mV 0.1 V
4.85to5.15
50 mV 0.2 V 3.88 to 4.12
0.1 V 0.5 V
4.85to5.15
0.2 V 1 V 4.85 to 5.15
0.5 V 2V 3.88 to 4.12
1V 5V
4.85 to 5.15
2V 10V 4.85 to 5.15
5V
20 V 3.88 to 4.12
Step 3. Check Non-Store (Analog) Bandwidth
a. SET:
VOLTS/DIV (CH 1 and CH 2) 5 mV
Vertical MODE CH 1
SEC/DIV 10 µs
b. Connect the leveled sine-wave generator output via a
50 Q BNC coaxial cable and a 50 Q BNC termination to
the
CH 1 OR X input connector.
c. Set the generator to produce a 50 kHz, six-division
display.
d. Increase the signal frequency until a 4.2 division
display is obtained.
e. Check that the frequency is greater than 60 MHz.
f. Repeat parts b through e for all VOLTS/DIV settings
from 10 mV through 1 V.
2212 User Manual
Rev 12/92
C-11
