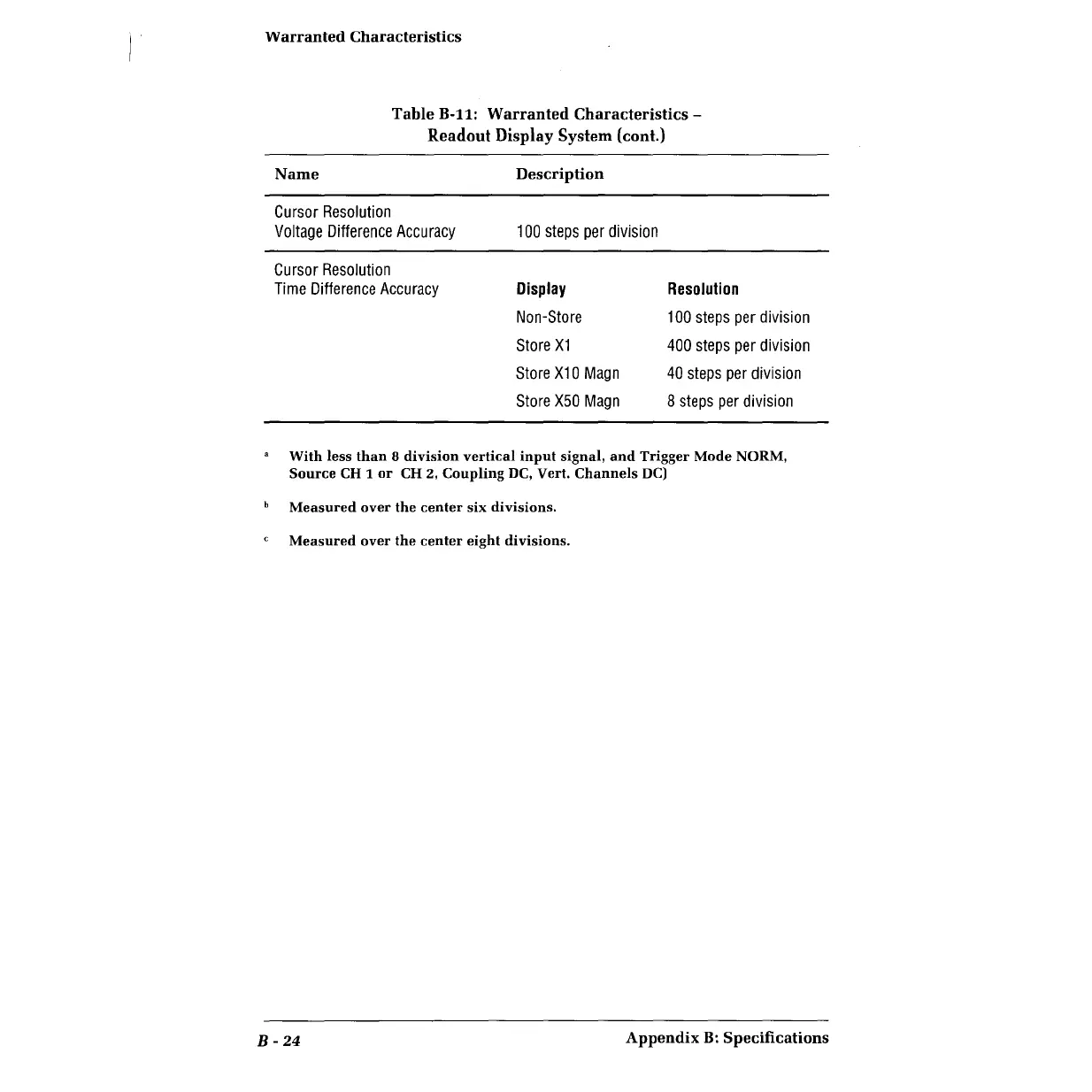

Warranted
Characteristics
Table
B-11:
Warranted
Characteristics
-
Readout
Display
System
(cont.)
Name
Description
Cursor
Resolution
Voltage
Difference
Accuracy
100
steps
per
division
Cursor
Resolution
Time
Difference
Accuracy
Display
Non-Store
Store
X1
Store
X10
Magn
Store
X50
Magn
Resolution
100
steps
per
division
400
steps
per
division
40
steps
per
division
8
steps
per
division
•
With
less
than
8
division
vertical
input
signal,
and
Trigger
Mode
NORM,
Source
CH
1
or
CH
2,
Coupling
DC,
Vert.
Channels
DC)
Measured
over
the
center
six
divisions.
Measured
over
the
center
eight
divisions.
B-24
Appendix
B:
Specifications
191
193
