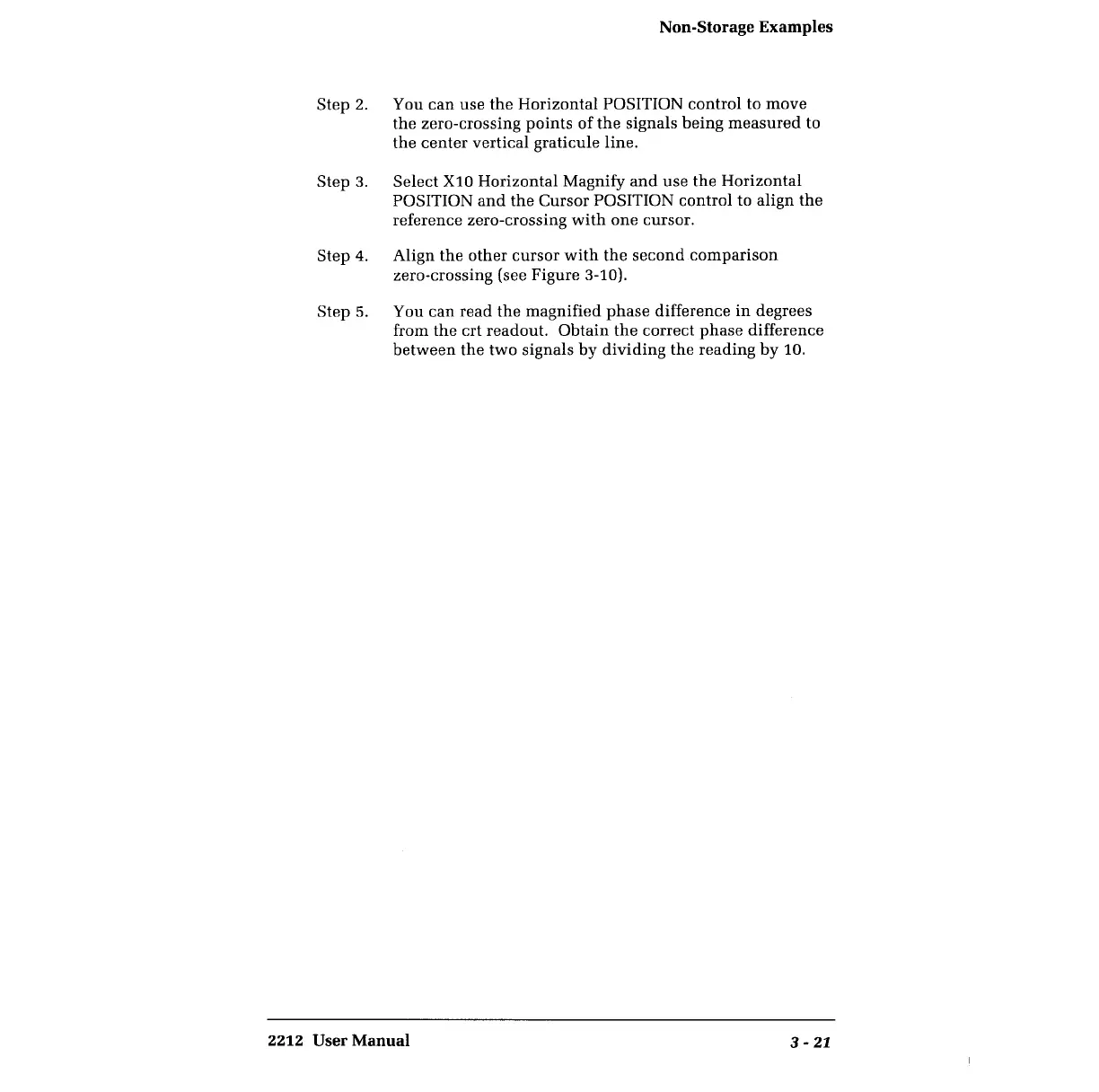

Non-Storage Examples
Step 2. You can use the Horizontal POSITION control to move
the zero-crossing points of the signals being measured to
the center vertical graticule line.
Step 3. Select XlO Horizontal Magnify and use the Horizontal
POSITION and the Cursor POSITION control to align the
reference zero-crossing with one cursor.
Step 4. Align the other cursor with the second comparison
zero-crossing (see Figure 3-10).
Step 5. You can read the magnified phase difference in degrees
from the crt readout. Obtain the correct phase difference
between the two signals by dividing the reading by 10.
2212 User Manual
3- 21
