Tektronix 2212 User Manual

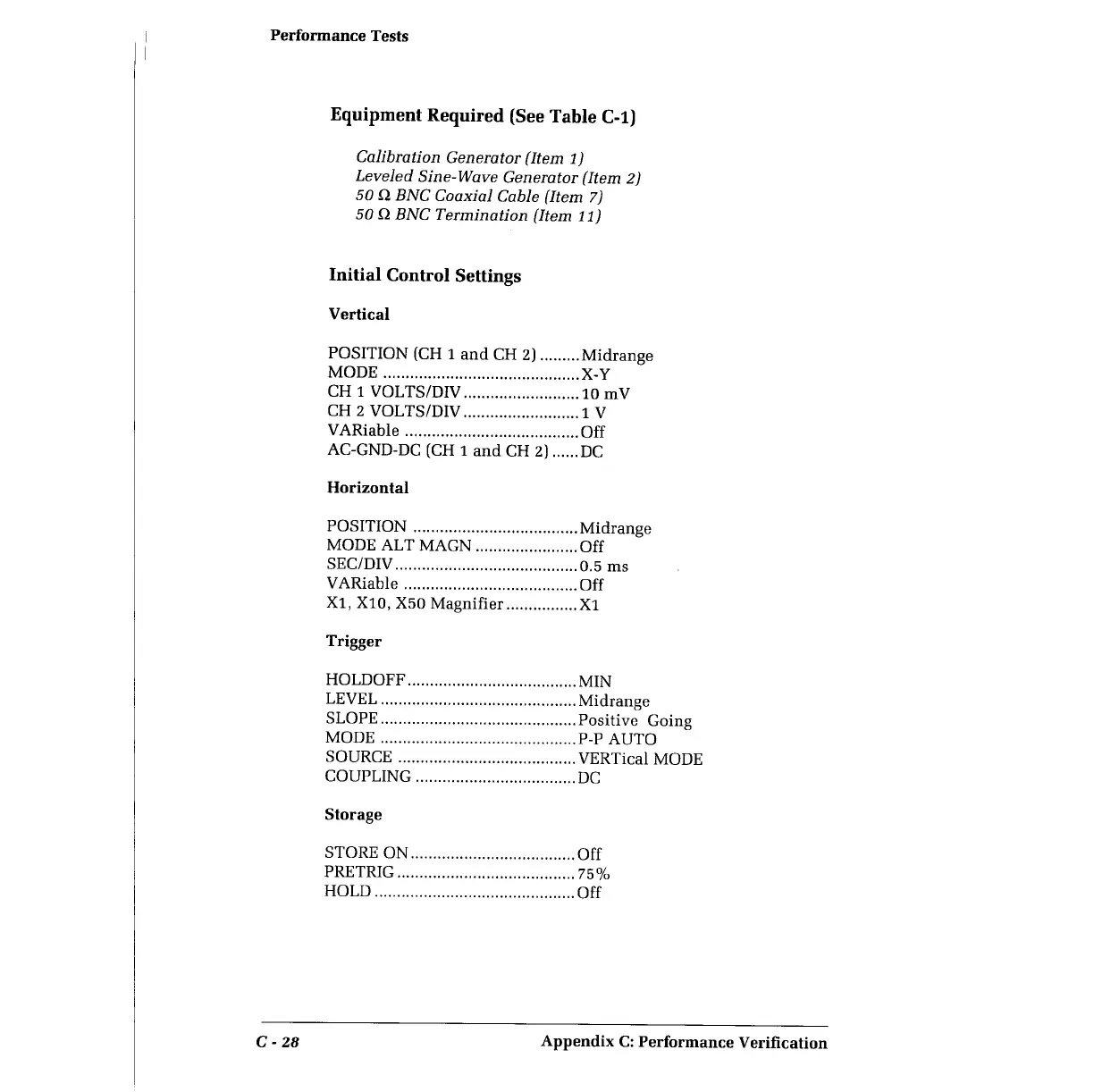

Performance Tests
C-28
Equipment Required (See Table C-1)
Calibration Generator (Item 1)
Leveled Sine-Wave Generator (Item 2)
50 Q ENC Coaxial Cable (Item 7)
50 n ENC Termination (Item 11)
Initial Control Settings
Vertical
POSITION (CH 1 and CH 2) ......... Midrange
MODE ............................................ X-Y
CH 1 VOL TS/DIV .......................... 10 m V
CH 2 VOL TS/DIV .......................... 1 V
V ARiable ....................................... Off
AC-GND-DC (CH 1 and CH 2) ...... DC
Horizontal
POSITION ..................................... Midrange
MODE ALT MAGN ....................... Off
SEC/DIV ......................................... 0.5 ms
V ARiable ....................................... Off
Xl, X10, X50 Magnifier ................ Xl
Trigger
HOLDOFF ...................................... MIN
LEVEL ............................................ Midrange
SLOPE ............................................ Positive Going
MODE ............................................ P-P AUTO
SOURCE ........................................ VER Ti cal MODE
COUPLING .................................... DC
Storage
STORE ON ..................................... Off
PRETRIG ........................................ 75%
HOLD ............................................. Off
Appendix C: Performance Verification
