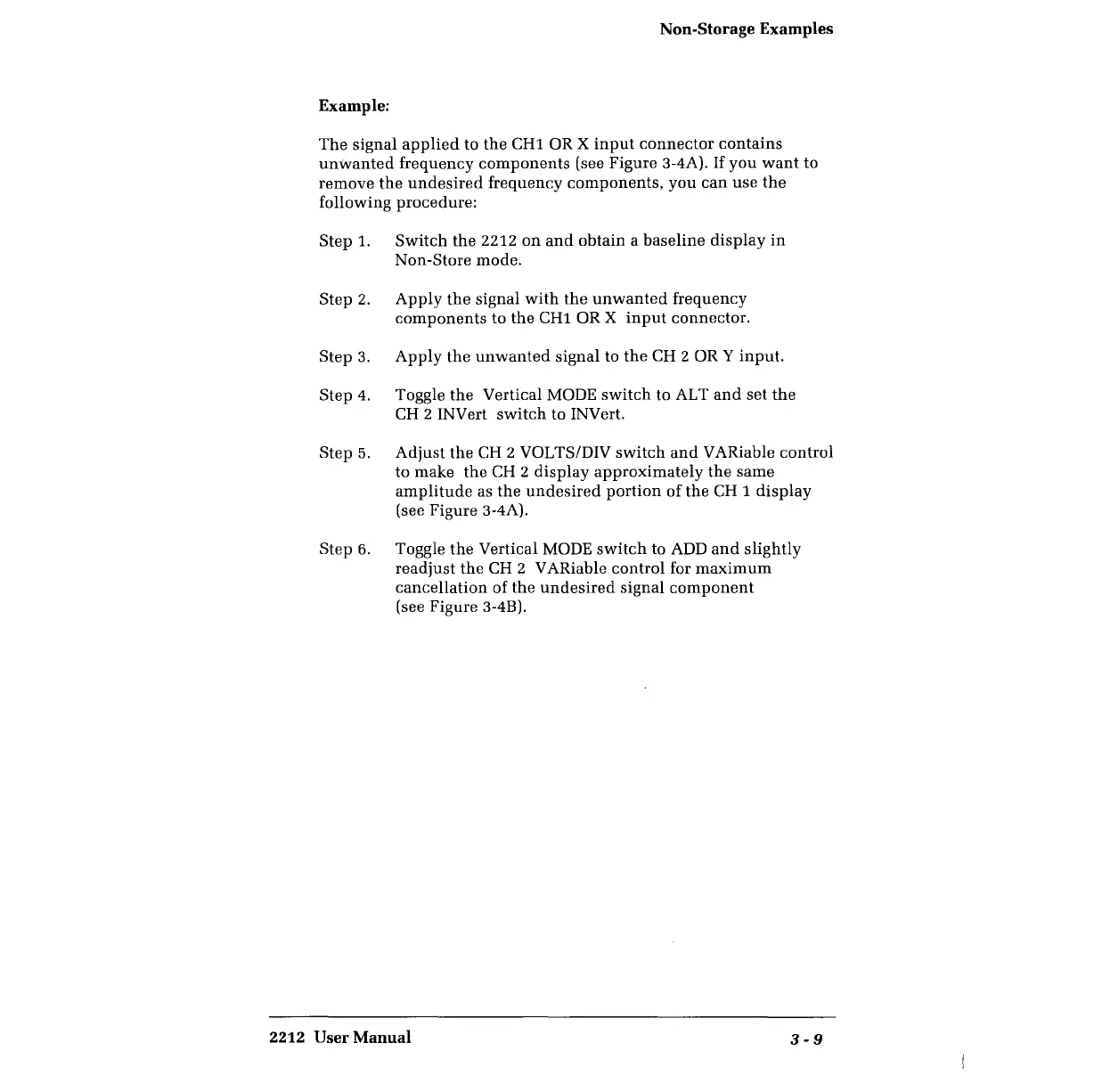

Non-Storage Examples
Example:
The
signal
applied
to
the
CH1 OR X
input
connector
contains
unwanted
frequency
components
(see Figure 3-4A). If
you
want
to
remove
the
undesired
frequency
components,
you
can
use
the
following
procedure:
Step
1.
Switch
the
2212
on
and
obtain
a
baseline
display
in
Non-Store
mode.
Step
2.
Apply
the
signal
with
the
unwanted
frequency
components
to
the
CH1 OR X
input
connector.
Step
3.
Apply
the
unwanted
signal
to
the
CH 2
ORY
input.
Step
4.
Toggle
the
Vertical MODE
switch
to ALT
and
set
the
CH 2 INVert
switch
to INVert.
Step
5.
Adjust
the
CH 2 VOL TS/DIV
switch
and
VARiable
control
to
make
the
CH 2
display
approximately
the
same
amplitude
as
the
undesired
portion
of
the
CH 1
display
(see
Figure
3-4A).
Step
6.
Toggle
the
Vertical MODE
switch
to ADD
and
slightly
readjust
the
CH 2 V ARiable
control
for
maximum
cancellation
of
the
undesired
signal
component
(see
Figure
3-4B).
