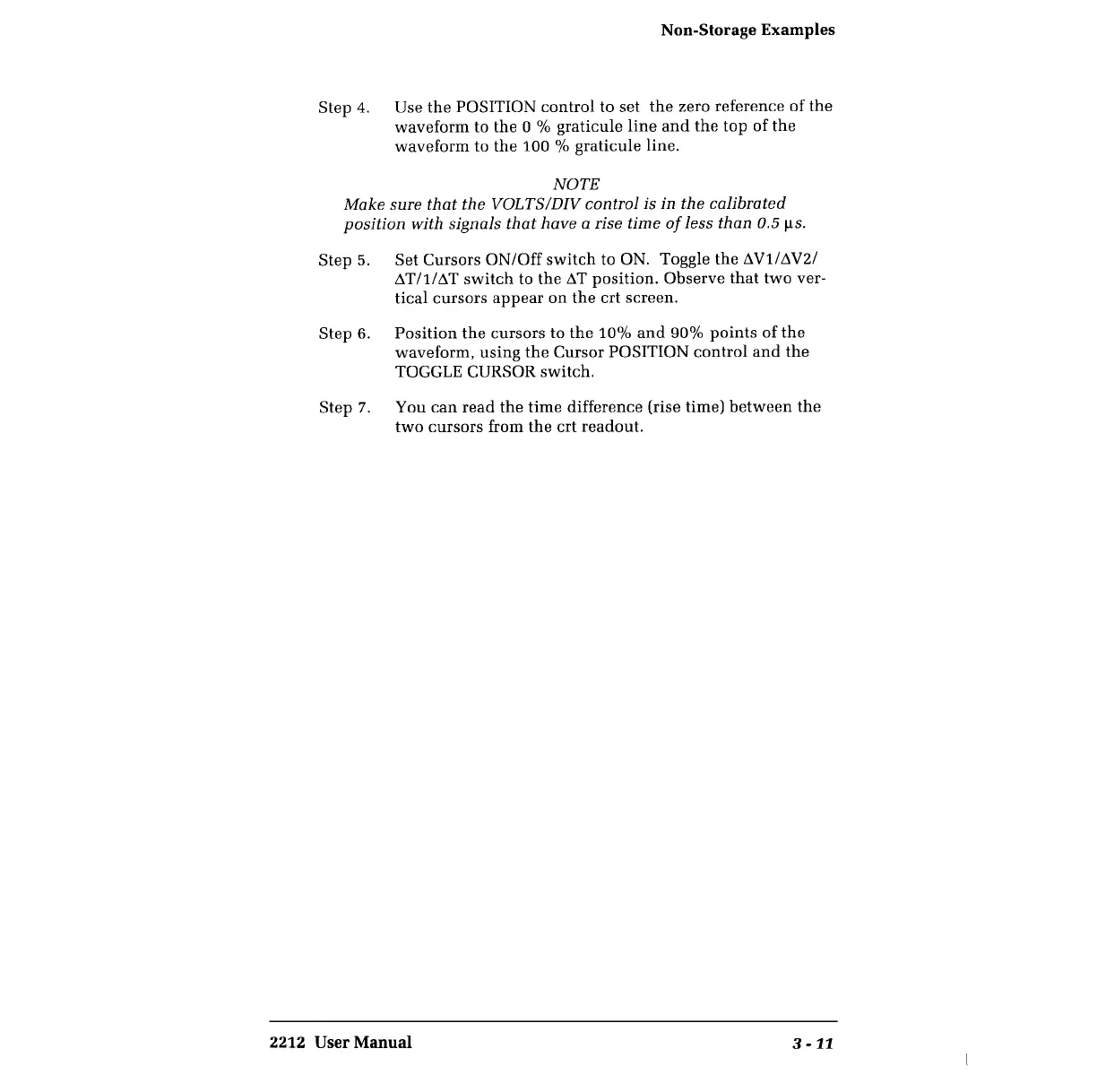

Non-Storage Examples
Step
4.
Use
the
POSITION
control
to
set
the
zero reference
of
the
waveform
to
the
O %
graticule
line
and
the
top
of
the
waveform
to
the
100 %
graticule
line.
NOTE
Make sure that the VOLTS/DIV control
is
in the calibrated
position with signals that
have
a rise time
of
less than 0.5 µs.
Step
5.
Set
Cursors
ON/Off
switch
to
ON. Toggle
the
11
Vl/
11
V2/
11T/1/11T
switch
to
the
11T
position.
Observe
that
two
ver-
tical
cursors
appear
on
the
crt
screen.
Step
6.
Position
the
cursors
to
the
10%
and
90%
points
of
the
waveform,
using
the
Cursor
POSITION
control
and
the
TOGGLE CURSOR
switch.
Step
7.
You
can
read
the
time
difference (rise time)
between
the
two
cursors
from
the
crt
readout.
2212 User Manual
3-11
