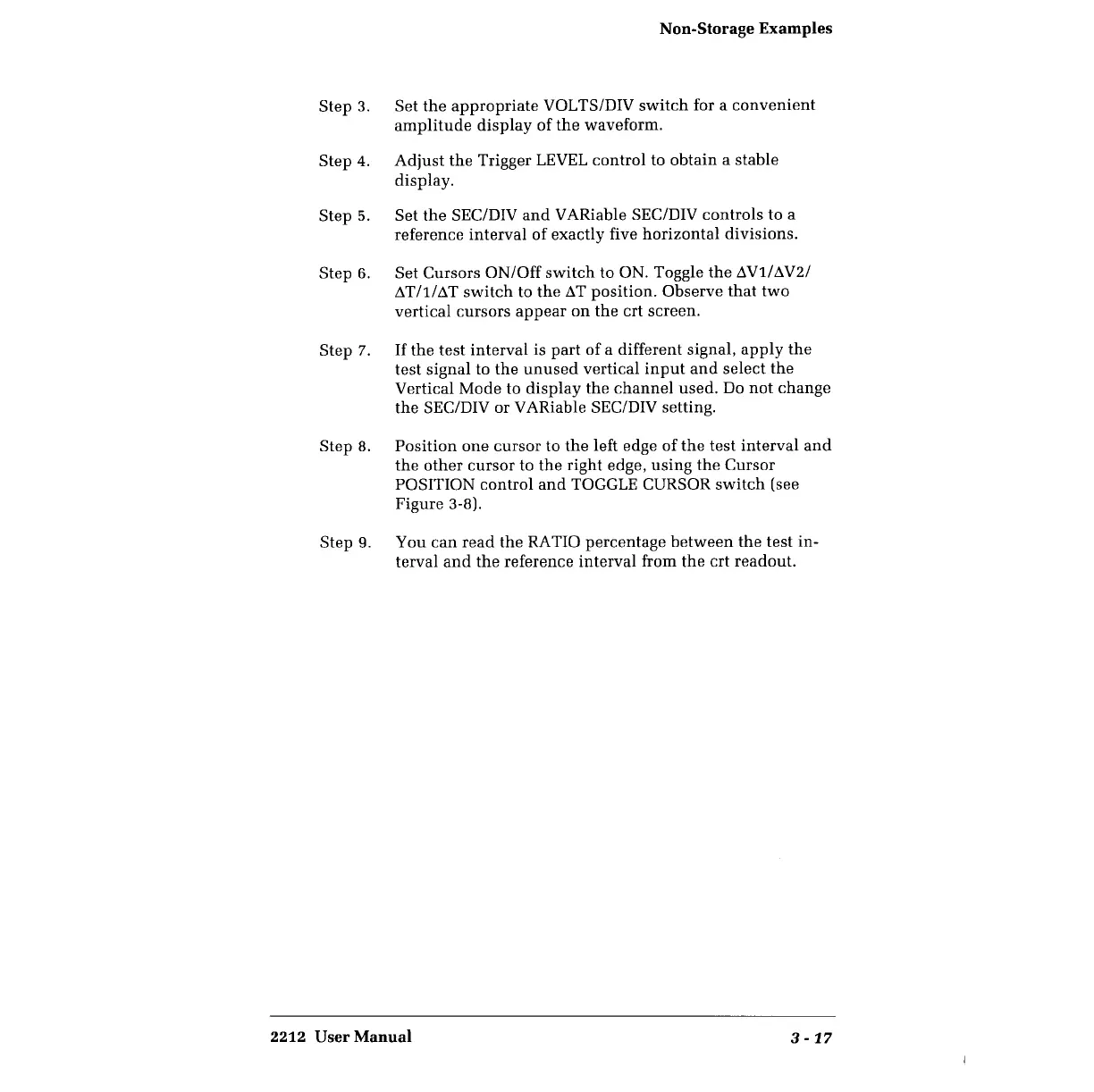

Non-Storage Examples
Step
3.
Set
the
appropriate
VOL TS/DIV
switch
for a
convenient
amplitude
display
of
the
waveform.
Step
4.
Adjust
the
Trigger LEVEL
control
to
obtain
a
stable
display.
Step
5.
Set
the
SEC/DIV
and
VARiable SEC/DIV
controls
to
a
reference
interval
of
exactly five
horizontal
divisions.
Step
6.
Set
Cursors
ON/Off
switch
to
ON. Toggle
the
.:1
V1/
.:1
V2/
.:1T/1/
.:1T
switch
to
the
.:1T
position.
Observe
that
two
vertical
cursors
appear
on
the
crt
screen.
Step
7.
If
the
test
interval
is
part
of
a different signal,
apply
the
test signal to
the
unused
vertical
input
and
select
the
Vertical
Mode
to
display
the
channel
used.
Do
not
change
the
SEC/DIV or V ARiable SEC/DIV setting.
Step
8.
Position
one
cursor
to
the
left edge
of
the
test
interval
and
the
other
cursor
to
the
right
edge,
using
the
Cursor
POSITION
control
and
TOGGLE CURSOR
switch
(see
Figure 3-8).
Step
9. You
can
read
the
RA
TIO
percentage
between
the
test
in-
terval
and
the
reference
interval
from
the
crt
readout.
2212 User Manual
3-17
