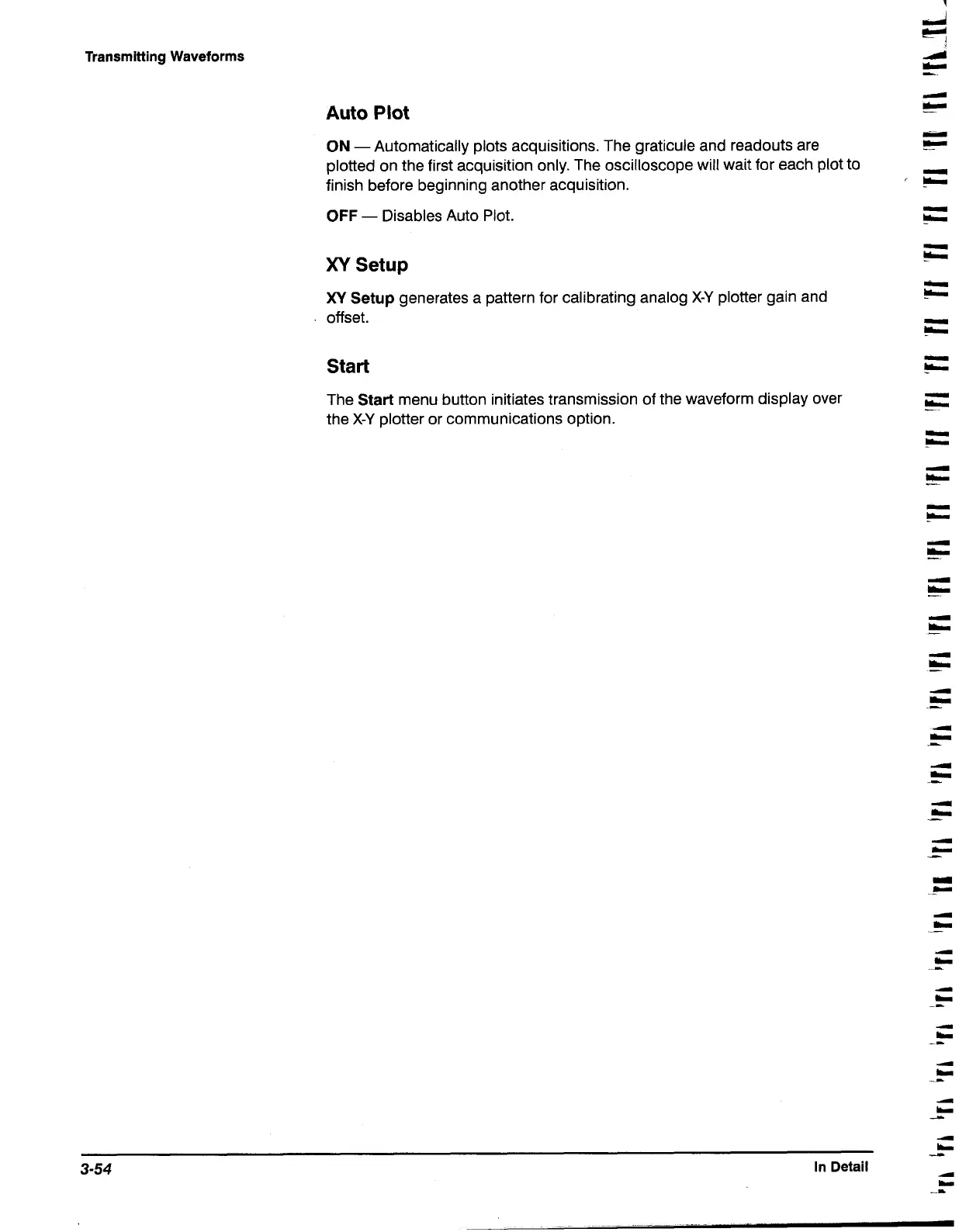

Transmitting Waveforms
Auto Plot
ON
-
Automatically plots acquisitions. The graticule and readouts are
plotted on the first acquisition only. The oscilloscope will wait for each plot to
finish before beginning another acquisition.
OFF
-
Disables Auto Plot.
XY
Setup
XY
Setup
generates a pattern for calibrating analog X-Y plotter gain and
offset.
Start
The
Start
menu button initiates transmission of the waveform display over
the X-Y plotter or communications option.
3-54
In Detail
