Tektronix 2232 User Manual

Appendix B: Specification

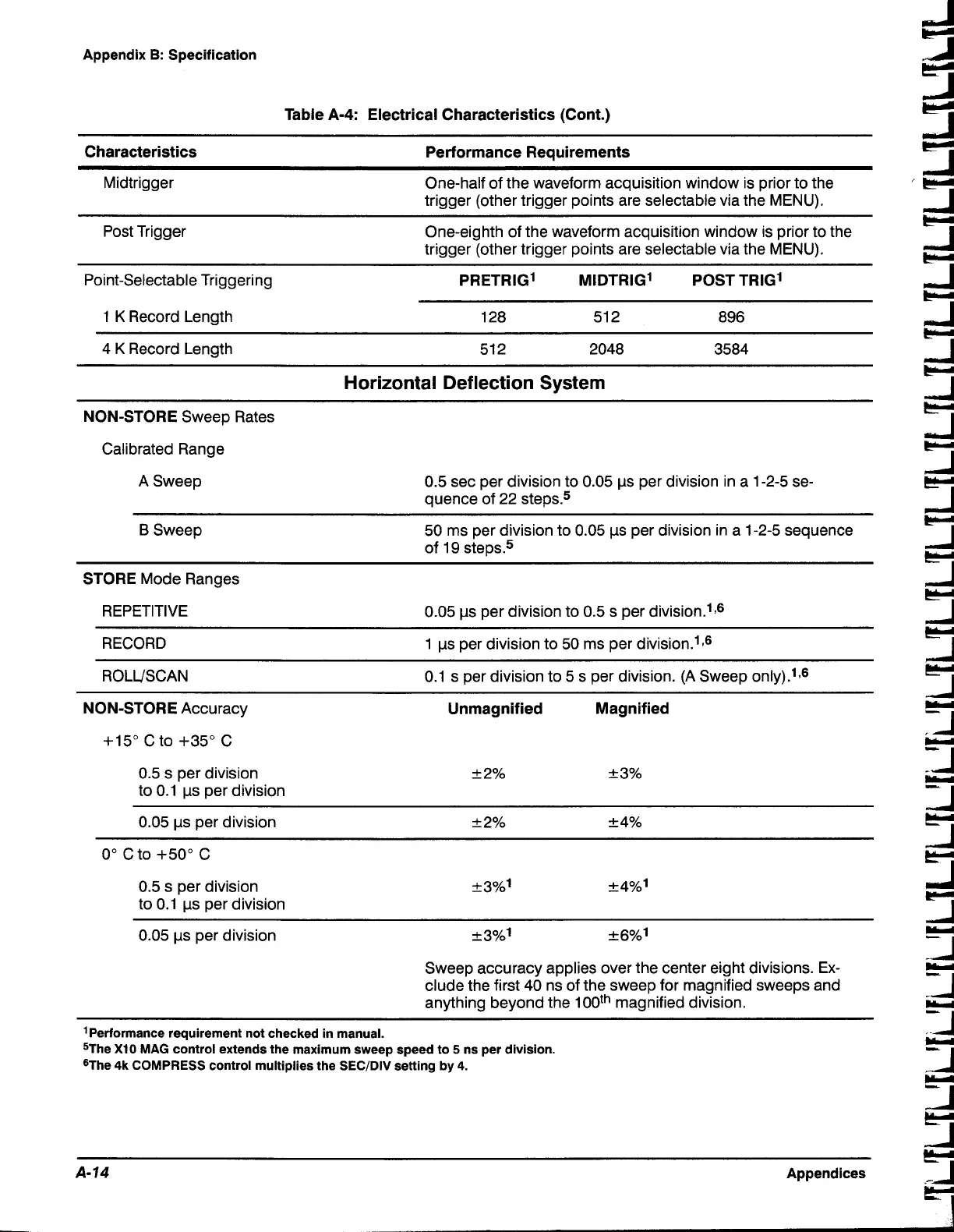

Table A-4: Electrical Characteristics (Cont.)
Characteristics Performance Requirements
Midtrigger
One-half of the waveform acquisition window is prior to the
trigger (other trigger points are selectable via the MENU).
Post Trigger
One-eighth of the waveform acquisition window is prior to the
trigger (other trigger points are selectable via the MENU).
Point-Selectable Triggering
PRETRIG~ MIDTRIG1 POST TRIG1
1
K Record Length
128 51 2 896
4
K Record Length
51 2 2048 3584
Horizontal Deflection System
NON-STORE Sweep Rates
Calibrated Range
A Sweep
0.5
sec per division to 0.05 ps per division in a 1-2-5 se-
quence of 22
steps.5
- --
B Sweep
50 ms per division to 0.05
ps per division in a 1-2-5 sequence
of 19
steps.5
STORE Mode Ranges
REPETITIVE
0.05
ps per division to 0.5 s per division.lv6
RECORD
1
ps per division to 50 ms per division.lp6
ROLUSCAN 0.1 s per division to 5 s per division. (A Sweep only).lv6
NON-STORE Accuracy
0.5 s per division
to 0.1
ps per division
Unmagnified Magnified
&2% +3%
0.05
ps per division 22% 24%
0.5 s per division 23%' -t4%l
to 0.1 ps per division
0.05
ps per division +3%l +6%l
Sweep accuracy applies over the center eight divisions. Ex-
clude the first 40 ns of the sweep for magnified sweeps and
anything beyond the
looth magnified division.
Performance requirement not checked in manual.
5The XI0 MAG control extends the maximum sweep speed to 5 ns per division.
6The 4k COMPRESS control multiplies the SECIDIV setting by 4.
Appendices
