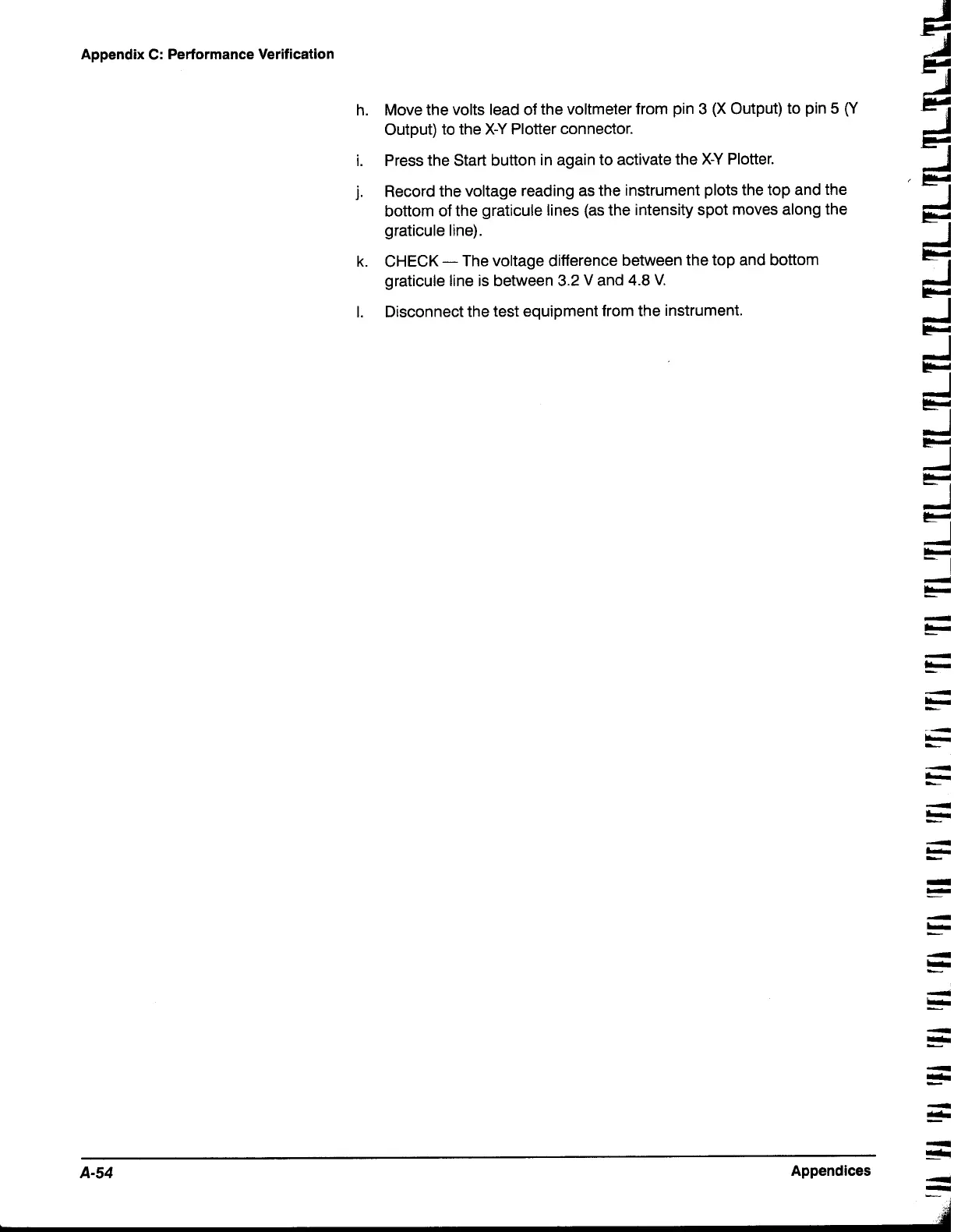

Appendix
C:
Performance Verification
h. Move the volts lead of the voltmeter from pin
3
(X Output) to pin
5
(Y
Output) to the X-Y Plotter connector.
i.
Press the Start button in again to activate the X-Y Plotter.
j.
Record the voltage reading as the instrument plots the top and the
bottom of the graticule lines (as the intensity spot moves along the
graticule line).
k.
CHECK
-
The voltage difference between the top and bottom
graticule line is between
3.2
V
and
4.8
V.
I. Disconnect the test equipment from the instrument.
