Section
4: Pulse card concepts Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
4-28 4200A-PMU-900-01 Rev. B March 2023

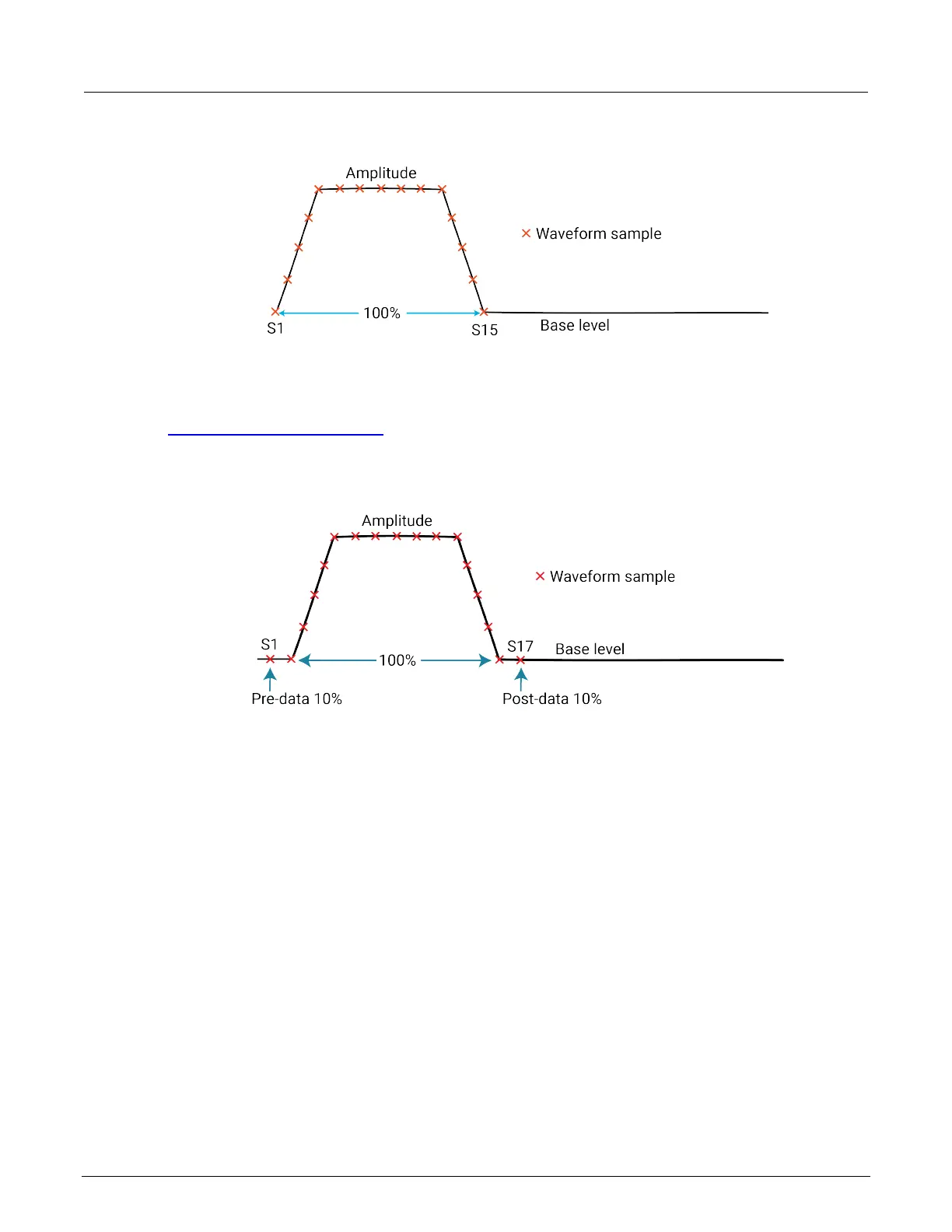

Figure 94: Waveform measurements
A waveform measurement can include pre-data and post-data. Pre-data is extra data taken before
the rise time of the pulse; post-data is extra data taken after the fall time (see figure below). See
Waveform measurement timing (on page 4-30
) for details on measurement timing for pre-data and
post-data.
Figure 95: Waveform measurements with pre-data and post-data
Waveform discrete readings
Enabled voltage and/or current readings and time stamps for every sample of the waveform are
returned in a single data set. The following figure shows how waveform discrete readings are returned
as a data set for two pulse periods with voltage, current, and timestamp readings enabled.
