7: PMU for pulsed I-V measurements on a MOSFET Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
7-6 4200A-PMU-900-01 Rev. B March 2023

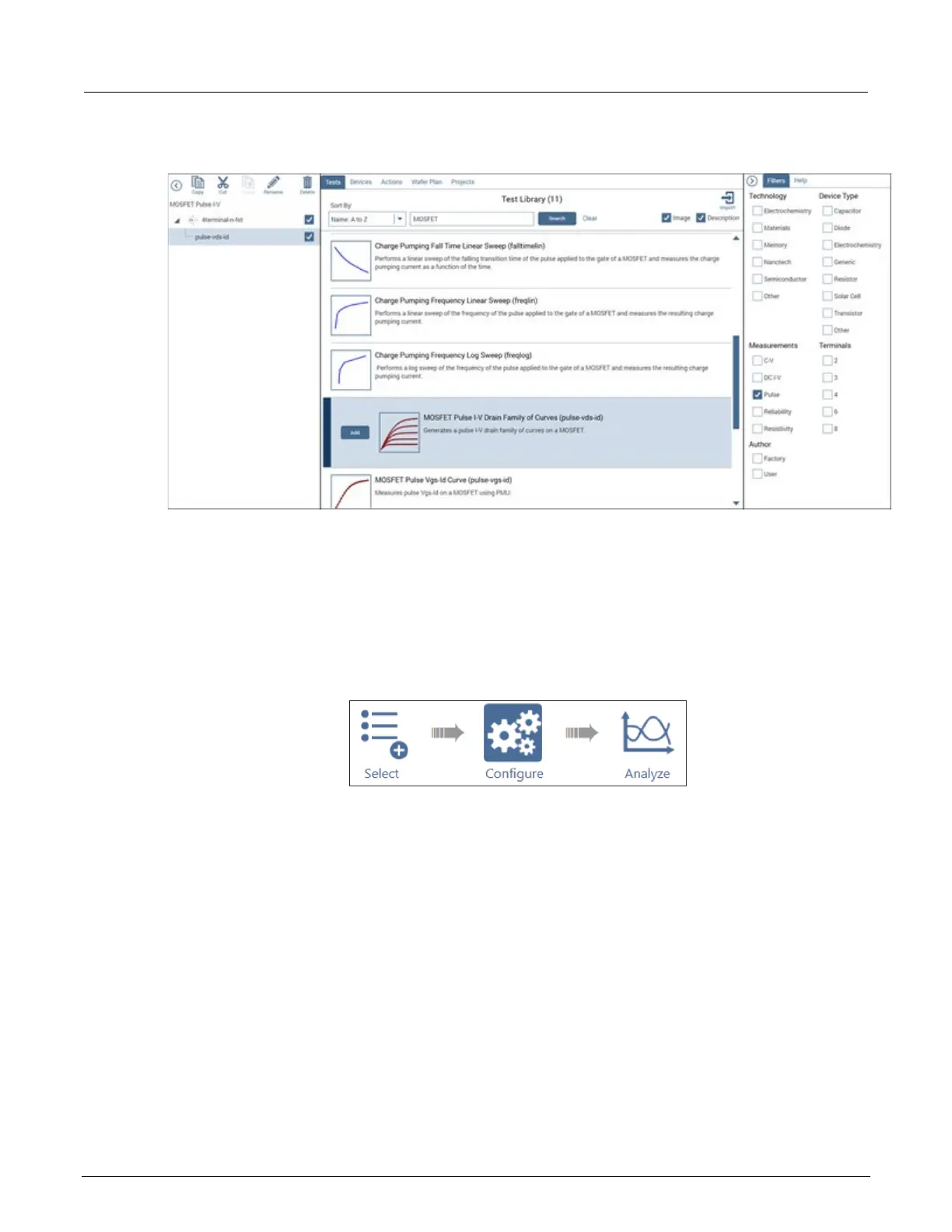

Figure 144: Selecting the MOSFET Pulse I-V Drain Family of Curves test from the Test library
Configure the test
To configure the test:
1. Select Configure.
Figure 145: Configure highlighted
2. From the Key Parameters pane, adjust the pulse voltage sweep levels of PMU1-2 on the Drain
terminal and the Pulse Step Voltage of PMU1-1 on the Gate terminal, as needed.
