Search for and select existing tests in the Test Library
To search for and select an existing test:
1. Select Tests.
2. To find a diode test in the Test Library, type the word diode in the search box, then select
Search.
3. Scroll to find the Diode Forward I-V Sweep (vfd) test.
4. Select Add to add the test to the project tree.

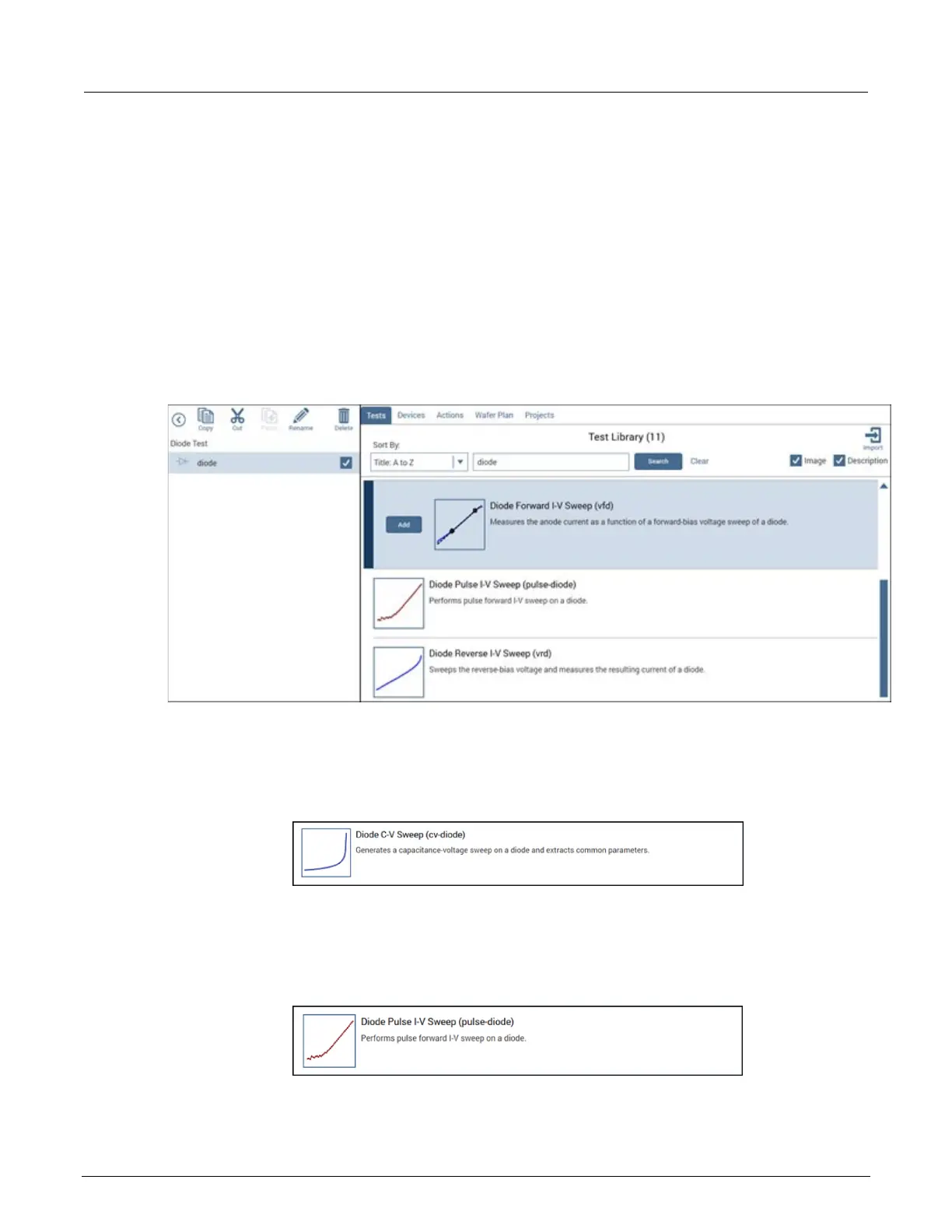

Figure 124: Add the Diode Forward I-V Sweep (vfd) test to the project tree
5. Scroll to find the Diode C-V Sweep (cv-diode) test.
6. Select Add to add this test to the project tree.
Figure 125: Diode C-V Sweep (cv-diode) test
7. Scroll to find the Diode Pulse I-V Sweep (pulse-diode) test.
8. Select Add to add this test to the project tree.
Figure 126: Diode Pulse I-V Sweep (pulse-diode) test
