Tektronix Keithley 4225-PMU User Manual

Section
3: Setting up PMUs and PGUs in Clarius Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
3-6 4200A-PMU-900-01 Rev. B March 2023

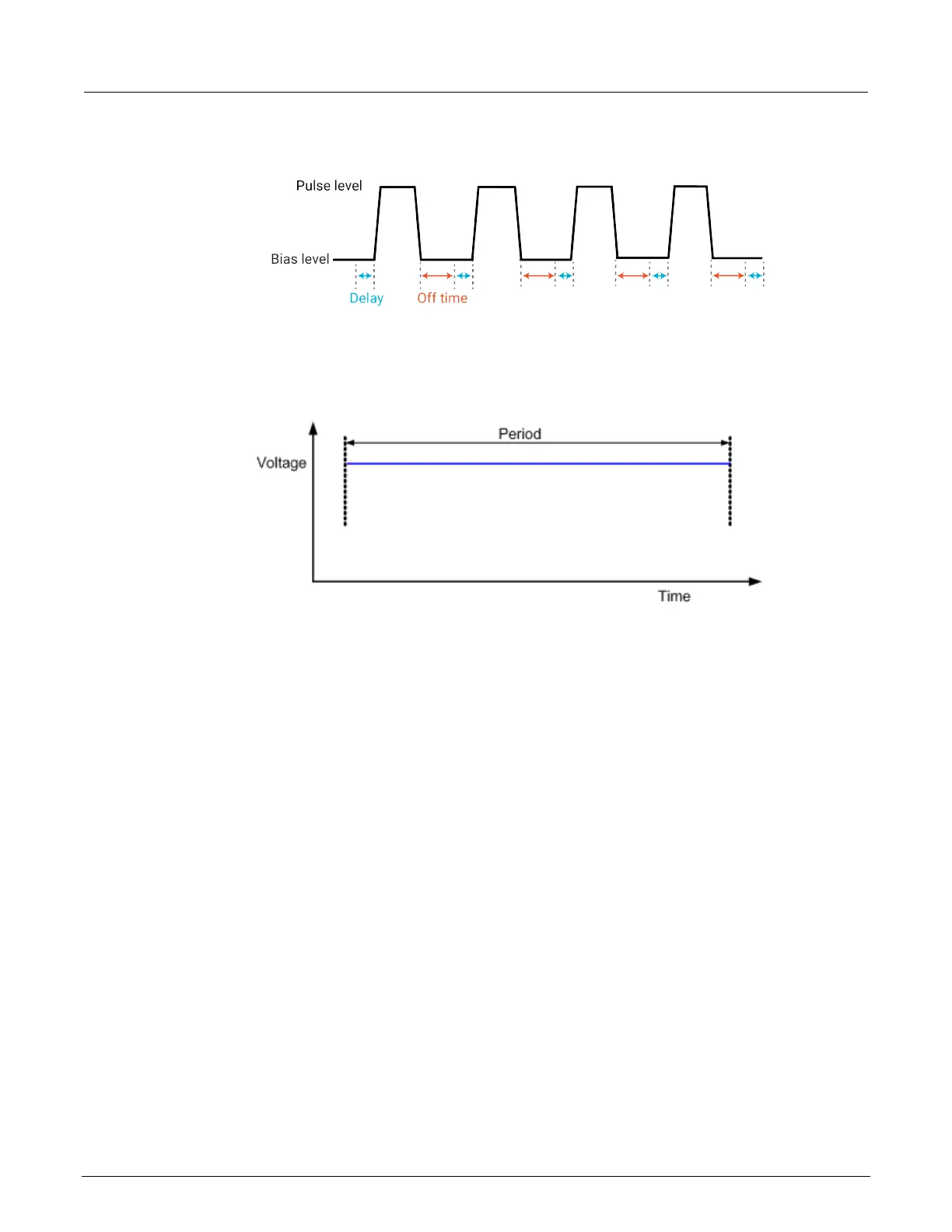

Figure 33: Pulse train
When DC Bias operation mode is selected, the PMU outputs the dc base voltage. The following figure
shows a representation of a dc voltage waveform.
Figure 34: DC Bias waveform
The terminal settings available for each operation mode are described in the following topics.
PMU - all terminal parameters
When you select All Parameters, the Configure pane displays all available parameters for the test
that is selected in the project tree.
Parameter descriptions are provided in the following topics.
Start (PMU Amplitude Sweep)
The voltage source level at which the sweep starts.
Stop (PMU Amplitude Sweep)
The voltage source level at which the sweep stops.

Tektronix Keithley 4225-PMU Specifications

General

Brand	Tektronix
Model	Keithley 4225-PMU
Category	Computer Hardware
Language	English
