Tektronix Keithley 4225-PMU User Manual

Section
2: Connections Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
2-10 4200A-PMU-900-01 Rev. B March 2023
Two-terminal device connections
The following figure shows connections to a two-terminal device using a single channel. Connect one
end of the device to the center conductor of Ch 1 and connect the other side to pulse card common
(outside shield of the SMA cable).

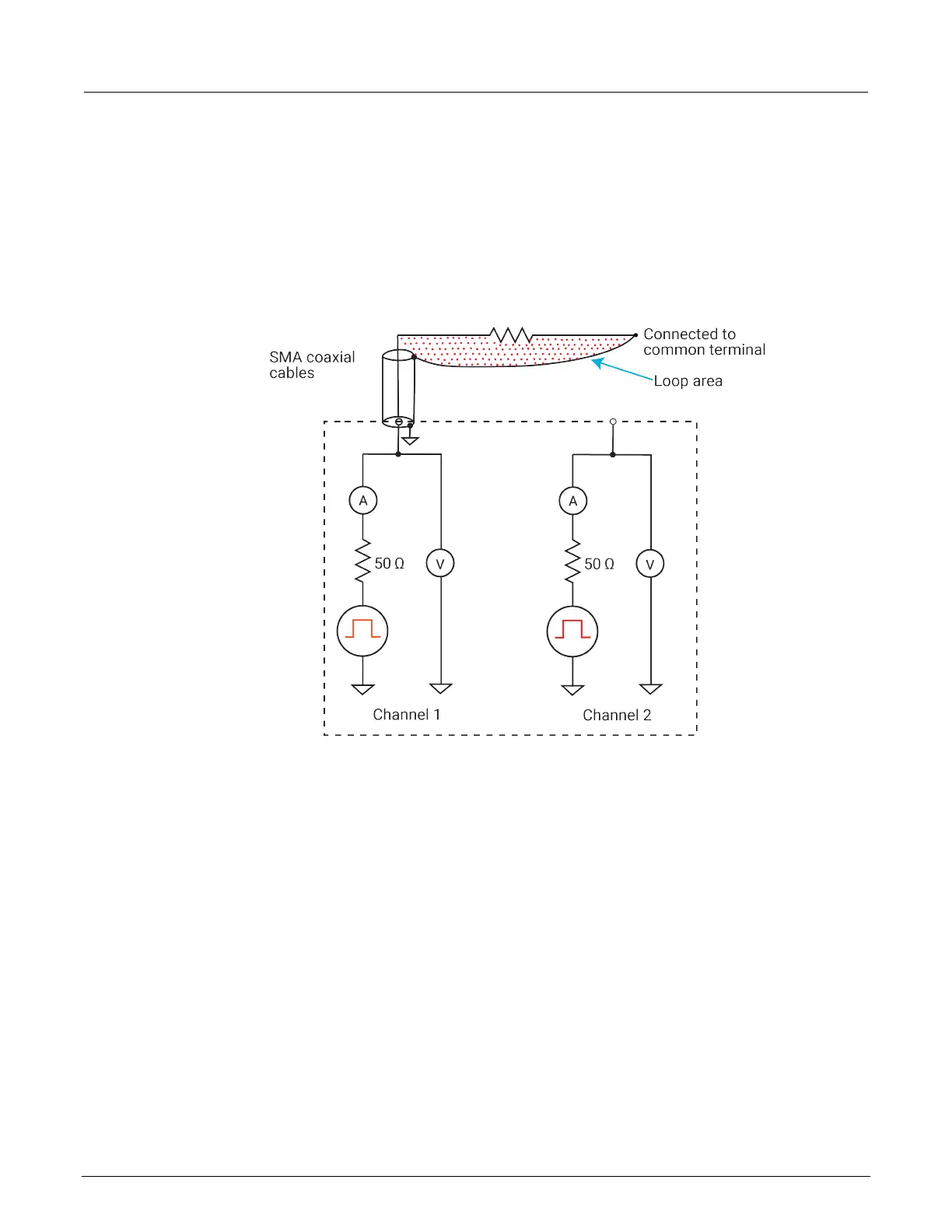

Figure 10: Two-terminal device connections to a pulse card using one channel
