Tektronix Keithley 4225-PMU User Manual

Model 4200A
-SCS Pulse Card (PGU and PMU) User's Manual Section 4: Pul
se card concepts
4200A-PMU-900-01 Rev. B March 2023 4-29

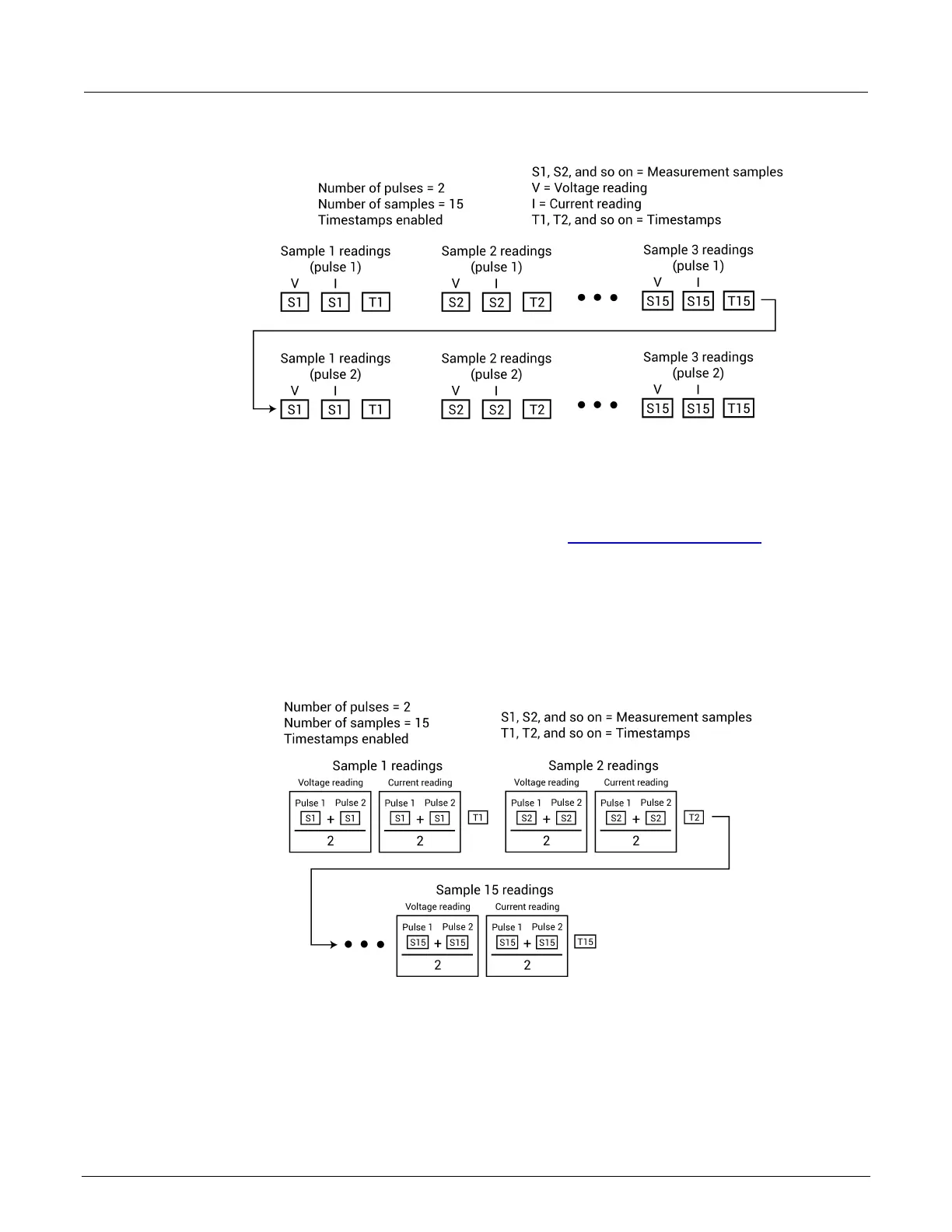

Figure 96: Returned data set for waveform discrete readings
Waveform average readings
For this data acquisition type, each returned reading is a mean average of the corresponding samples
for all the pulses in the burst. For example, in the figure in Waveform discrete readings (on page 4-28
),
the V and I readings for sample 1 - pulse 1 would be averaged with the V and I readings for sample 1
- pulse 2.
The figure below shows how waveform average readings are returned as a data set for two pulse
periods with voltage, current, and time stamp readings enabled.
Figure 97: Returned data set for waveform average readings
