Section
5: KPulse (for Keithley Pulse Cards) Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
5-2 4200A-PMU-900-01 Rev. B March 2023

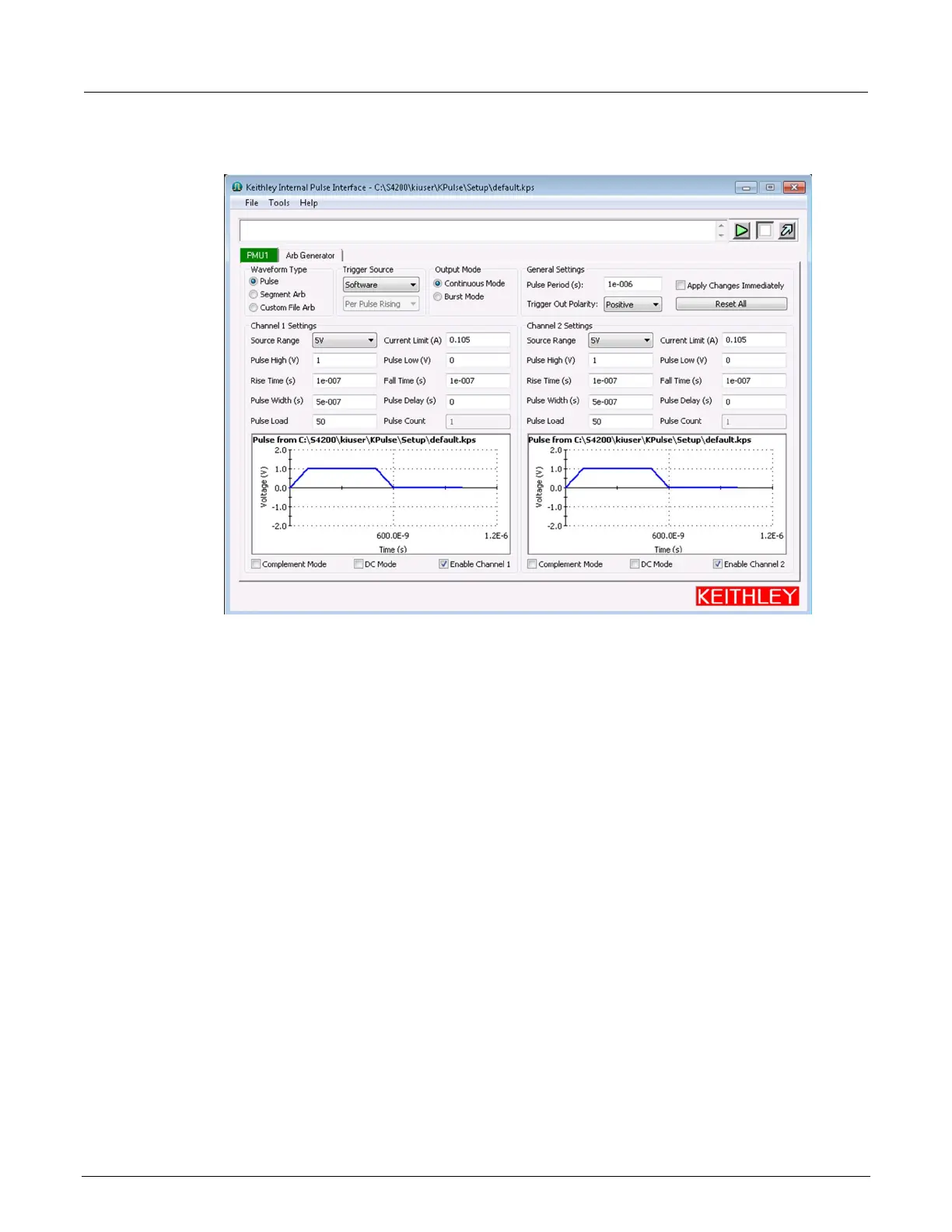

Figure 99: KPulse GUI
KPulse setup and help
The KPulse menus include:
• File: Use this menu to load and save KPulse setups and exit KPulse. By default, setup files are
saved at the command path location:
C:\s4200\kiuser\KPulse\Setup.
• Tools: From this menu, select Options to open the KPulse Options dialog, which includes the
following options:
 Show Pulse Mode Graphs: When enabled, shows the Standard Pulse waveform previewers
for each pulse card tab.
 Show Segment Arb Graphs: When enabled, shows the Segment Arb pulse waveform
previewers for each pulse card tab.
 Show File Arb Graph: When enabled, shows the Custom File Arb pulse waveform previewer
for each pulse card tab.
 Show Arb Generator Graph: When enabled, shows the Arb Generator pulse waveform
previewer.
