Section
6: Use the RPM to switch the SMU, CVU, and PMU Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
6-6 4200A-PMU-900-01 Rev. B March 2023

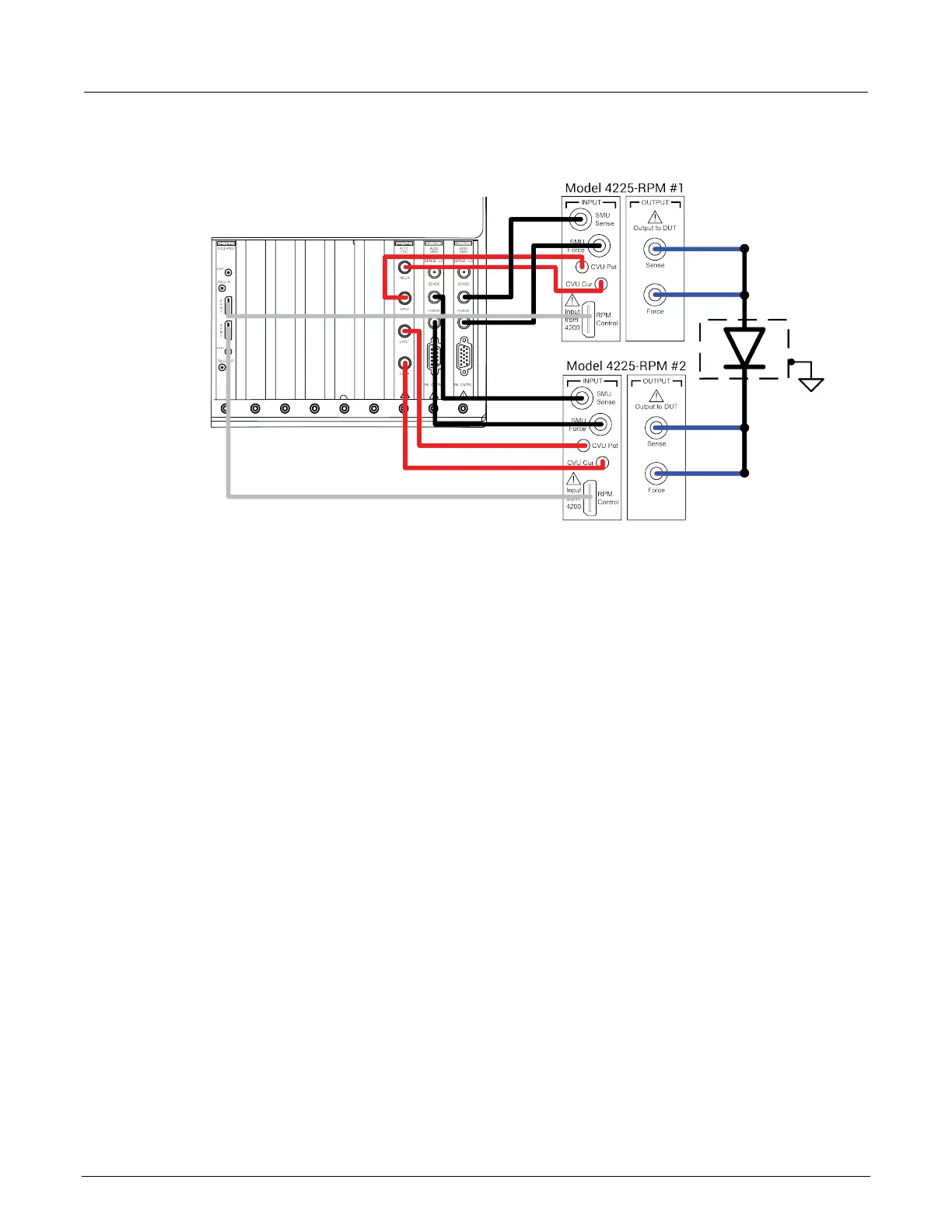

Figure 121: Rear panel connections to the inputs of the 4225-RPM units and from the units to
the device
Set up the measurements in Clarius
This section describes how to set up the 4200A-SCS to make I-V, C-V, and pulsed I-V measurements
on a diode. You will create a new project and add a test to the project tree for each
measurement type.
For this example, you use the Clarius application to:
Create a new project
Add a device
Search for and select existing tests in the Test Library
Configure the tests
Run the tests
View and analyze the test results
Create a new project
To create a new project:
1. Choose Select.
2. In the Library, select Projects.
3. Select New Project.
4. Select Create.
