6: Use the RPM to switch the SMU, CVU, and PMU Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
6-2 4200A-PMU-900-01 Rev. B March 2023
Included accessories
The following cables, adapters, and accessories are included in the RPM kit.

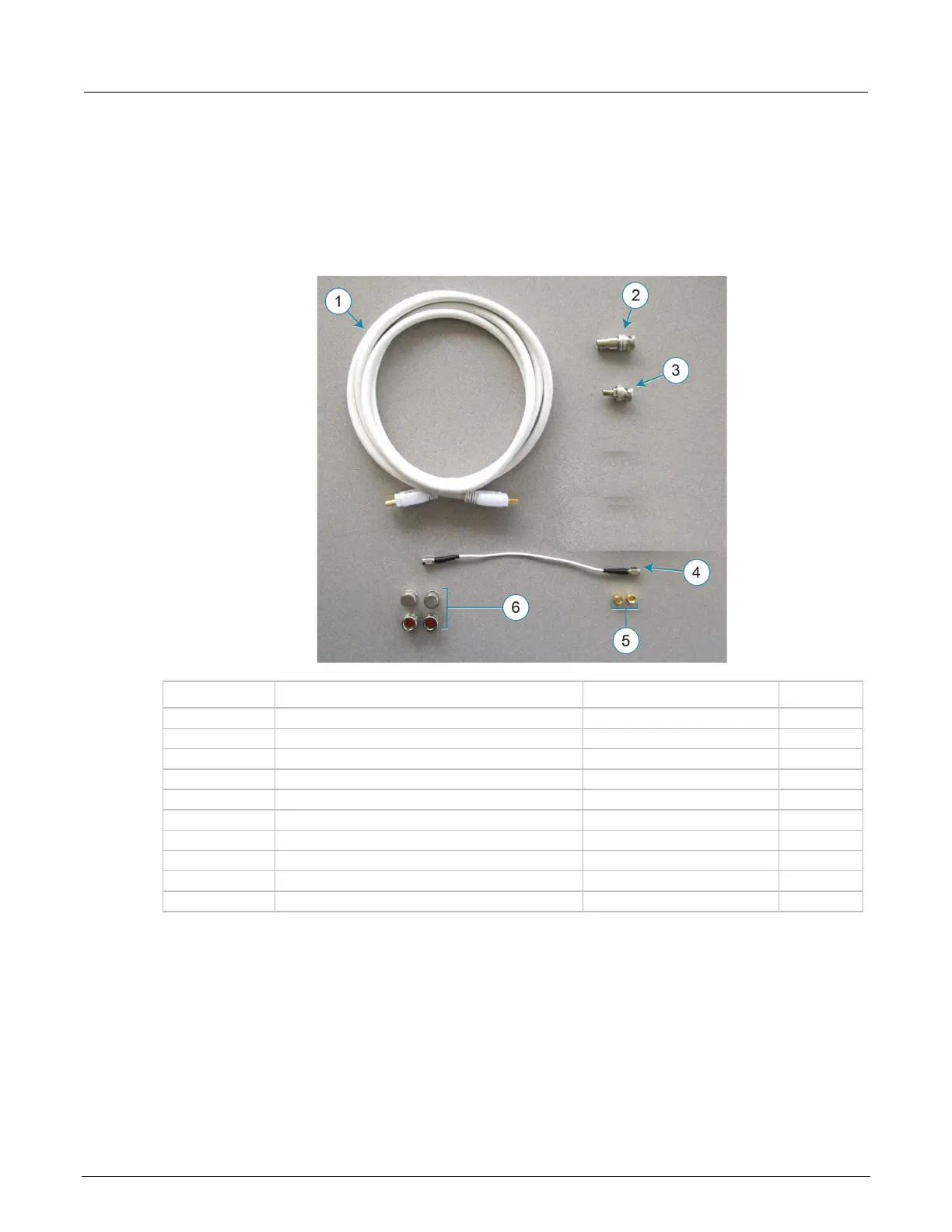

Figure 118: 4225-RPM included accessories
Item Description Keithley part number Quantity
1
RPM interconnect cable, 2.4 m (8 ft)
CA-547-2.4
1
2
Triaxial to BNC adapter (guard removed)
CS-712
1
3
BNC-SMA female adapter
CS-1247
1
4
SMA to SMA cable, 20 cm (8 in.)
CA-452
1
5
Protective cap
CAP-47
2
6
Triaxial caps (for shielding, not shorting)
CA-31
4
Not shown
Support bracket
4200-322
1
Not shown
Captive panel screw (for support bracket)
FA-243-2
1
Not shown
Allen socket head capscrew, #4-40 x 5/16"
4-40x5/16SOHBLK
1
Not shown
Hex wrench, 3/32 in.
TL-32
1
