Model 4200A
-SCS Pulse Card (PGU and PMU) User's Manual Section 3:
Setting up PMUs and PGUs in Clarius
4200A-PMU-900-01 Rev. B March 2023 3-3
Configure the tests
To configure a test:
1. Select Configure.

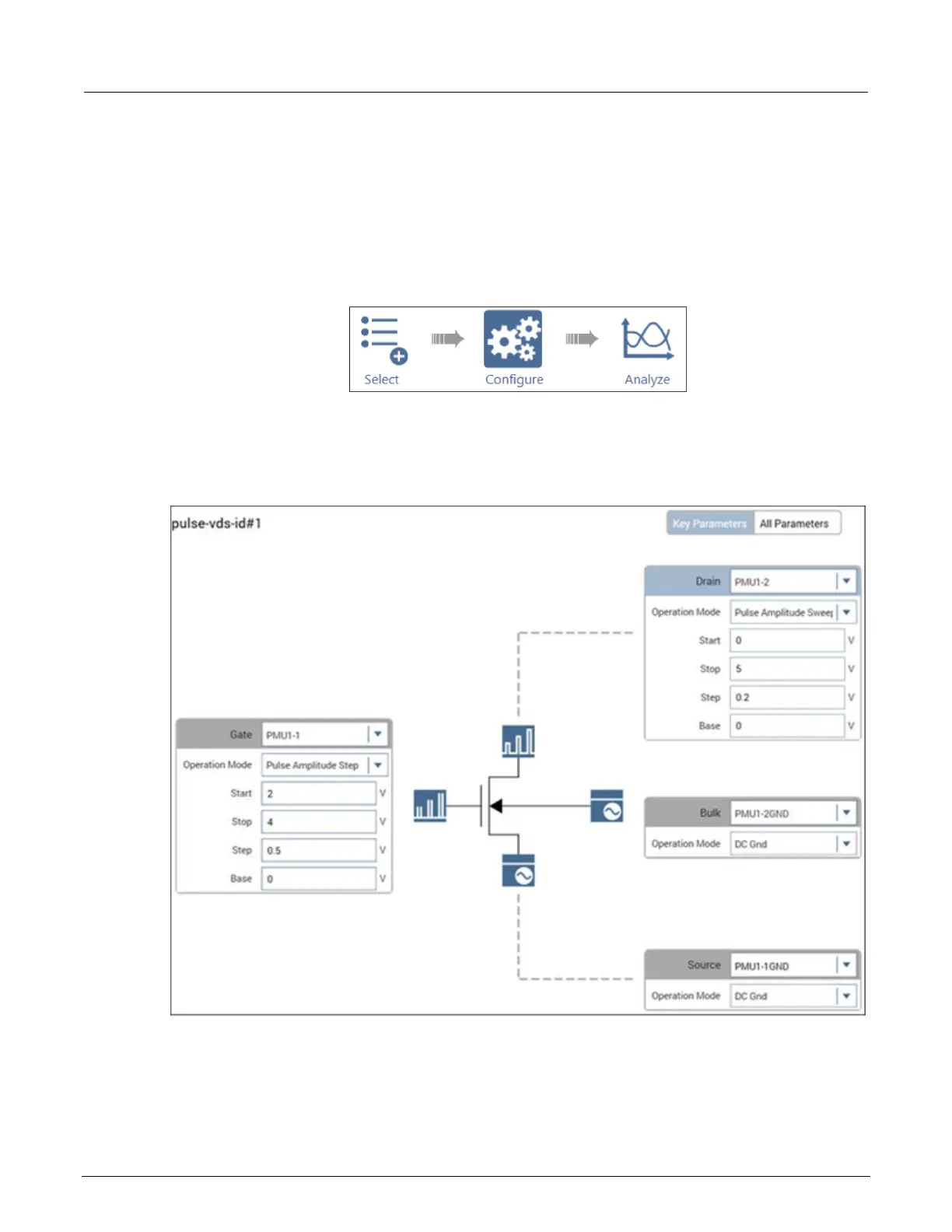

Figure 28: Configure highlighted
2. From the Key Parameters pane, adjust the pulse voltage sweep levels of PMU1-2 on the Drain
terminal and the Pulse Step Voltage of PMU1-1 on the Gate terminal, as needed.
Figure 29: Key Parameters pane for the pulse-vds-id test
