7: PMU for pulsed I-V measurements on a MOSFET Model 4200A-SCS Pulse Card (PGU and PMU) User's Ma
7-8 4200A-PMU-900-01 Rev. B March 2023
4. From the Terminal Settings pane and Advanced Terminal Settings dialog, you can adjust the
voltage source and current measurement parameters, as needed.

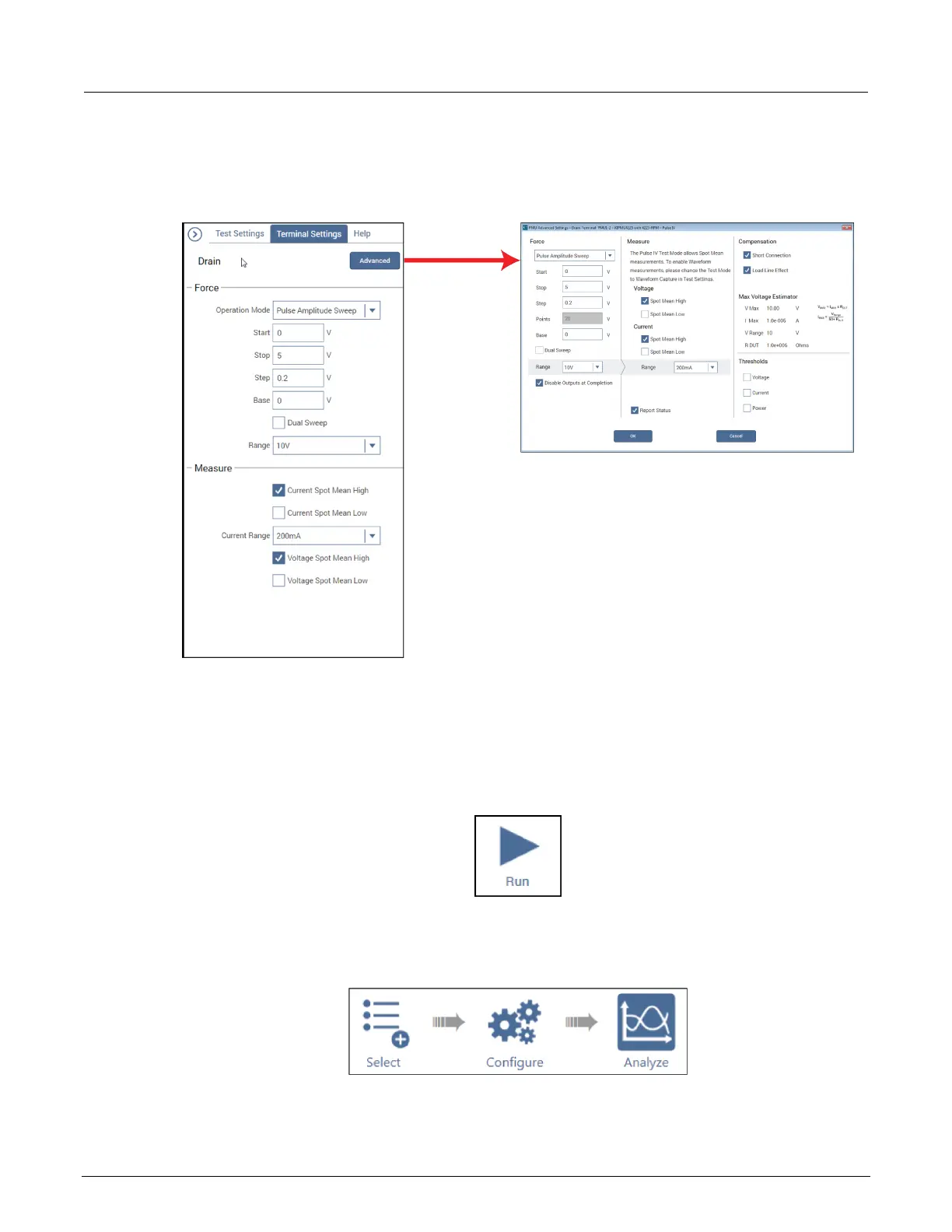

Figure 148: Terminal Settings pane and Terminal Settings Advanced dialog
Run the test and analyze the results
Select Run to execute the test.
Figure 149: Run
You can select Analyze when you run the project to view test results in real time.
Figure 150: Analyze highlighted
To Next Page
