Model 4200A

-SCS Pulse Card (PGU and PMU) User's Manual Section 7: PMU for pulsed I-

V measurements on a MOSFET

4200A-PMU-900-01 Rev. B March 2023 7-9

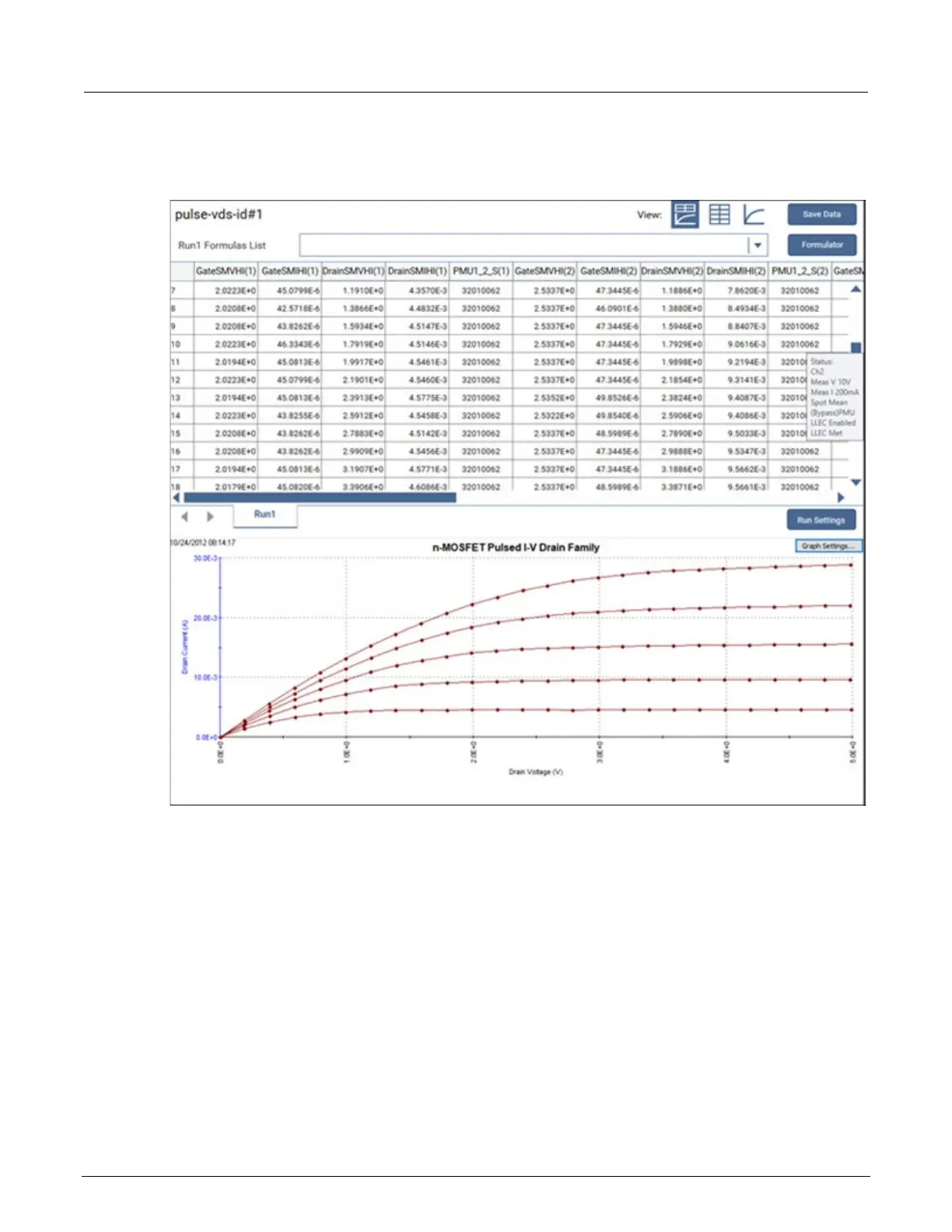

The data and the graph are displayed in the Analyze pane, as shown in the following figure.

Figure 151: Analyze with data and graph displayed
