Use the RPM to switch the SMU, CVU, and PMU
4200A-PMU-900-01 Rev. B March 2023 6-9

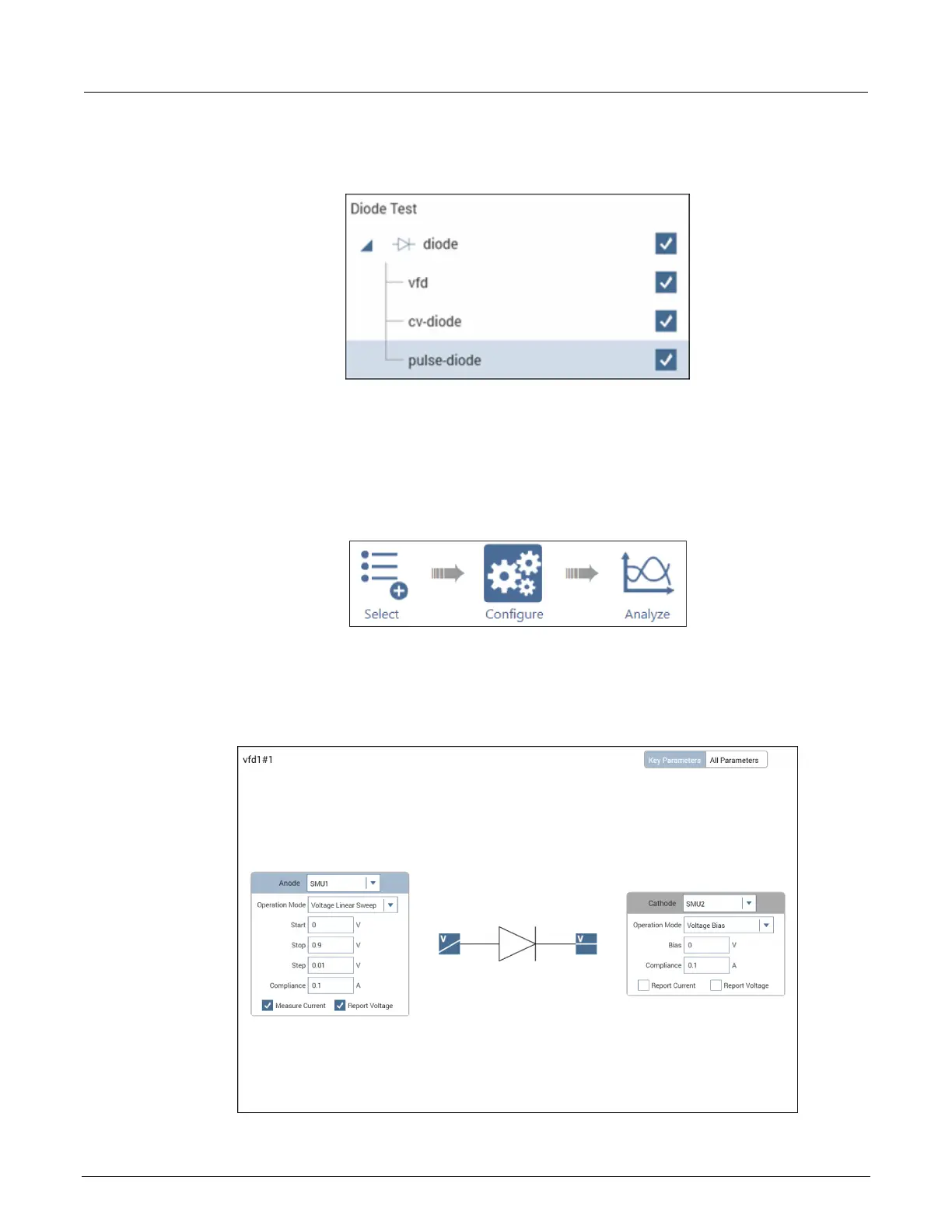

Your project tree now has three tests.
Figure 127: Three tests added to project tree
Configure the vfd test
To configure the vfd test:
1. Choose Configure.
Figure 128: Configure highlighted
2. In the project tree, select the vfd test.
3. Adjust the Anode settings in the Key Parameters pane as needed.
Figure 129: Forward I-V sweep, vfd terminal settings
