Section
6: Use the RPM to switch the SMU, CVU, and PMU Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
6-10 4200A-PMU-900-01 Rev. B March 2023
4. In the Test Settings pane, select Advanced.
5. Adjust the parameters as needed. Be sure to include the delay between sweep steps.

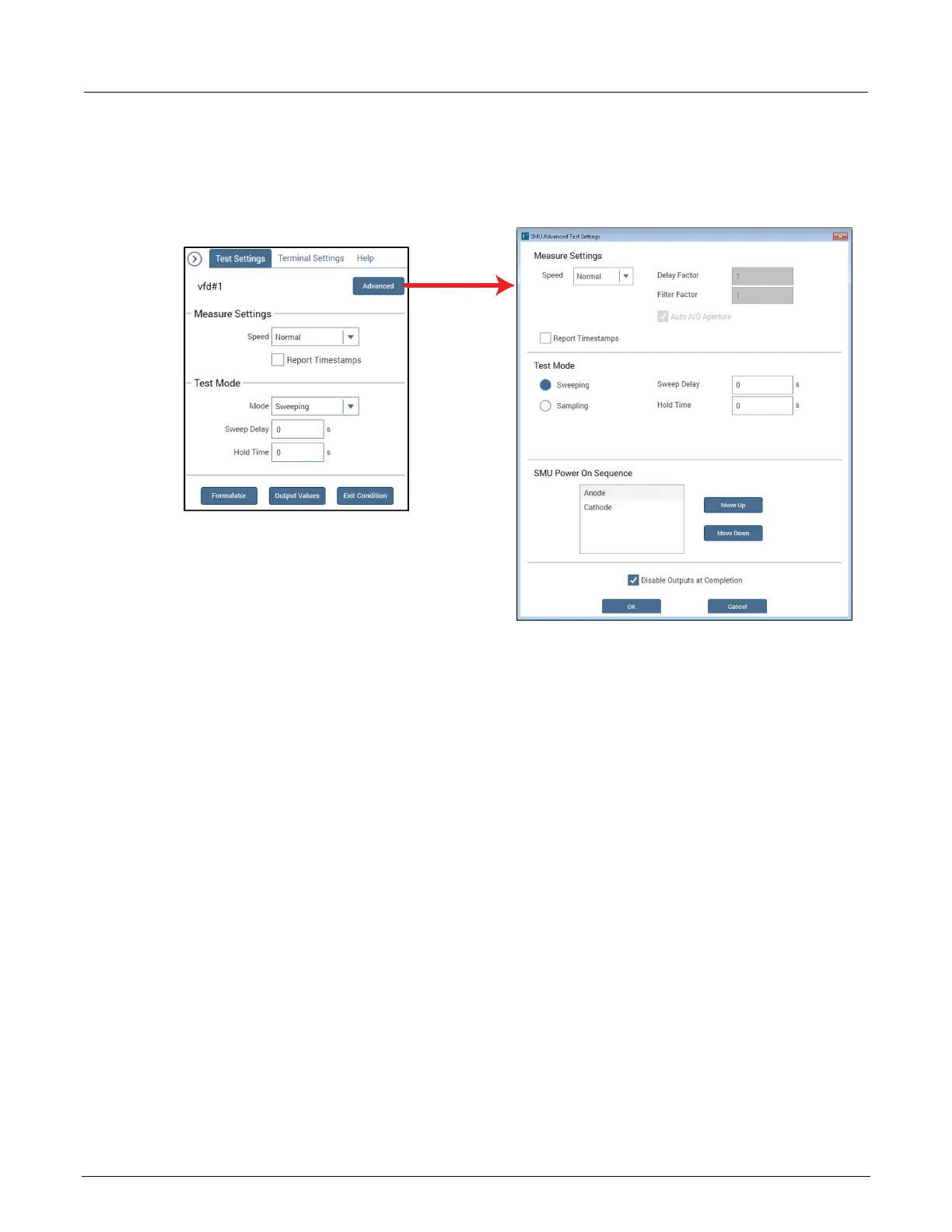

Figure 130: Test Settings pane and Test Settings Advanced dialog
6. Select OK to accept the settings.
7. Select Terminal Settings.
8. Select Advanced.
9. Adjust the voltage source and current measurement parameters as needed.
