-SCS Pulse Card (PGU and PMU) User's Manual Section 8:
4200A-PMU-900-01 Rev. B March 2023 8-17

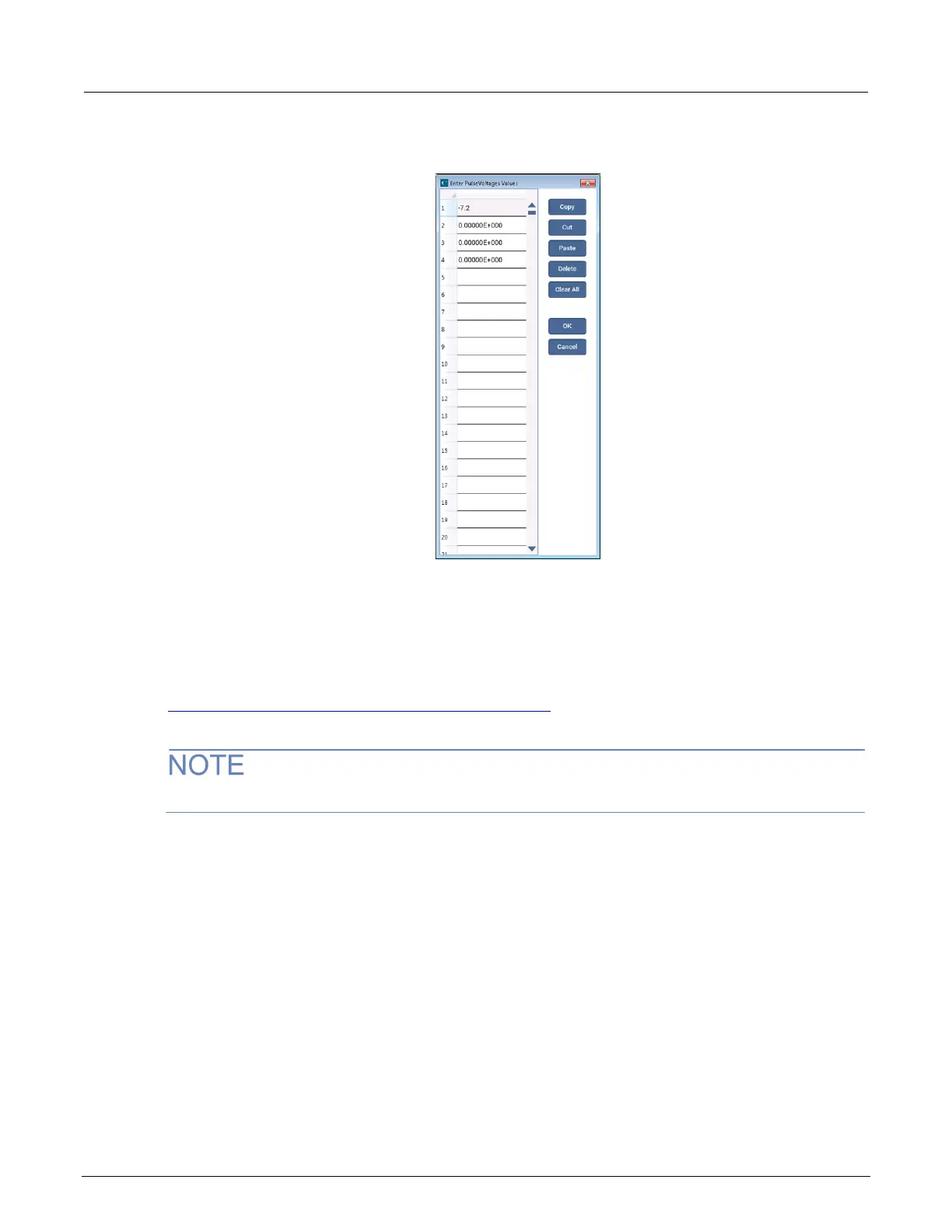

Figure 168: Enter Value dialog for arrays
Refer to the Clarius Help pane for information on the other parameters for each test.
Direct connections to single DUT
Cabling instructions for direct connections to a single DUT are below. Also refer to the figure in
Connections for endurance testing - no switching matrix (on page 8-9
).
In all of the following steps, apply sufficient torque using an 8 in. lb. torque wrench.
These instructions are compatible with the following memory projects:
• flash-nand
• flashdisturb-nand
• flashendurance-nand
Make SMA cable connections to the pulse card:
1. Set up the 4200A-SCS.
2. Connect a 10.8 cm (4.25 in.) SMA cable to either end of an SMA tee.
3. Connect one of the SMA cables to TRIGGER OUT of the pulse card in the lowest numbered slot.
4. Connect the SMA tee to TRIGGER IN of the first pulse card.
