Custom Arb file operation: Select and configure waveforms
To select and configure waveforms:
1. Select the Arb Generator tab.
2. Select New Waveform to open the Waveform Generator dialog, shown in the following figure.

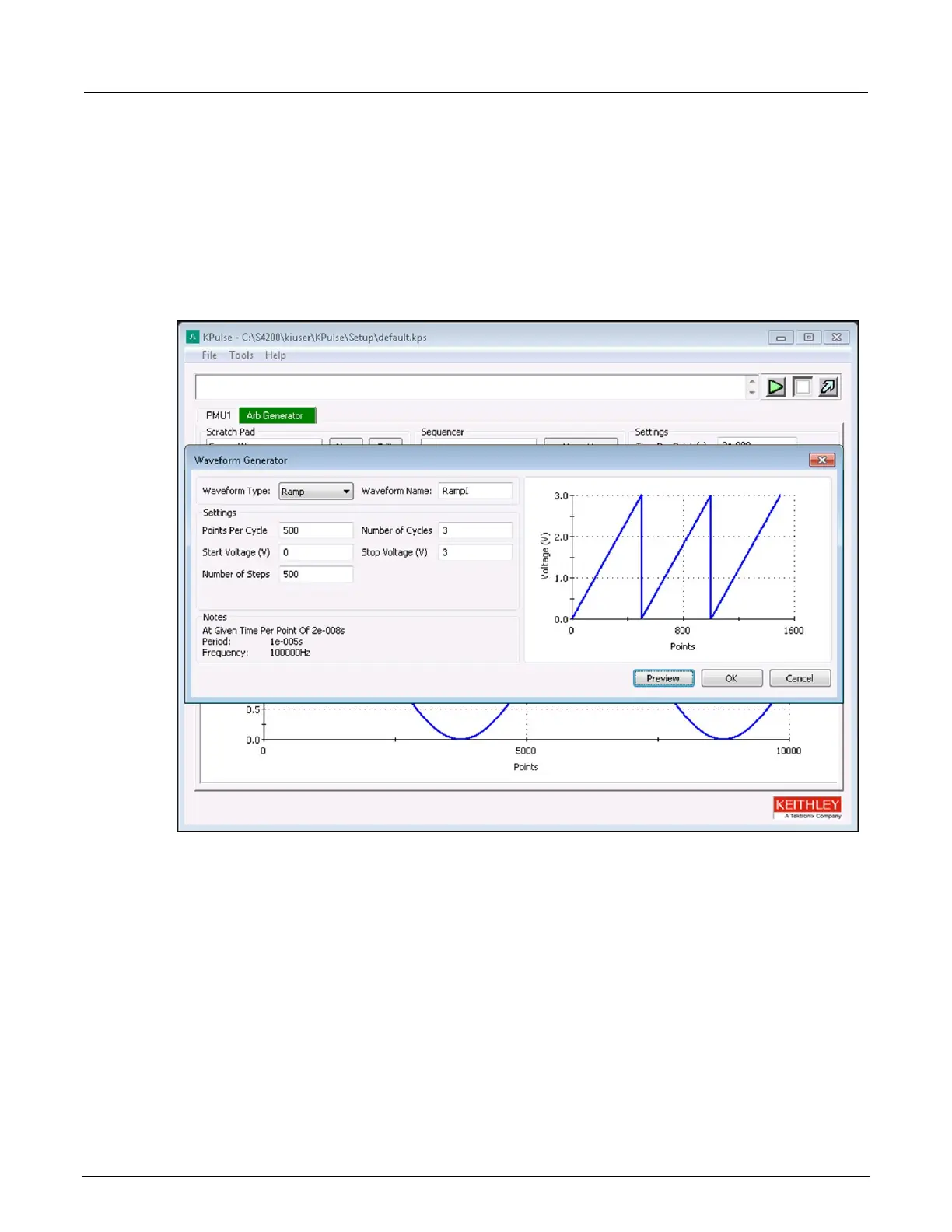

Figure 105: Custom Arb file operation: Select and configure waveforms
3. Select the Waveform Type to be created.
4. Configure the Settings for the selected waveform type.
5. Select Preview to update the preview of the waveform.
6. In the Waveform Name field, type in a name for the waveform. You cannot use a name that is
already used in the Scratch Pad.
7. Select OK to create the waveform. The new waveform is added to the Scratch Pad.
8. Repeat these steps to create another waveform in the Scratch Pad.
