2: Connections Model 4200A-SCS Pulse Card (PGU and PMU)
2-16 4200A-PMU-900-01 Rev. B March 2023
Using an adapter cable to connect pulse card to DUT
The following figure shows an example of how to make pulse card connections to the device under
test (DUT) using the supplied SMA to SSMC adapter cable.

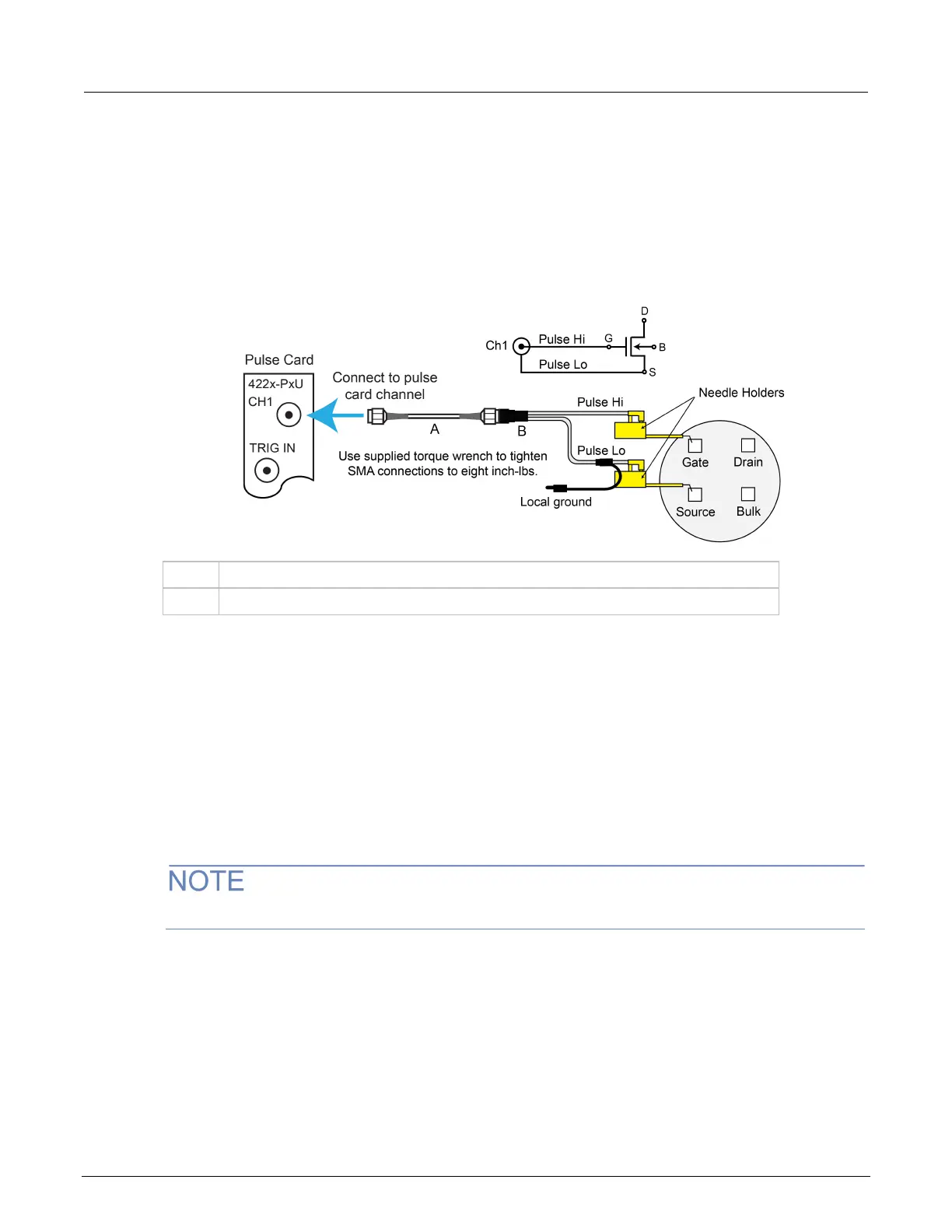

Figure 16: Pulse card connections using the SMA to dual SSMC adapter cable
A
White SMA cable (2 m (6.5 ft), included with the PGU and PMU)
B
SMA to SSMC Adapter Cable (4200-PRB-C, included with the PGU and PMU)
The needle holders shown in the previous figure are supplied by the user.
Connections to prober or test fixture bulkhead connectors
The 4200-PMU-Prober-Kit (available from Keithley Instruments) is a collection of standard and
custom connectors and accessories used to connect the pulse generator to a common variety of
probe stations. This kit can also be used for pulse card connections to a test fixture.
The following figure shows an example of how a PMU or PGU can be connected to a triaxial
connector of a prober or test fixture.
If connecting to a prober or test fixture that uses BNC connectors, adapter C is not used.
