-SCS Pulse Card (PGU and PMU) User's Manual Section 6:
Use the RPM to switch the SMU, CVU, and PMU
4200A-PMU-900-01 Rev. B March 2023 6-13
If you are including cable compensation values, run the Tools menu option CVU Connection
Compensation. Refer to “Perform offset compensation” in the Model 4200A-SCS
Capacitance-Voltage Unit (CVU) User's Manual for more detail.
Configure the pulse-diode test
To configure the pulse-diode test:
1. In the project tree, select the pulse-diode test.
2. From the Key Parameters pane, change the Cathode terminal setting from PMU1-GND to
PMU1-2, as shown in the following figure.
3. Adjust the pulse operation as needed.

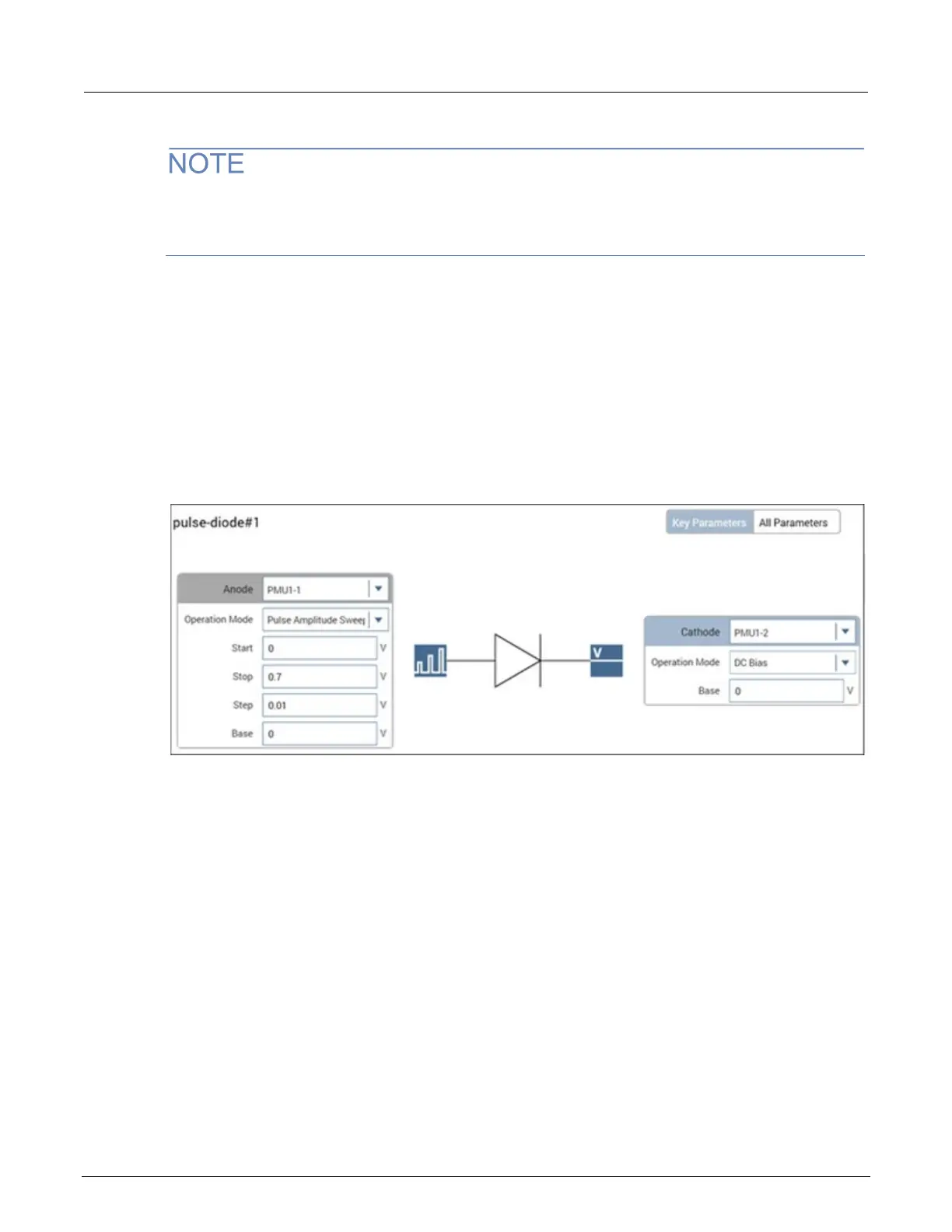

Figure 135: Key Parameters pane for the pulse-diode test
4. Select the Anode terminal.
5. Select Terminal Settings.
6. Select Advanced to configure the measurements as needed, including spot mean, PMU
compensation, and PMU threshold levels.
