6: Use the RPM to switch the SMU, CVU, and PMU Model 4200A-SCS Pulse Card (PGU and PMU)
6-12 4200A-PMU-900-01 Rev. B March 2023

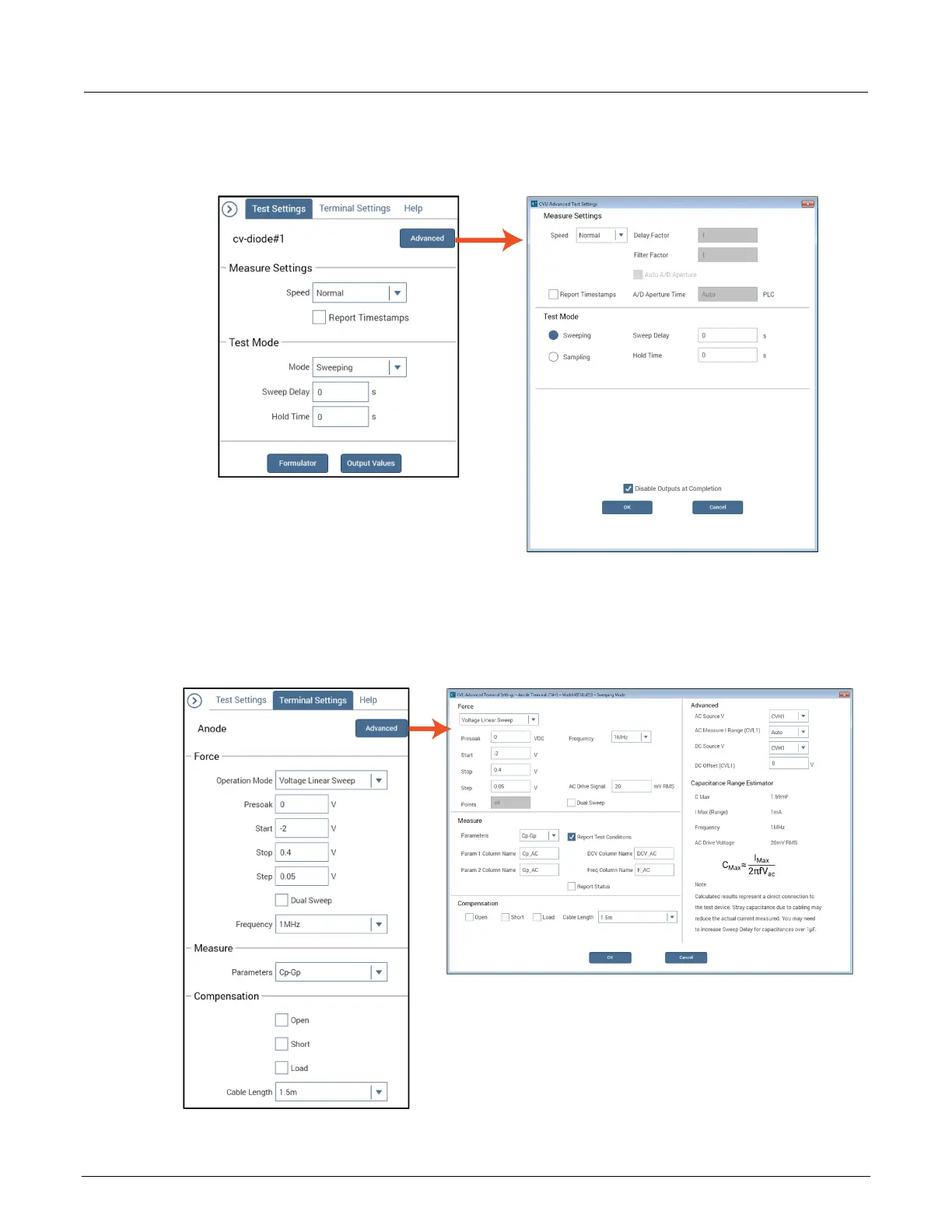

Figure 133: Test Settings pane and the Test Settings Advanced and Formulator dialog boxes
for the cv-diode sweep test
5. On the Terminal Settings pane and the Terminal Settings Advanced dialog of the Anode terminal,
adjust the parameters.
Figure 134: Terminal Settings pane and the Terminal Settings Advanced dialog for the
cv-diode sweep test
