The example below illustrates connections from the RPMs to the SMA to SSMC adapter cables
(4200-PRB-C) and then to the probes and device terminals on a wafer.
This connection method eliminates triaxial guard (inner shield).

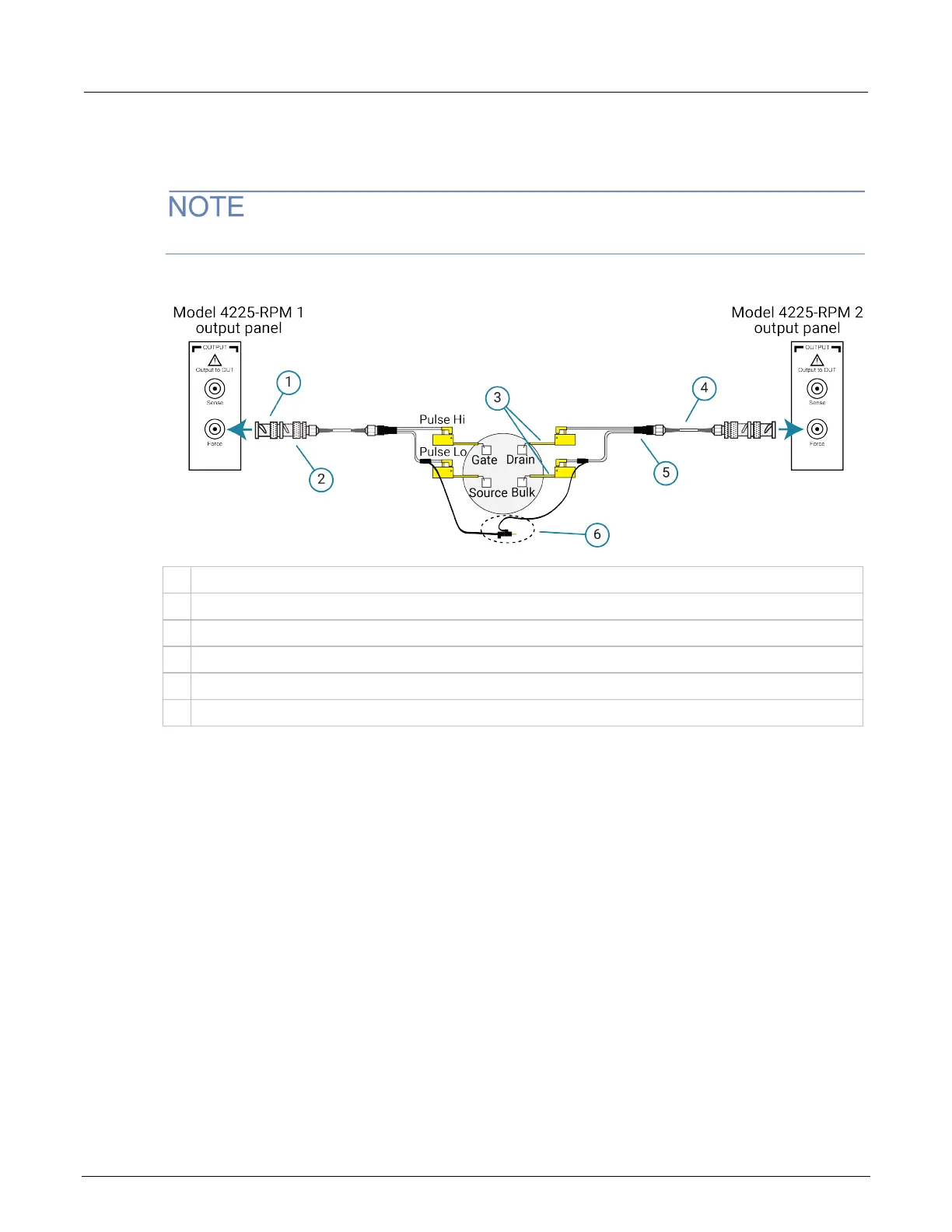

Figure 142: Connections from RPM outputs to the MOSFET on a wafer
1
Triaxial to BNC adapter.
2
BNC to SMA adapter.
3
Needle holders.
4
SMA to SMA cable.
5
SMA to SSMC adapter cable.
6
When using more than one SMA to SSMC adapter cable, make sure that all local grounds are connected.
Set up the measurements in Clarius
This section describes how to set up the Clarius application to make a pulsed I-V sweep on
a MOSFET.
For this example, you use the Clarius application to:
• Create a new project
• Search for and select an existing test
• Configure the test
• Run the test and analyze the results
