-SCS Pulse Card (PGU and PMU) User's Manual Section 7: PMU for pulsed I-
V measurements on a MOSFET
4200A-PMU-900-01 Rev. B March 2023 7-7

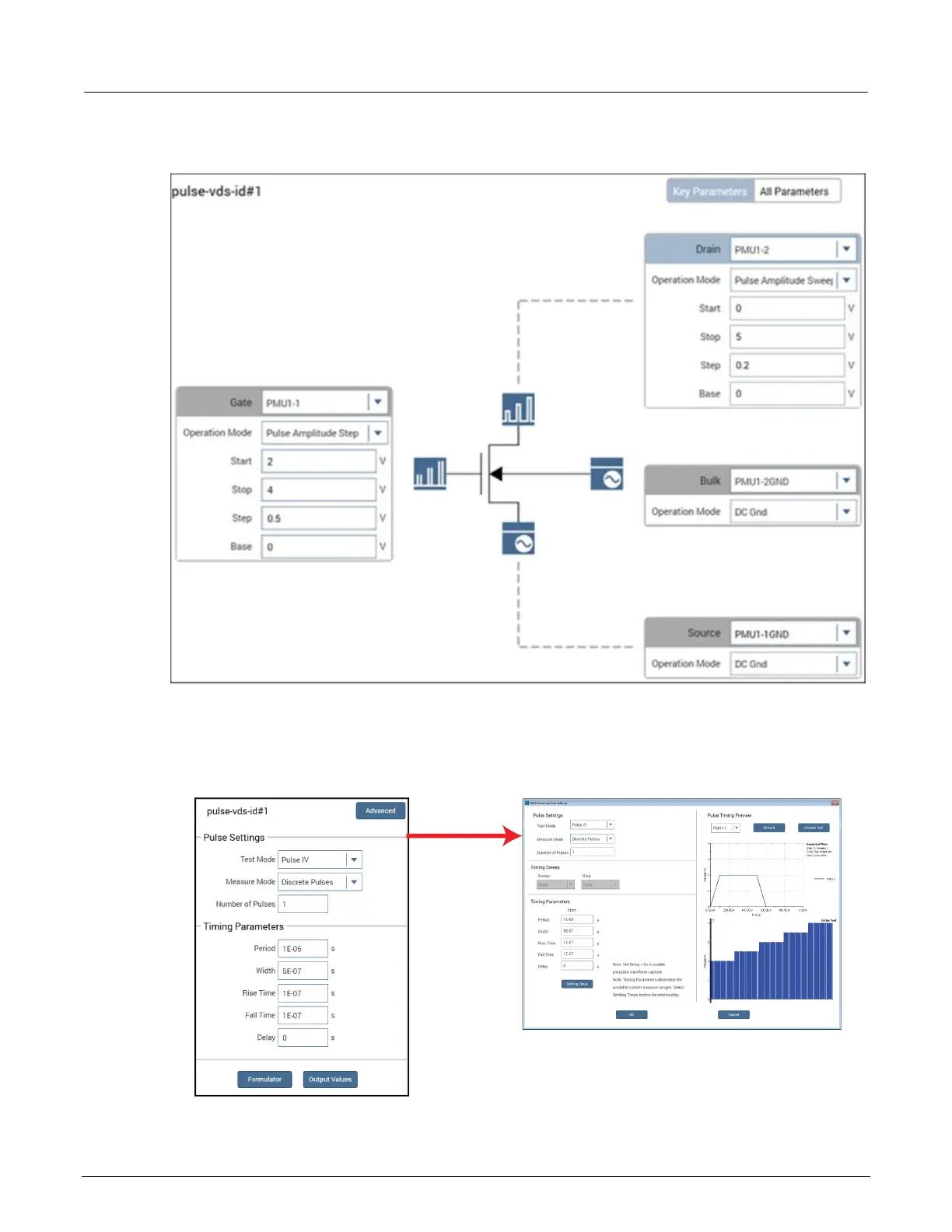

Figure 146: Key Parameters pane for the pulse-vds-id test
3. From the Test Settings pane and Advanced Test Settings dialog, adjust the Pulse Settings and
Timing Parameters as needed.
Figure 147: Test Settings pane and Test Settings Advanced dialog
