3: Setting up PMUs and PGUs in Clarius Model 4200A-SCS Pulse Card (PGU and PMU)
3-4 4200A-PMU-900-01 Rev. B March 2023
3. From the Test Settings pane and Advanced Test Settings dialog, adjust the Pulse Settings and
Timing Parameters as needed.

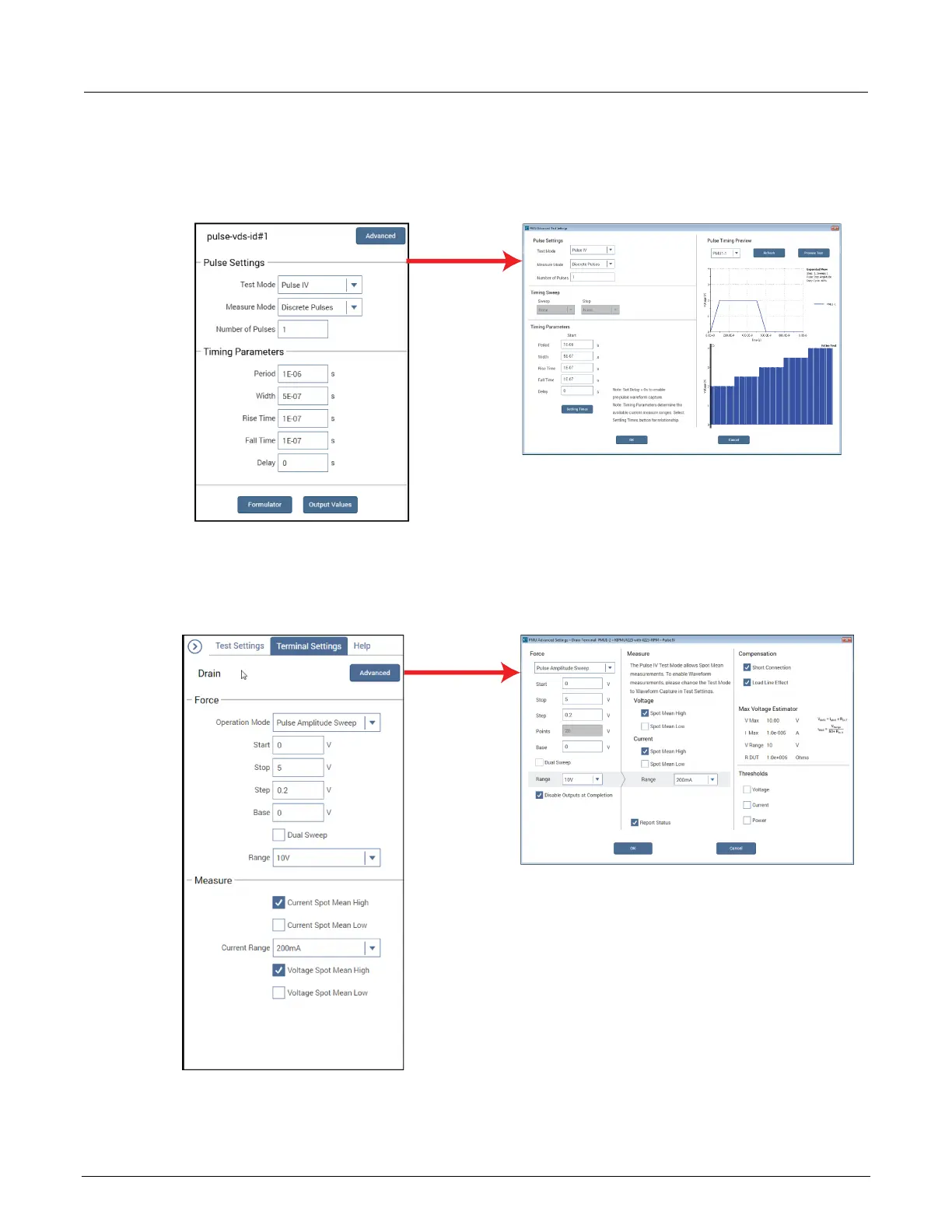

Figure 30: Test Settings pane and Test Settings Advanced dialog
4. From the Terminal Settings pane and Advanced Terminal Settings dialog, you can adjust the
voltage source and current measurement parameters, as needed.
Figure 31: Terminal Settings pane and Terminal Settings Advanced dialog
