5: KPulse (for Keithley Pulse Cards) Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
5-18 4200A-PMU-900-01 Rev. B March 2023

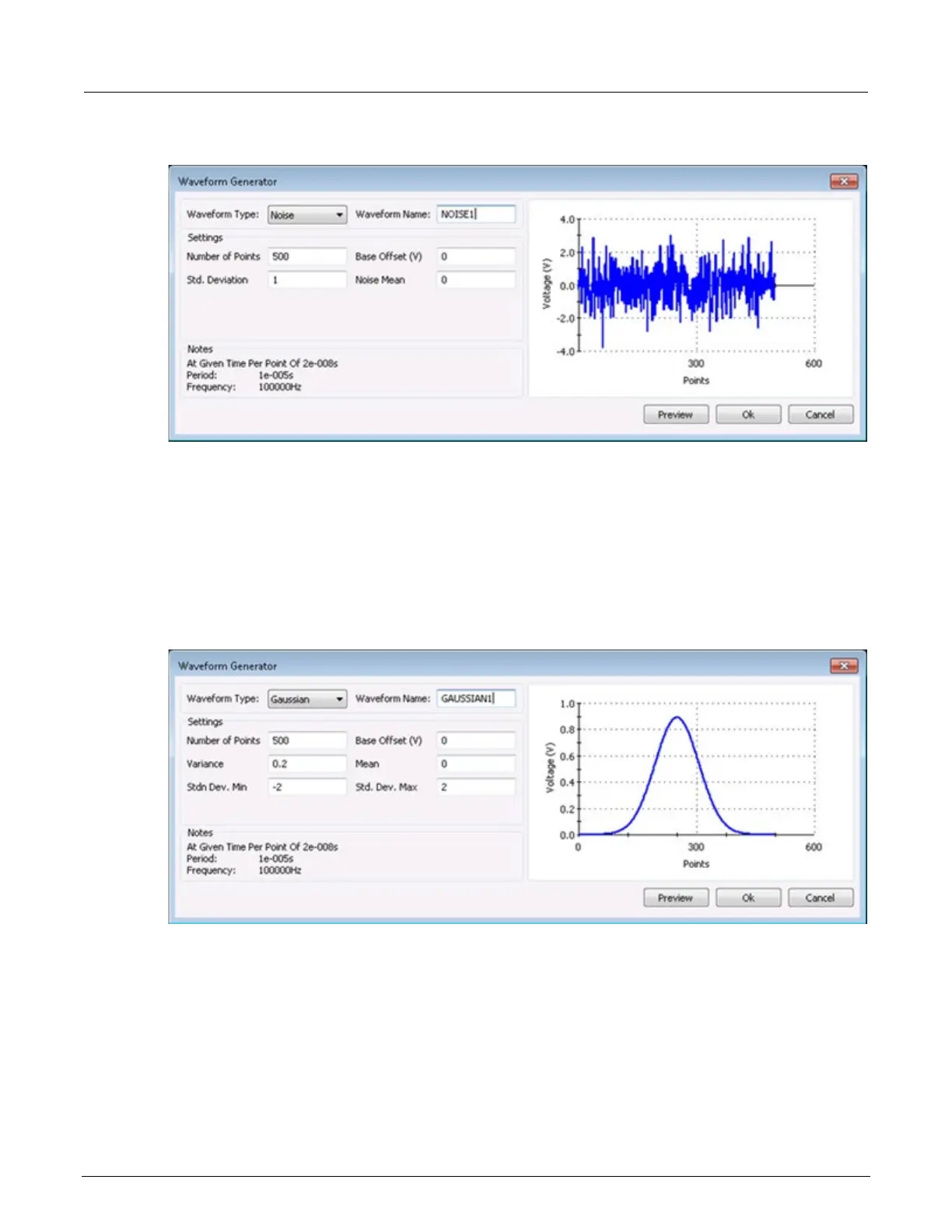

Figure 114: Noise waveform
Gaussian waveform
An example of a Gaussian waveform is shown in the following figure. The waveform for this example
is named GAUSSIAN1, but can be any name that is not already used in the Scratch Pad.
After changing one or more settings, select Preview to display the waveform. Select OK to place the
waveform in the Scratch Pad.
Figure 115: Gaussian waveform
