Section
6: Use the RPM to switch the SMU, CVU, and PMU Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
6-16 4200A-PMU-900-01 Rev. B March 2023
Select a test from the project tree to display its results. The data for the vfd test is displayed in the
following figure. Both the data and the graph are displayed in this view.

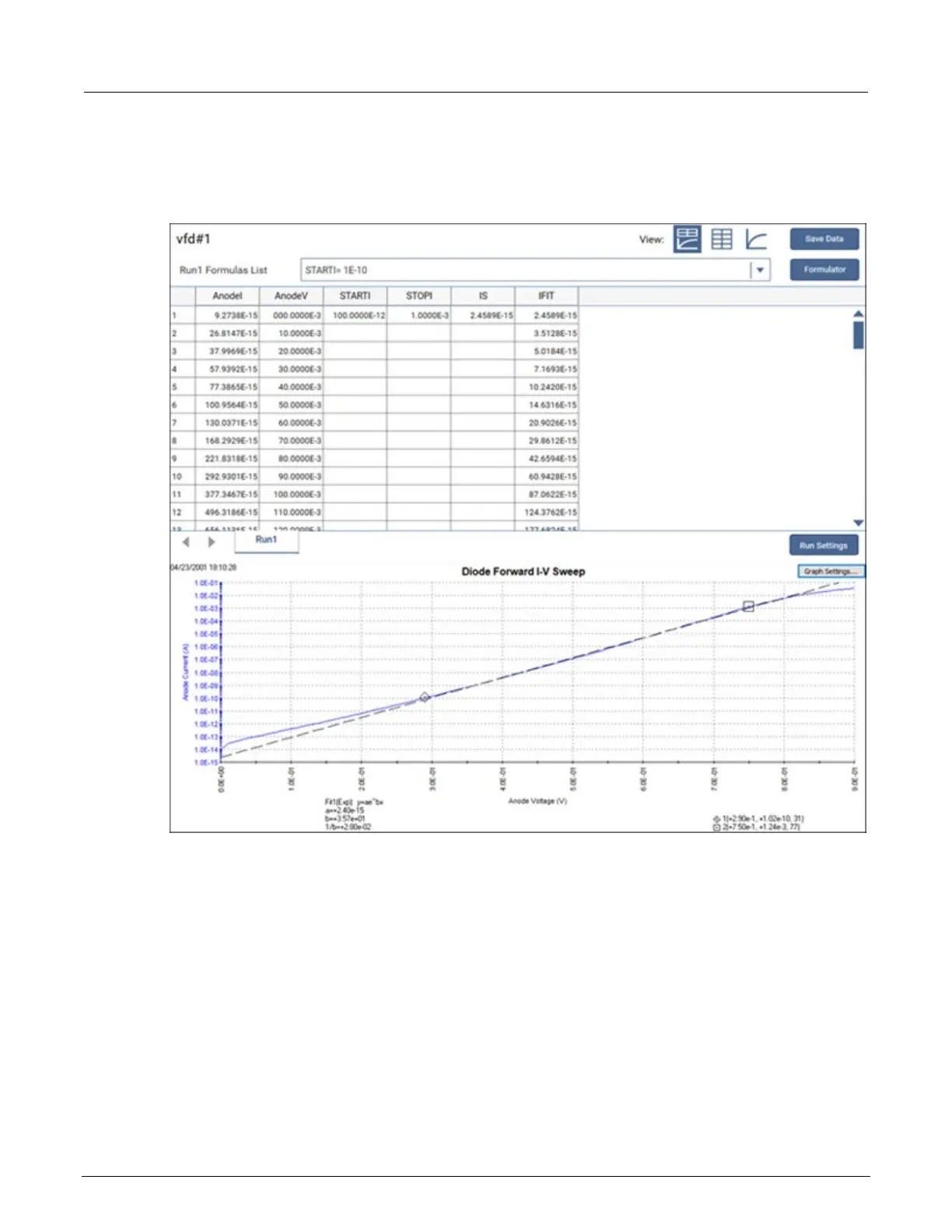

Figure 140: Analyze showing the vfd test
