Section
8: Testing flash memory Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
8-10 4200A-PMU-900-01 Rev. B March 2023

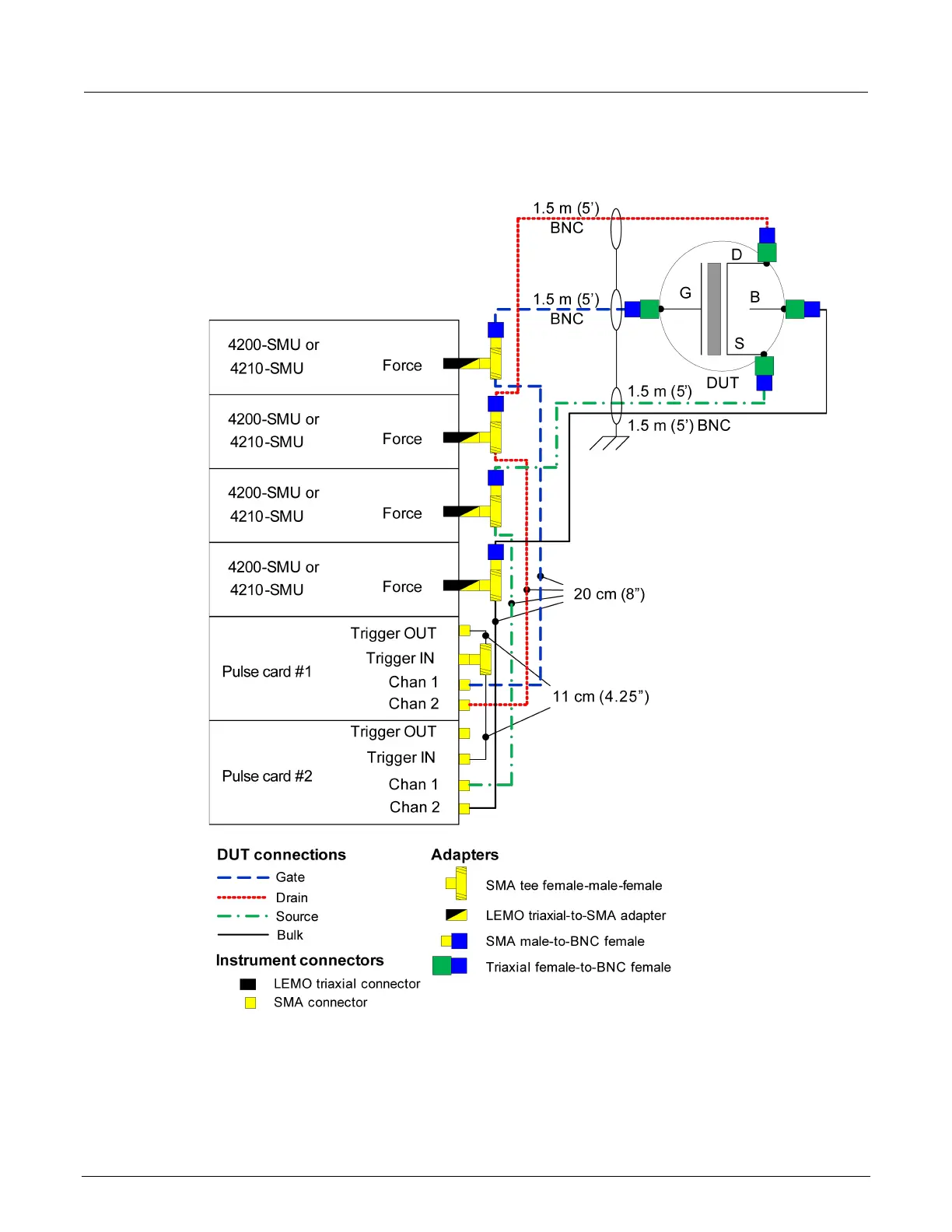

Figure 163: Flash connections - program erase and endurance testing using direct connection
to a single stand-alone 4-terminal device
