-SCS Pulse Card (PGU and PMU) User's Manual Section 8:
4200A-PMU-900-01 Rev. B March 2023 8-15
You will export the waveforms, which you can import into the Clarius Configure pane for the subsite
when Segment Stress/Measure Mode is selected.
Each segment pulse waveform must have the same total time. The minimum programmed time for
any segment is 20 ns (20E-9 s), but actual output waveform performance is determined by the
channel output capability.
To use KPulse to create and export Segment Arb waveforms:
1. If they are open, close Clarius and KCon.
2. Open KPulse.
3. Select File > Load Setup.
4. Select Kpulse_Flash_Example_01.kps.
5. Select Open.
6. Select Edit Segarb. This opens the edit dialog for both channels. You can use copy and paste to
copy information between the channels.
7. Note that the trigger is set to 1 in the first and fifth segments. These are the first segments in the
program and erase pulses in a typical two pulse program/erase waveform. It is recommended
that you set trigger to 1 for the first segment of each pulse in a waveform.
8. For each unique waveform, export each to a file as described below.
To export a Segment Arb waveform file:
1. Select Tools.
2. Select Export Segment Arb to open the Segment Arb Export dialog.

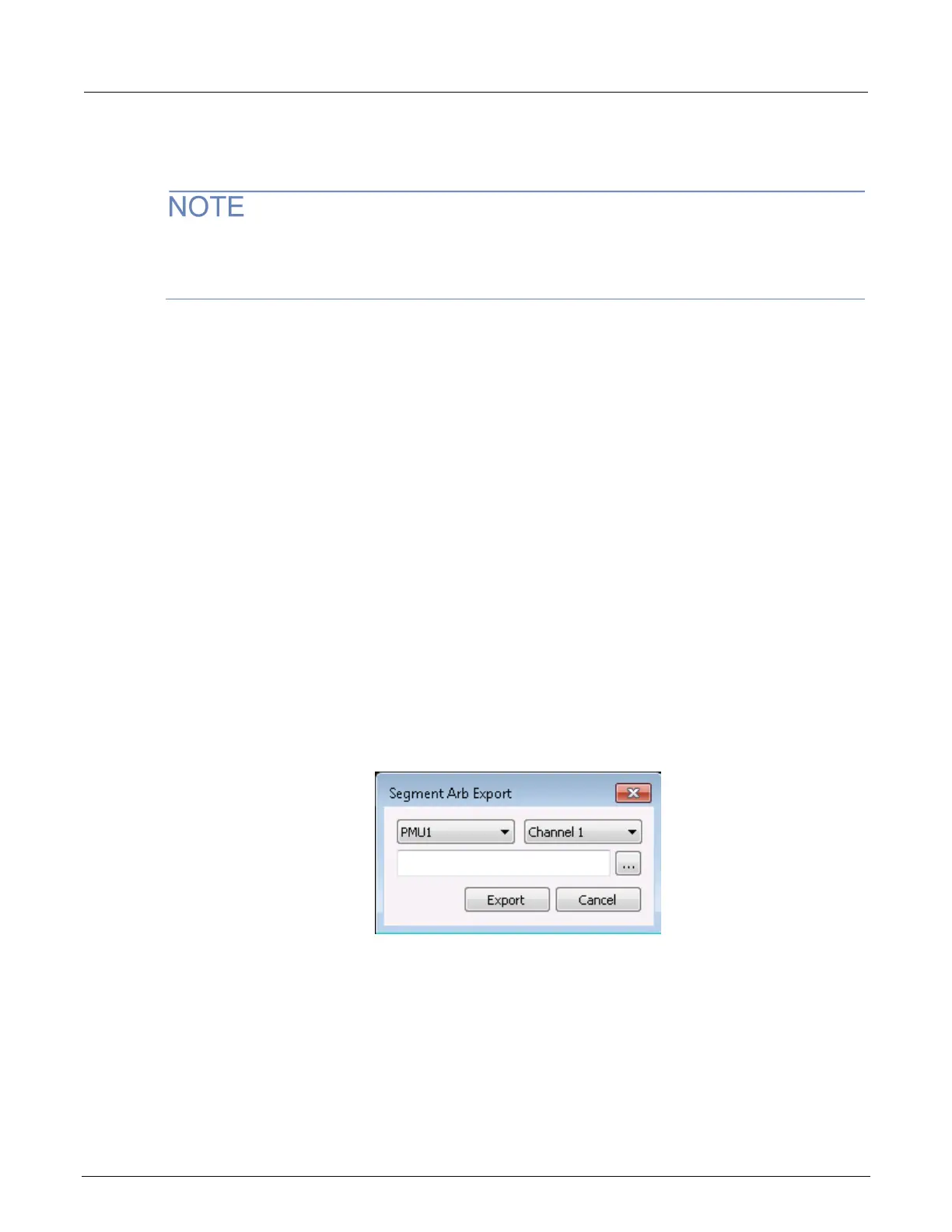

Figure 167: Segment Arb Export dialog
3. Select the pulse card and channel for the waveform to be exported.
4. Select ....
5. Locate the target folder.
6. Type a name for the file. The .ksf extension is added automatically.
7. Select Open.
8. Select Export.
