2: Connections Model 4200A-SCS Pulse Card (PGU and PMU)
User's Manual
2-14 4200A-PMU-900-01 Rev. B March 2023
The following illustrates the connection to a 4-terminal device using the cabling and adapters that are
included with either RPM or the 4225-PMU.

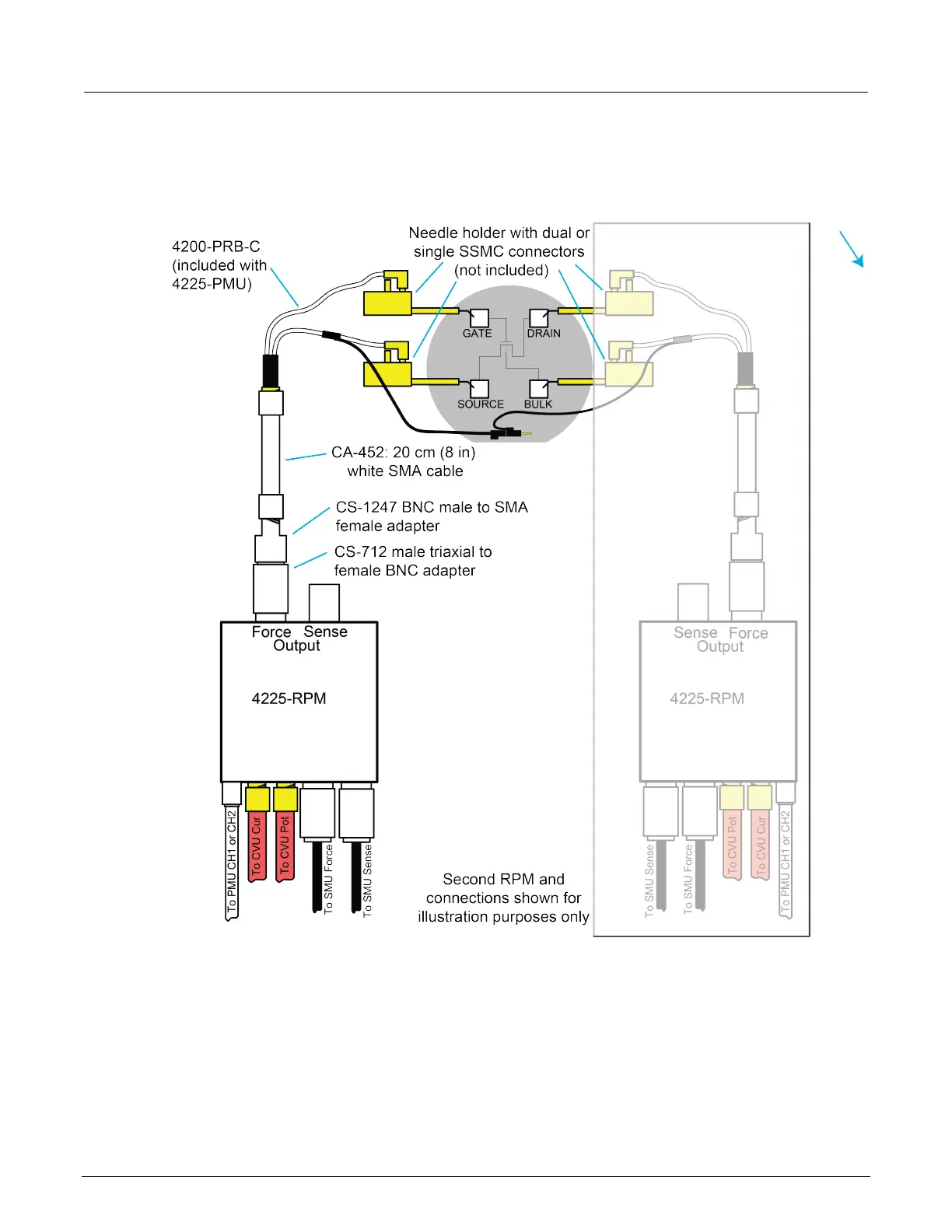

Figure 14: RPM output connection to 4-terminal device
