-SCS Pulse Card (PGU and PMU) User's Manual Section 2:
4200A-PMU-900-01 Rev. B March 2023 2-19

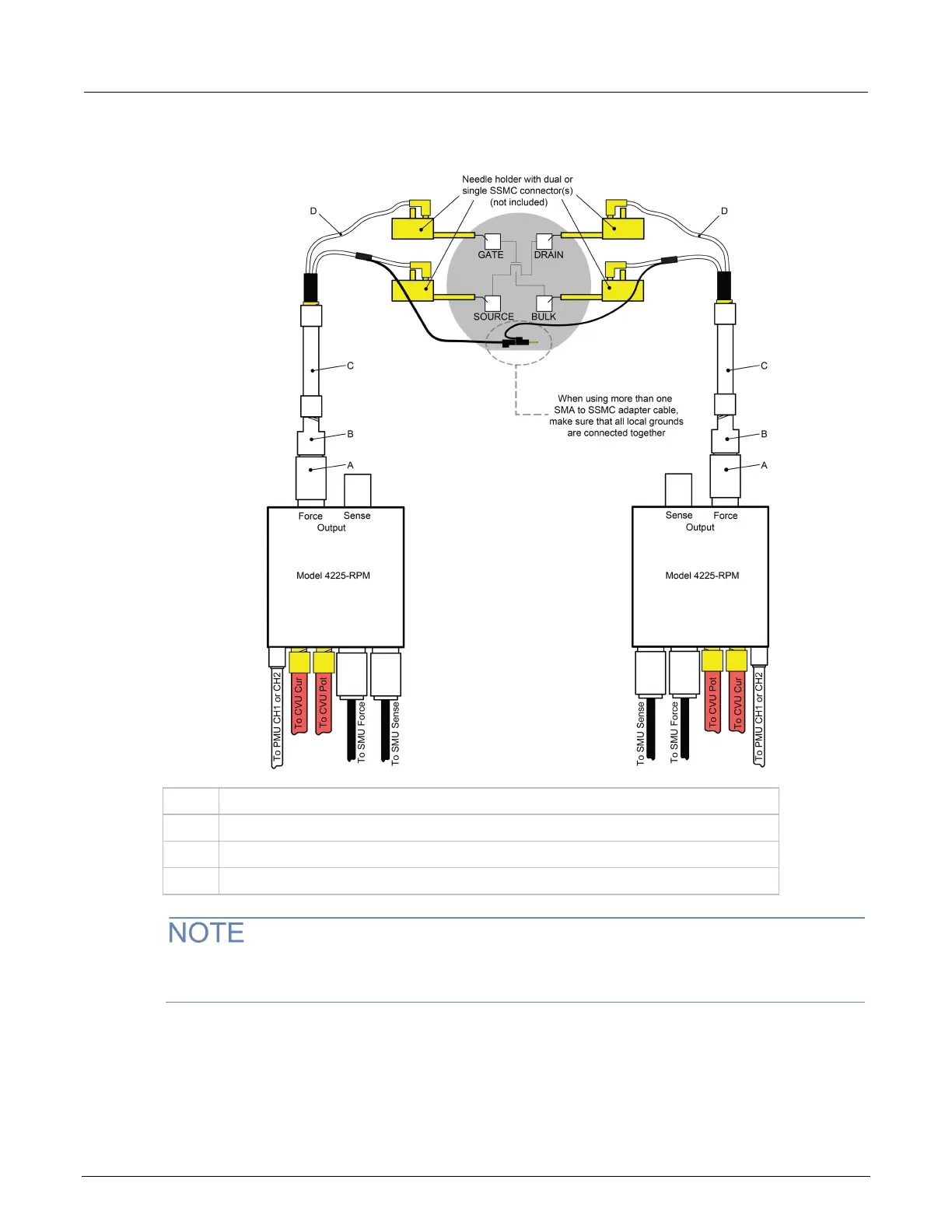

Figure 19: RPM connections to a prober
A
Triaxial plug-to-BNC socket adapter (supplied with the RPM)
B
BNC plug-to-SMA socket adapter (supplied with the RPM)
C
White SMA cable (20.32 cm (8 in.), supplied with the RPM)
D
SMA-to-SSMC Adapter Cable (4200-PRB-C, supplied with the PMU)
For details on using these prober cable kits, refer to PA-1000 for the Suss prober, PA-1001 for the
Cascade prober, PA-1080 for the Lucas Signatone prober, and PA-1085 for the Wentworth prober.
