-SCS Pulse Card (PGU and PMU) User's Manual Section 3:
Setting up PMUs and PGUs in Clarius
4200A-PMU-900-01 Rev. B March 2023 3-13

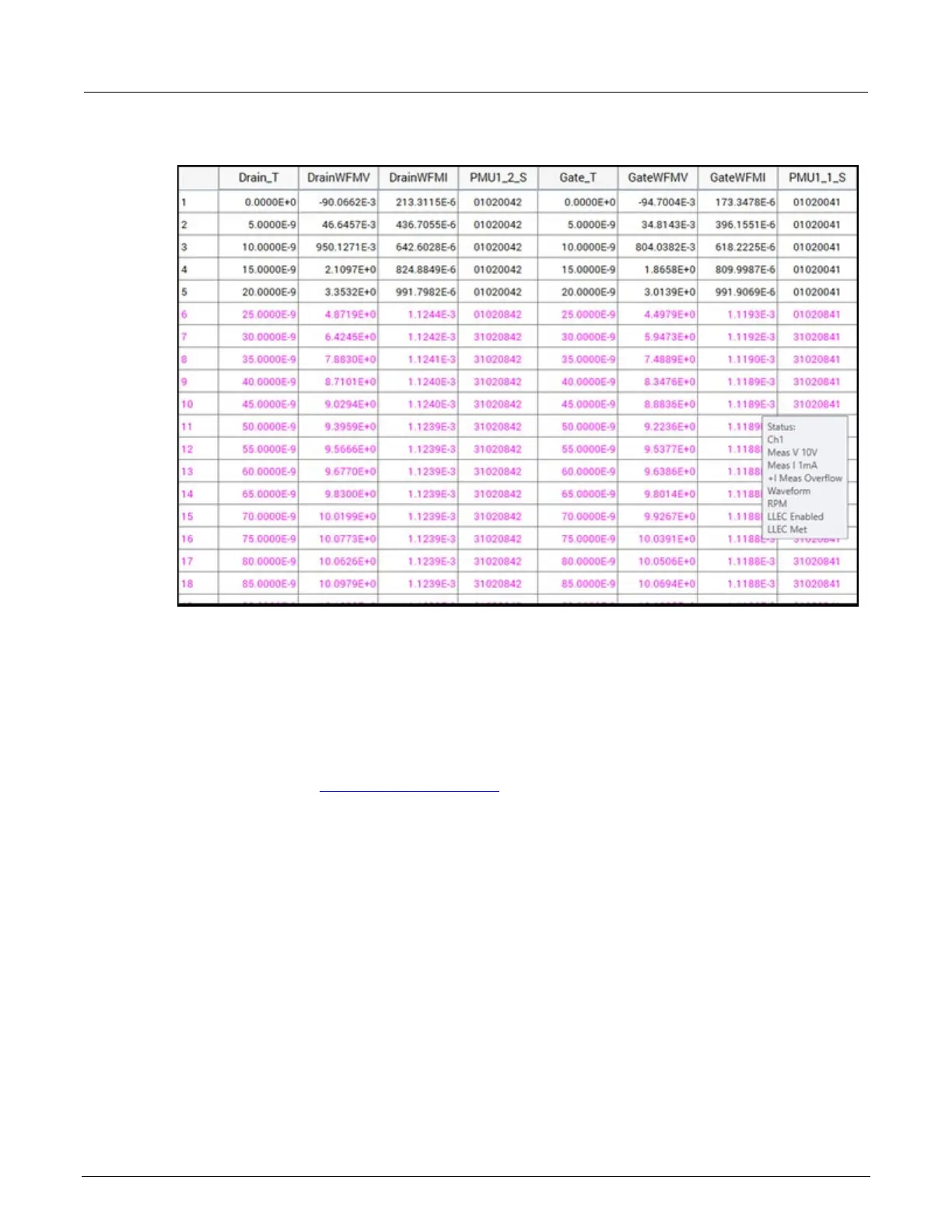

Figure 41: Status tab showing faults
Status codes
Each measurement includes an 8-digit status code. Assign the following letters to the code and use
the following table to determine status:
A B C D E F G H
In the figure shown in PMU measurement status (on page 3-12
), the circled status code is 11010021:
A. 1 = LLEC failed, sweep not skipped (yellow indicates that LLEC failed)
B. 1 = RPM being used
C. 0 = Not applicable (always 0)
D. 1 = Spot mean measurement type
E. 0 = Source not in compliance, no threshold reached
F. 0 = No measurement overflows
G. 2 = 10 μA measure range
H. 1 = Channel 1, 10 V measure range
