Setting up PMUs and PGUs in Clarius
4200A-PMU-900-01 Rev. B March 2023 3-19
Figure 45: Pulse IV - Discrete pulses
Waveform Capture (Discrete Pulses) measurement example

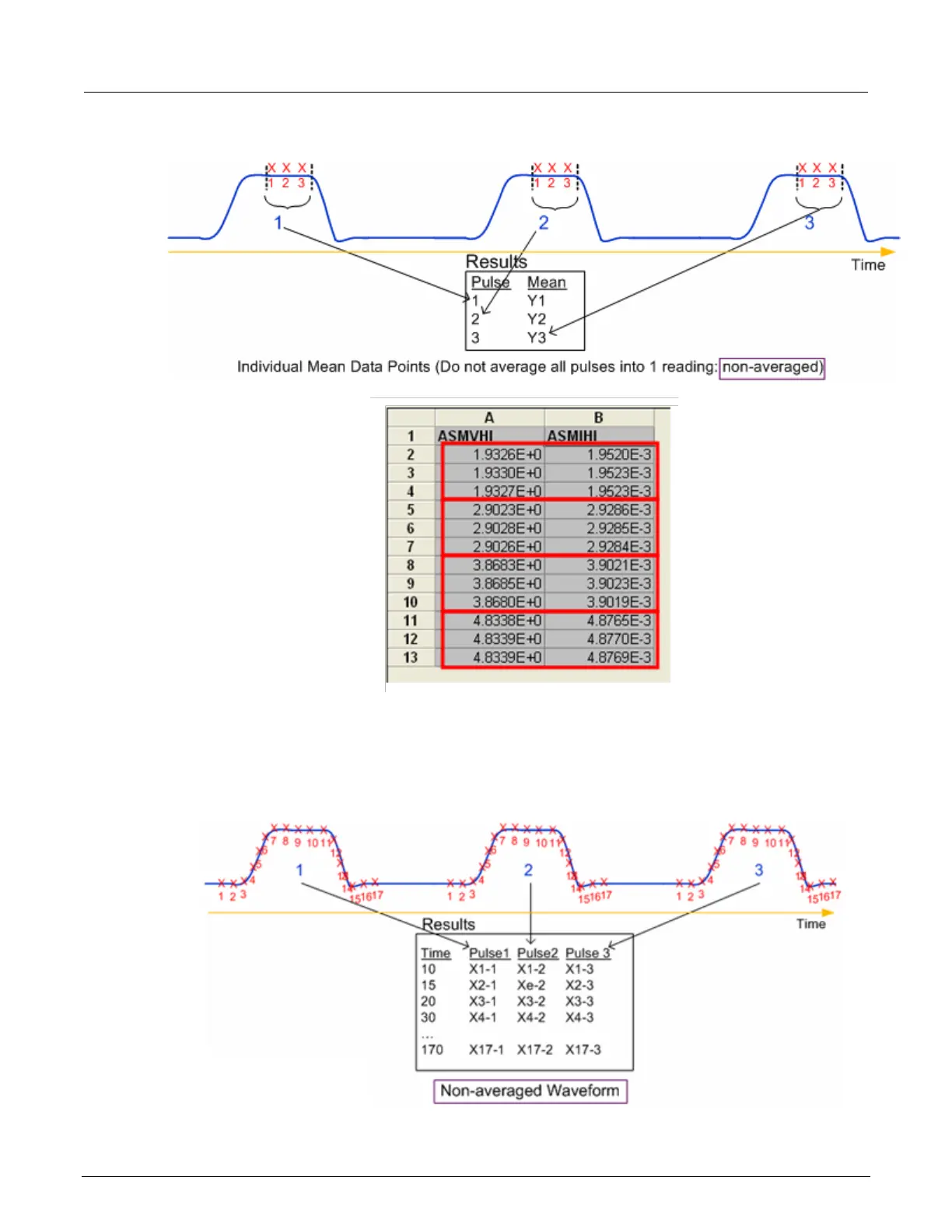

For the example shown in the following figure, the samples of three pulses are captured. The 51
samples (17 samples x 3 pulses) are placed in the Analyze sheet.
Figure 46: Waveform capture - Discrete pulses
