Tenda i9 User Manual

84

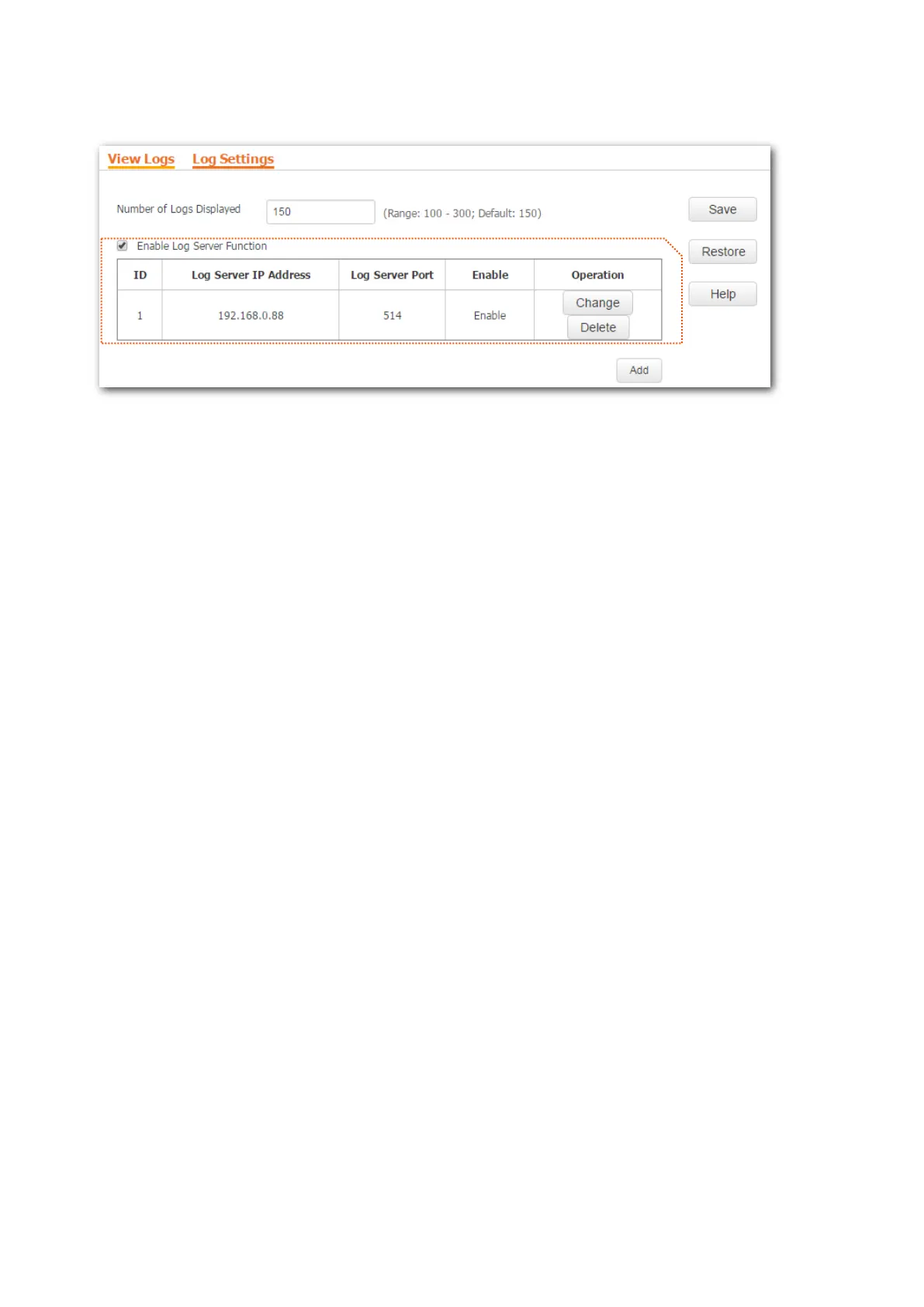

The following figure shows the configuration.
Procedure for changing log server settings
Step 1 To access the page, choose Tools > Logs and click Log Settings.
Step 2 Click Change corresponding to the log server settings to be changed.
Step 3 Change the parameter settings as required.
Step 4 Click Save.
--End
Procedure for deleting log server settings
Step 1 To access the page, choose Tools > Logs and click Log Settings.
Step 2 Click Delete corresponding to the log server settings to be deleted.
--End

Tenda i9 Specifications

General

5 GHz	No
2.4 GHz	Yes
Bandwidth	24 GHz
Channel bandwidth	533 MHz
Transmitting power	20 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	-
Placement	Ceiling, Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	System
Output current	1 A
Output voltage	12 V
Power consumption (max)	8 W
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported	4
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antennas quantity	2
Antenna gain level (max)	2 dBi
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	184 mm
Height	38 mm
