User Manual for Oscar GNSS Receiver v2.4

101

can be chosen from auto start and manual start. If you choose manual

start the base, you can manually type the base coordinate, or click the

location icon to obtain the current base coordinate, or select a point from

the control point library. The data link has four options: Receiver Network,

PDA Network, Internal Radio and External Radio. Both the Receiver

Network and PDA Network have three protocol options: Tersus Caster

Service (TCS), Ntrip and TCP.

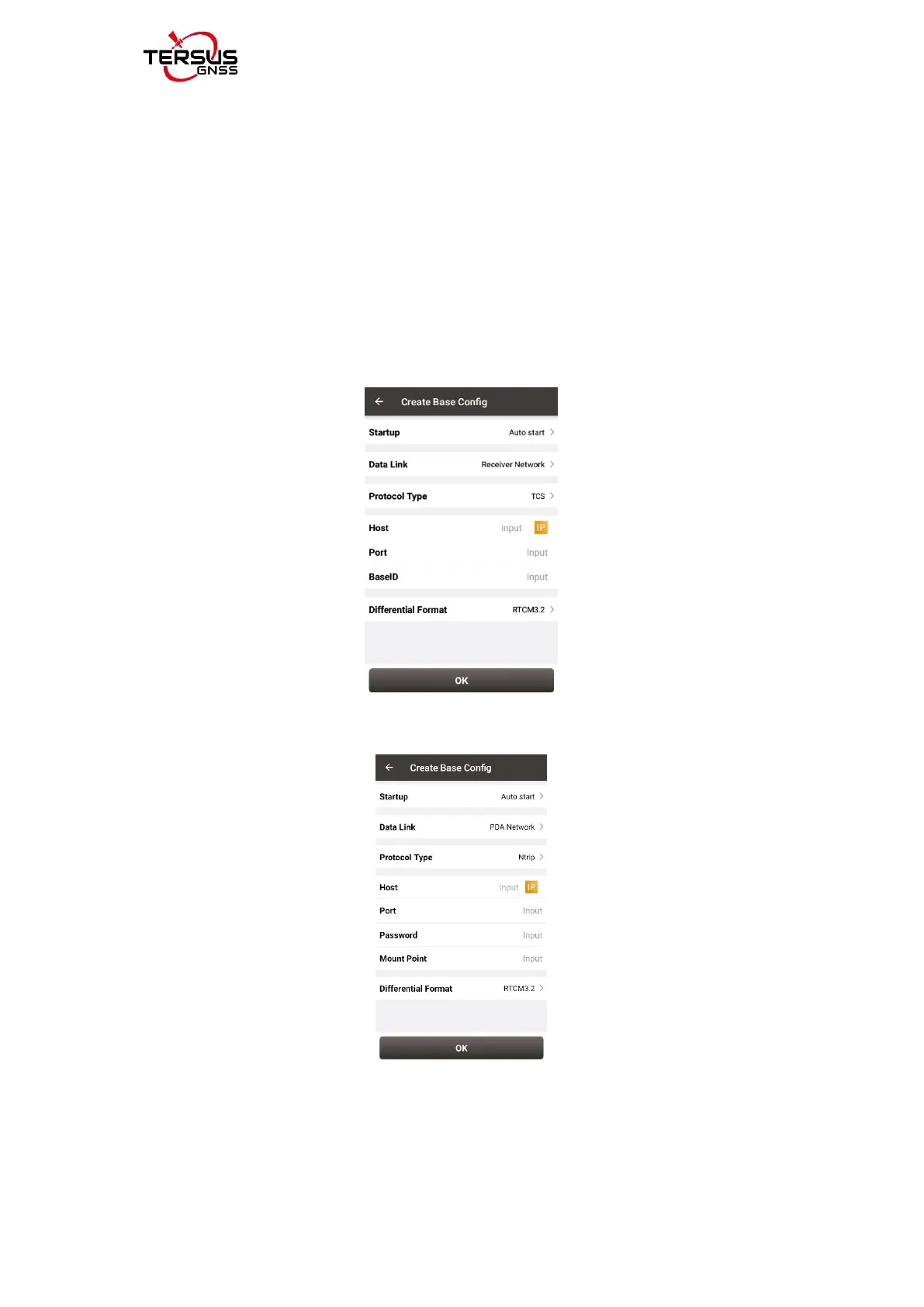

Figure 4.5 Base configuration - Receiver Network (TCS)

Figure 4.6 Base configuration – PDA Network (Ntrip)
