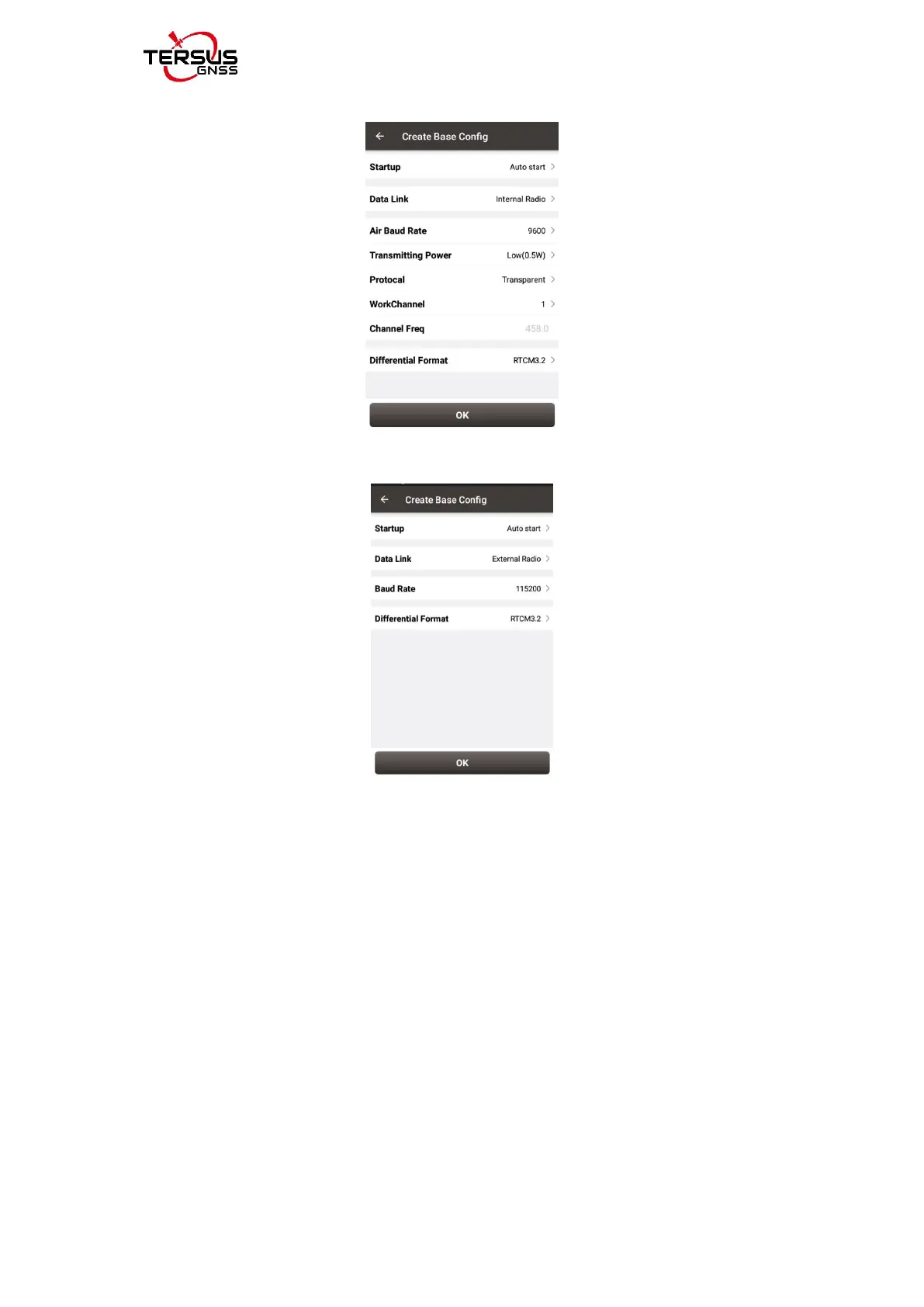

Figure 4.7 Base configuration - Internal Radio

Figure 4.8 Base configuration - External Radio

9. After filling the information for the above configuration, click [OK]. Select

this configuration in the work mode list and click [Start] to start data

transmission for base which is shown as below.
