User Manual for Oscar GNSS Receiver v2.4

When upgrading firmware with a wire, you need a Mini-USB OTG cable. The

detailed usage refers to section 2.4.1.

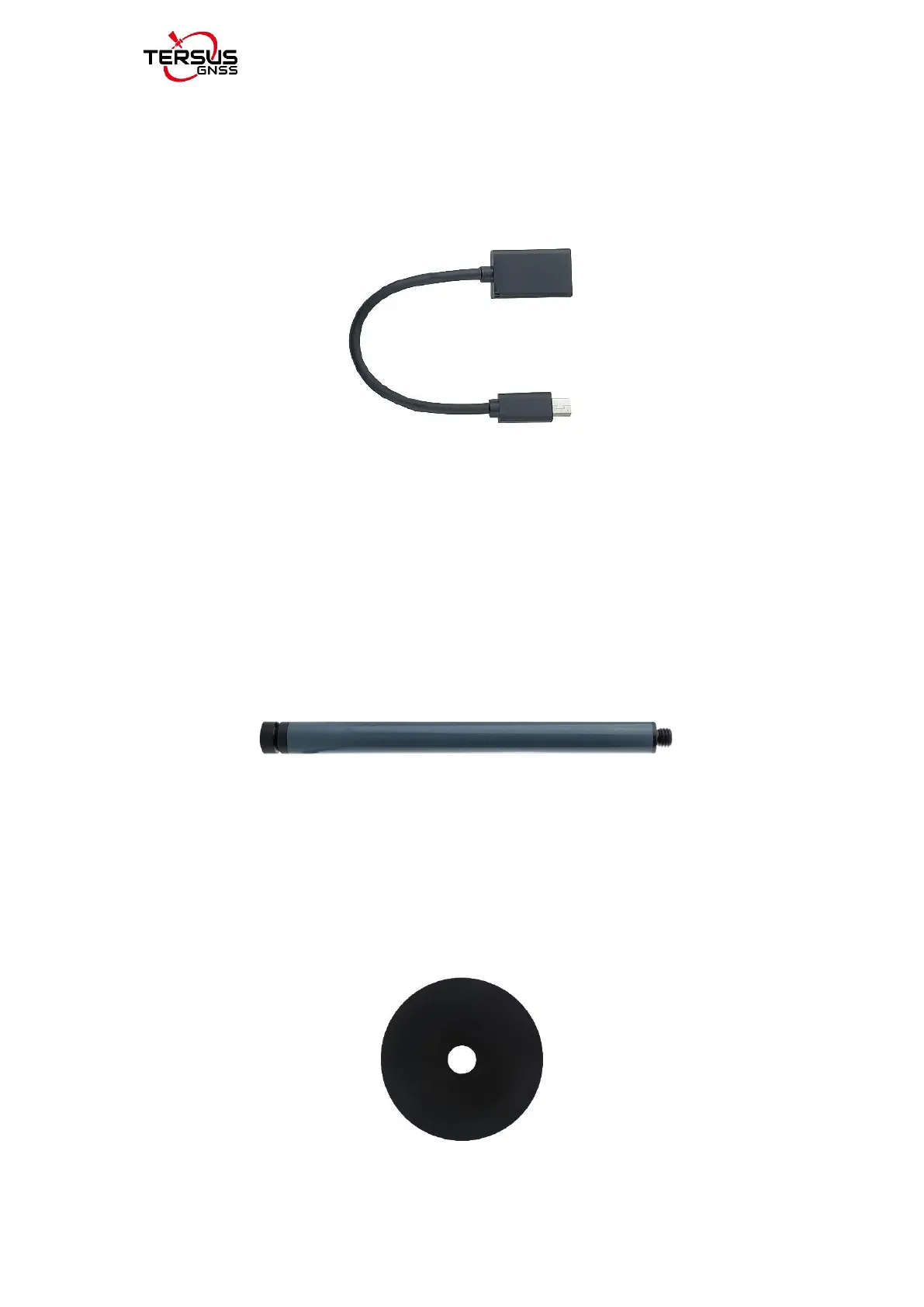

Figure 1.29 Mini-USB OTG cable

When installing 410-470MHz radio whip antenna on Oscar, it is necessary to

use a 30cm extension pole to heighten Oscar and avoid bending the

410-470MHz radio whip antenna.

Figure 1.30 Extension pole 30cm

This metal fixing plate is used to fixate the high gain radio antenna to the

tripod.

Figure 1.31 Metal fixing plate
